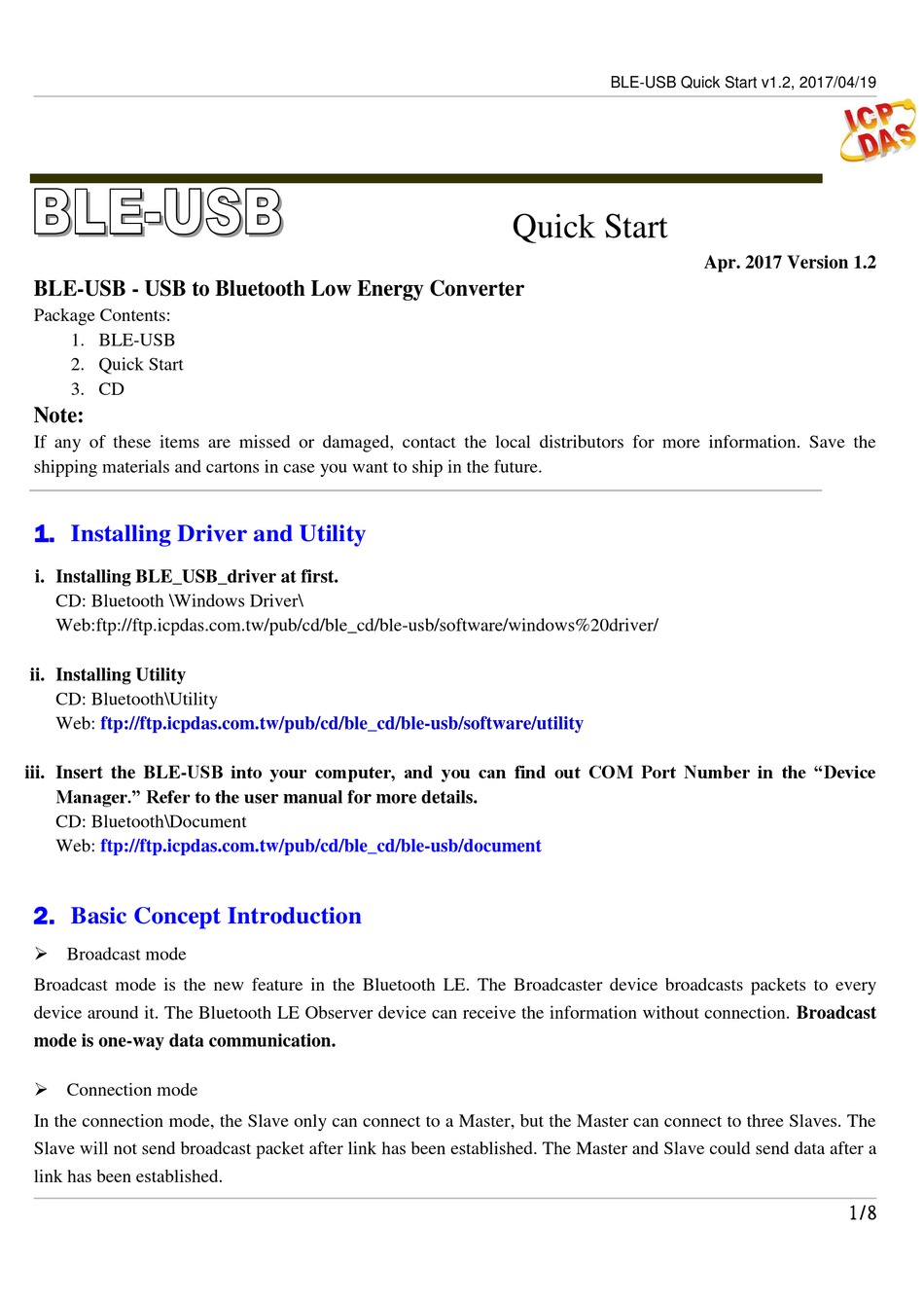

BLE-USB - USB to Bluetooth Low Energy Converter
Package Contents:
1. BLE-USB

2. Quick Start

3. CD
Note:
If any of these items are missed or damaged, contact the local distributors for more information. Save the
shipping materials and cartons in case you want to ship in the future.

1. Installing Driver and Utility

i. Installing BLE_USB_driver at first.
CD: Bluetooth \Windows Driver\
Web:ftp://ftp.icpdas.com.tw/pub/cd/ble_cd/ble-usb/software/windows%20driver/
ii. Installing Utility
CD: Bluetooth\Utility
Web:
ftp://ftp.icpdas.com.tw/pub/cd/ble_cd/ble-usb/software/utility
iii. Insert the BLE-USB into your computer, and you can find out COM Port Number in the "Device
Manager." Refer to the user manual for more details.
CD: Bluetooth\Document
Web:
ftp://ftp.icpdas.com.tw/pub/cd/ble_cd/ble-usb/document

2. Basic Concept Introduction

 Broadcast mode
Broadcast mode is the new feature in the Bluetooth LE. The Broadcaster device broadcasts packets to every
device around it. The Bluetooth LE Observer device can receive the information without connection. Broadcast
mode is one-way data communication.
 Connection mode
In the connection mode, the Slave only can connect to a Master, but the Master can connect to three Slaves. The
Slave will not send broadcast packet after link has been established. The Master and Slave could send data after a
link has been established.
BLE-USB Quick Start v1.2, 2017/04/19
Quick Start
Apr. 2017 Version 1.2
1/8
