Page 1

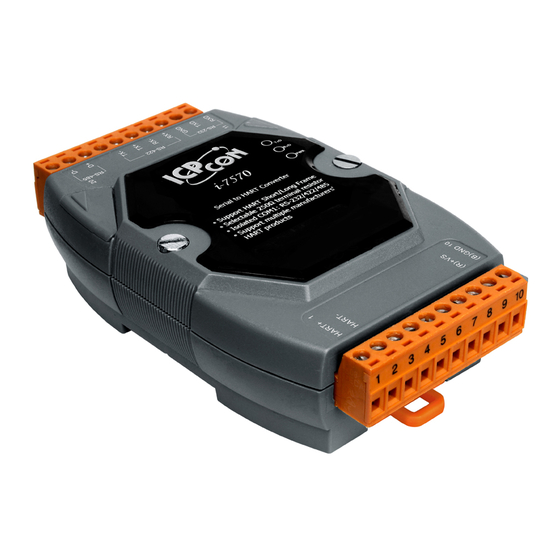

I-7570 module quickly and easily. We use an I-7570 (as a HART master), one HART slave and one PC to make a simple application here, as shown in Figure 1. The PC is prepared for setting and operating the I-7570.
Page 2
Resistor [ Step3: Open or close the T There is a Jumper (JP4) at the I-7570 module, as shown in Figure 2-4. The jumper can provide HART network with 250 Ω (1/4 W) resistor. When the pin 1&2 of JP4 is closed, the resistor will connect to HART network.
Page 3
[ Step4: HART bus connection ] Connect the HART port of the I-7570 to HART Device. I-7570 Serial to HART Converter Quick Start (Ver 1.0, Aug/2011) --- 3 You created this PDF from an application that is not licensed to print to novaPDF printer (http://www.novapdf.com)
Page 4
3. Using I-7570 Utility Step1: Set the pin 2&3 of JP4 closed and turn on the DC power. The PWR LED of the I-7570 will be always turned on. It means the I- 7570 converter is working in the “Firmware Operation” mode.
Page 5
“settings” screen like Figure 3-3. Figure 3-3: Click the “Open” button Step5: Connect the I-7570 to HART device with HART bus, then click the “Start” button to search the HART devices. The users can see the “Information” to understand the status of HART device.
Page 6
I-7570 Serial to HART Converter Quick Start (Ver 1.0, Aug/2011) --- 6 You created this PDF from an application that is not licensed to print to novaPDF printer (http://www.novapdf.com)
