Wiring
3.2

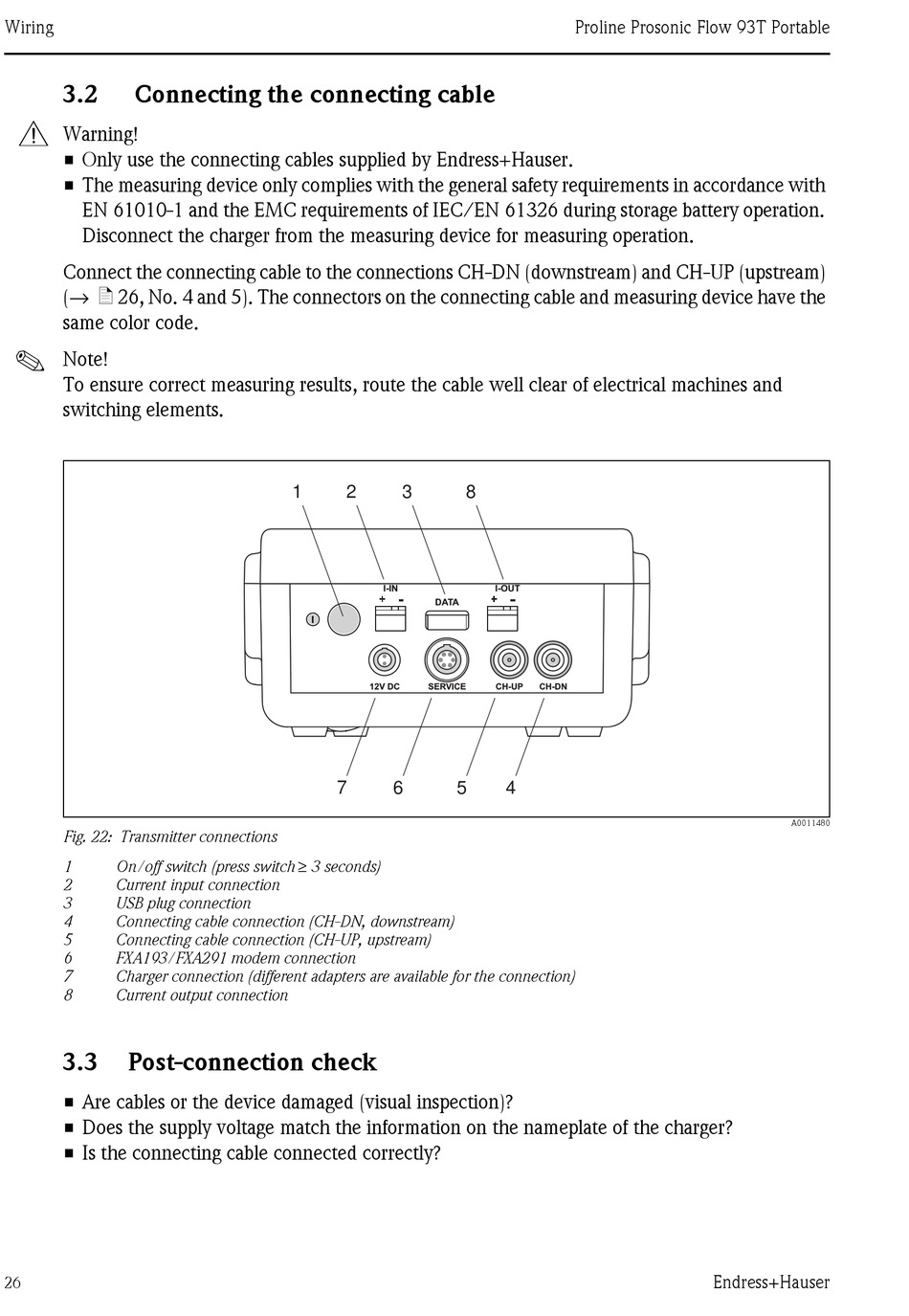

Connecting the connecting cable

#
Warning!
• Only use the connecting cables supplied by Endress+Hauser.
• The measuring device only complies with the general safety requirements in accordance with
EN 61010-1 and the EMC requirements of IEC/EN 61326 during storage battery operation.
Disconnect the charger from the measuring device for measuring operation.
Connect the connecting cable to the connections CH-DN (downstream) and CH-UP (upstream)
(→ ä 26, No. 4 and 5). The connectors on the connecting cable and measuring device have the
same color code.
!
Note!
To ensure correct measuring results, route the cable well clear of electrical machines and
switching elements.
Fig. 22: Transmitter connections
On/off switch (press switch ≥ 3 seconds)
1
2 Current input connection
3 USB plug connection
4 Connecting cable connection (CH-DN, downstream)
5 Connecting cable connection (CH-UP, upstream)
6 FXA193/FXA291 modem connection
7 Charger connection (different adapters are available for the connection)
8 Current output connection
3.3 Post-connection check
• Are cables or the device damaged (visual inspection)?
• Does the supply voltage match the information on the nameplate of the charger?
• Is the connecting cable connected correctly?
26
1 2 3
I-IN
DATA
12V DC SERVICE
7 6 5
Proline Prosonic Flow 93T Portable
8
I-OUT
CH-UP CH-DN
4
A0011480
