1.5 Servo drive part names

Charge Indicator
Lights when the main circuit
power supply is ON and stays
as long as the main circuit
power supply capacitor remains
charged. Therefore, do not
touch the Servo drive even after
the power supply is turned off if
the indicator is lit.
Main Power Supply and Servomotor
Terminals
(RST) used for AC mains input(3 , 220Vac)
(E) Ground Terminal, must be connected
to prevent electrical shock
(UVW) Servomotor Cable Terminal
(B1 B2) Brake Resistance Terminal
(H1 H2) Servomotor Thermostat Terminal

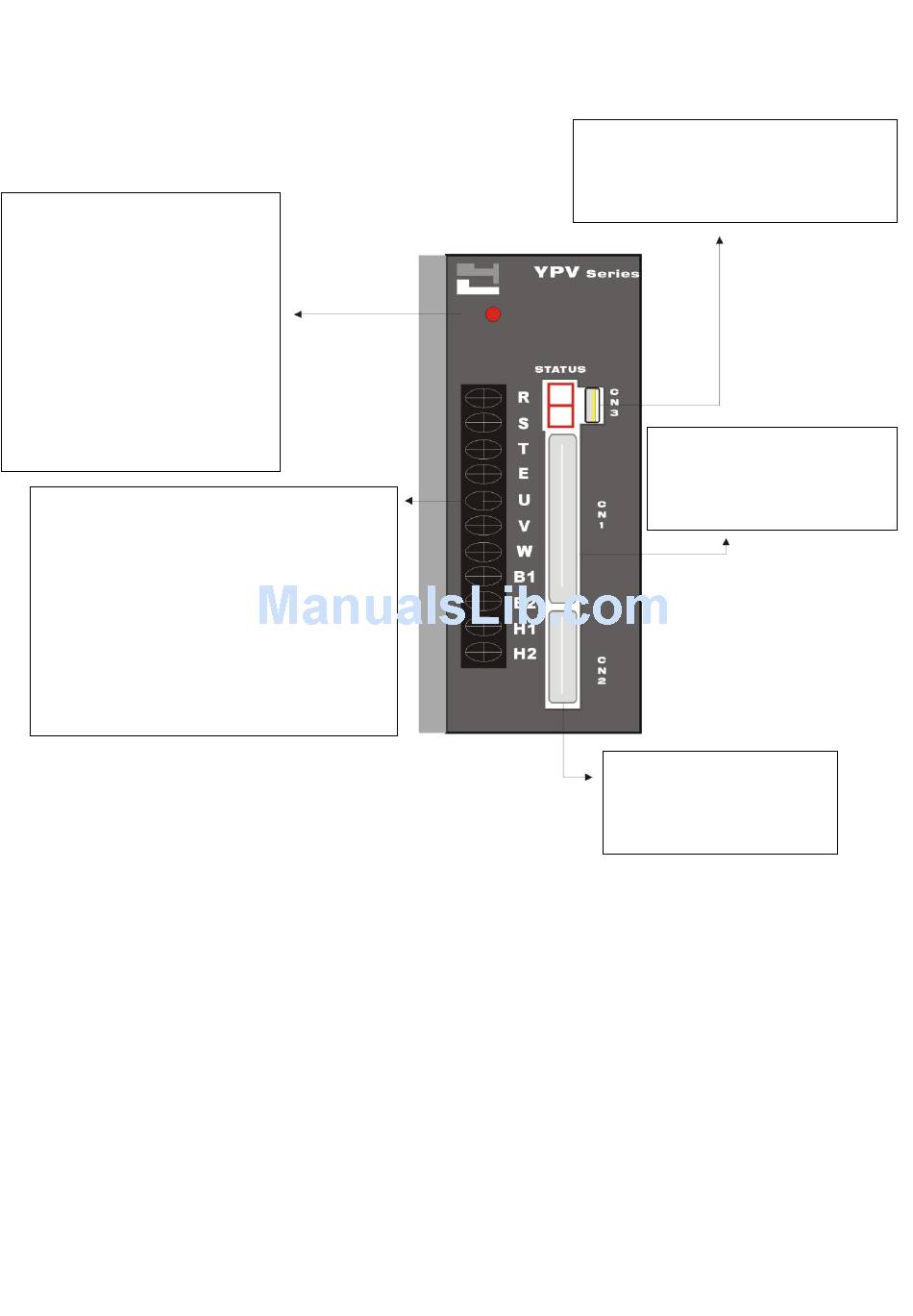

The figure below shows the part names of the servo drive.
CN3 Communication Connector
Used to communicate with a personal
computer (RS-232) or a control panel
CN2 Encoder Connector
Connects to the encoder
in the servomotor.
8
CN1 I/O Signal Connector
Used to input command
or sequence I/O signals.
