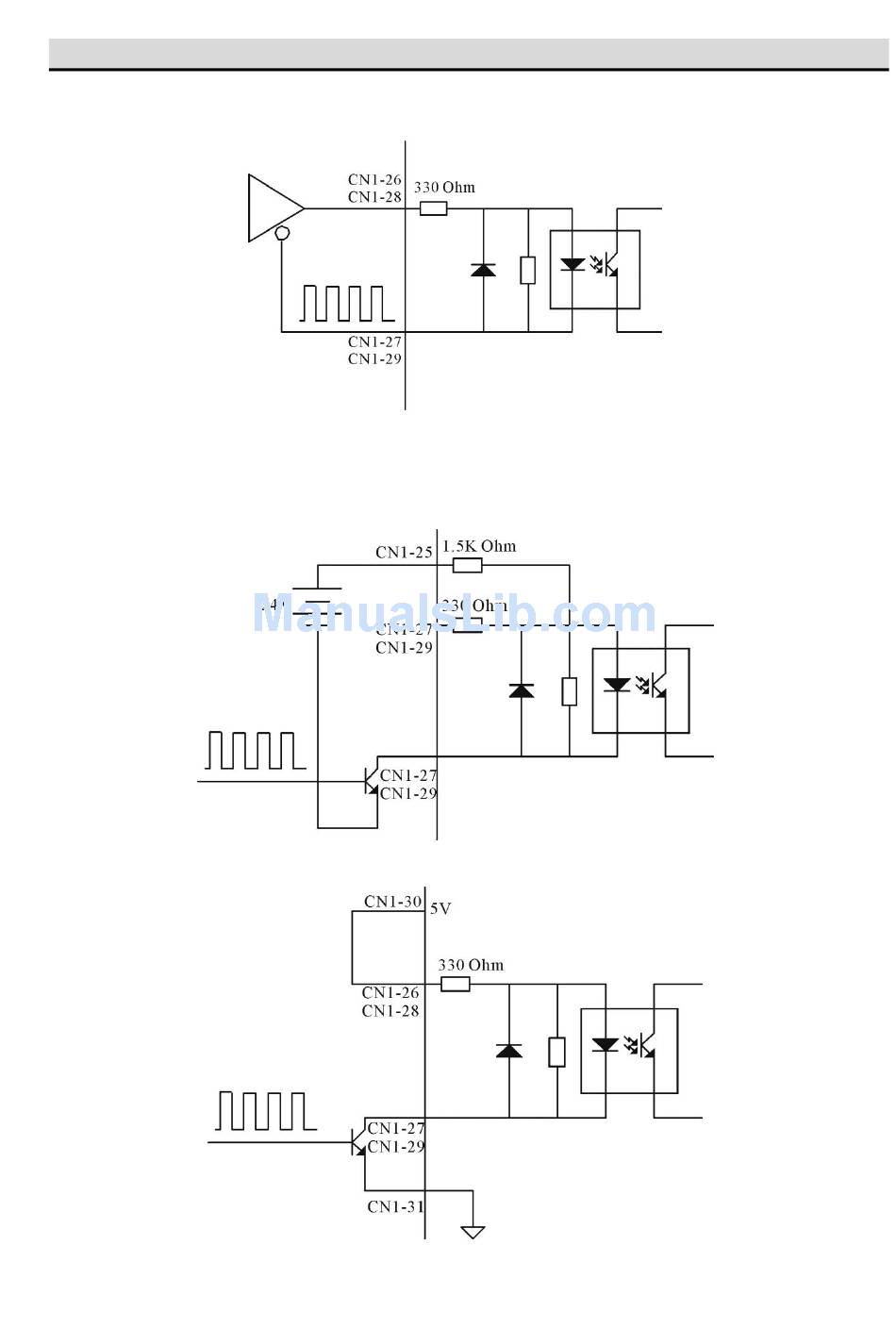

6. Position command input circuit
6.1 From differential type line driver
6.2 From open-collector output:
Example 1: Using an external power supply provided by the user
Note: Mokon Servo drive can be only connected with 24V external power supply.
Example 2: Using power supply built in the servo drive
17
