2. Servo drive installation precautions

The servo drive should be stored in the environment with ambient temperature range of 0-55 C (no
freezing) and relative humidity under 90% RH (no condensation).
Installation Orientation and Spacing:
1.
When installing the servo drive, make the front panel containing connectors face outward and
take into consideration the easy connection/disconnection of CN1 and CN2 connectors for
measurement.
2.
For multiple servo drive installation in the control cabinet, allow at least 40mm between each.
When installing servo drives side by side as shown in the figure below, allow at least 50mm
above and below each servo drive or install cooling fans to facilitate air circulation.

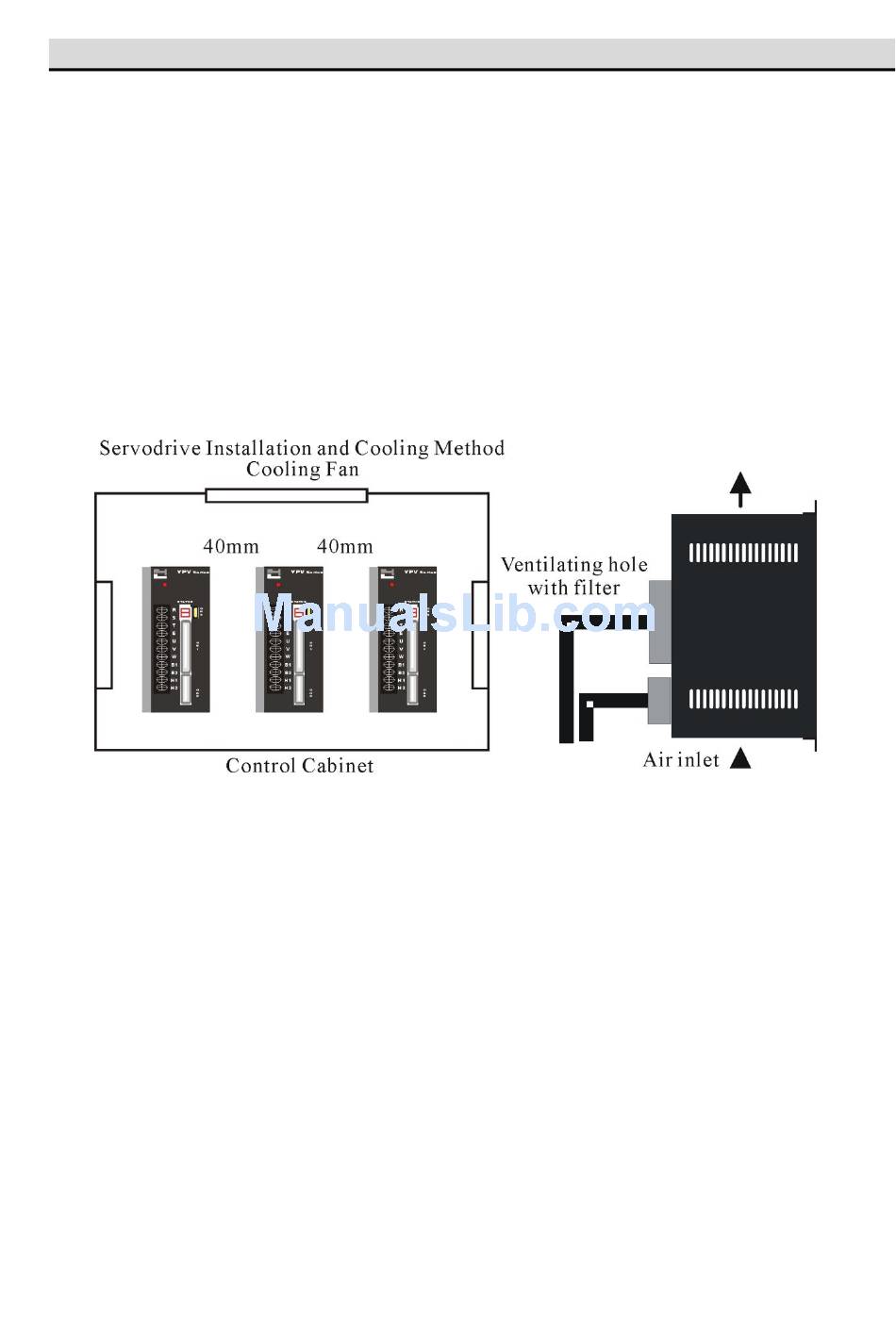

Servo drive Installation and Cooling Method
2.1 Prevent foreign object intrusion
1.
Prevent the drilling and cutting chips from entering the servo drive during installation.
2.
Avoid the odd objects like oil water and metal powder from entering the servo drive via
cooling fans.
3.
If using fans for cooling, please install the filter properly at the ventilating hole, and
consider the surrounding environment to choose the best direction for ventilation.
4.
Please install heat exchanger or air filtering system when installing in locations subject to
poisonous gas or excessive dust.
