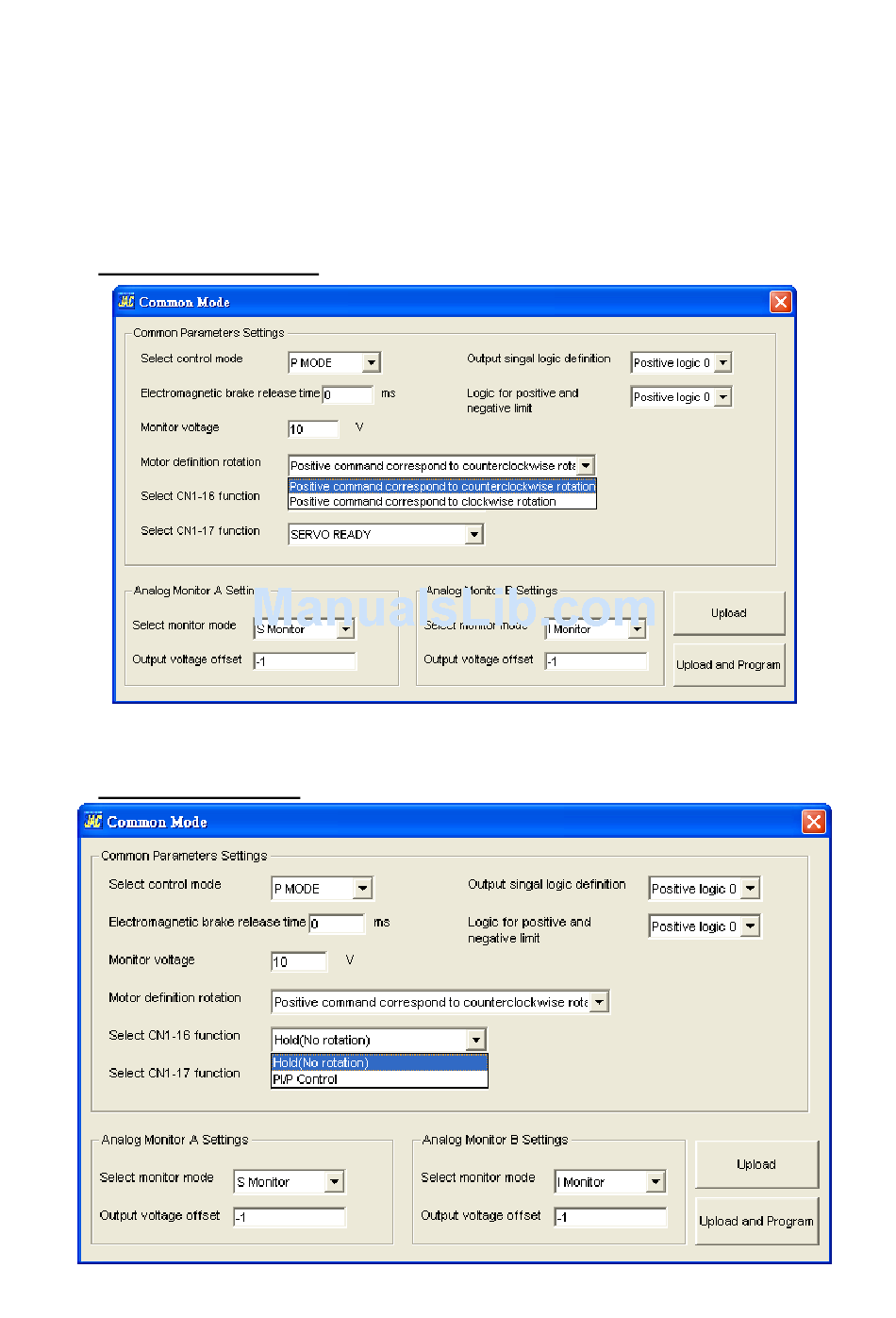

This field is used to set the maximum output voltage of the monitoring signals for both channel A
and channel B, default value is 10V.
If S Monitoring is selected, the maximum output voltage corresponds to the motor rated speed.
If I Monitoring is selected, the maximum output voltage corresponds to the motor 300% rated
current.
If P Monitoring is selected, the maximum output voltage corresponds to the tracking error setting
set in the "Motor Parameter" menu.
Motor definition rotation
You can choose positive command voltage to CW rotation or CCW rotation.
Select CN1-16 function
46
