2.2.6
Ground Connector
A #10-32 stud is provided at the location shown in Figure 2-4 for connecting a common
chassis ground among equipment.
System Connections, Installation and Startup

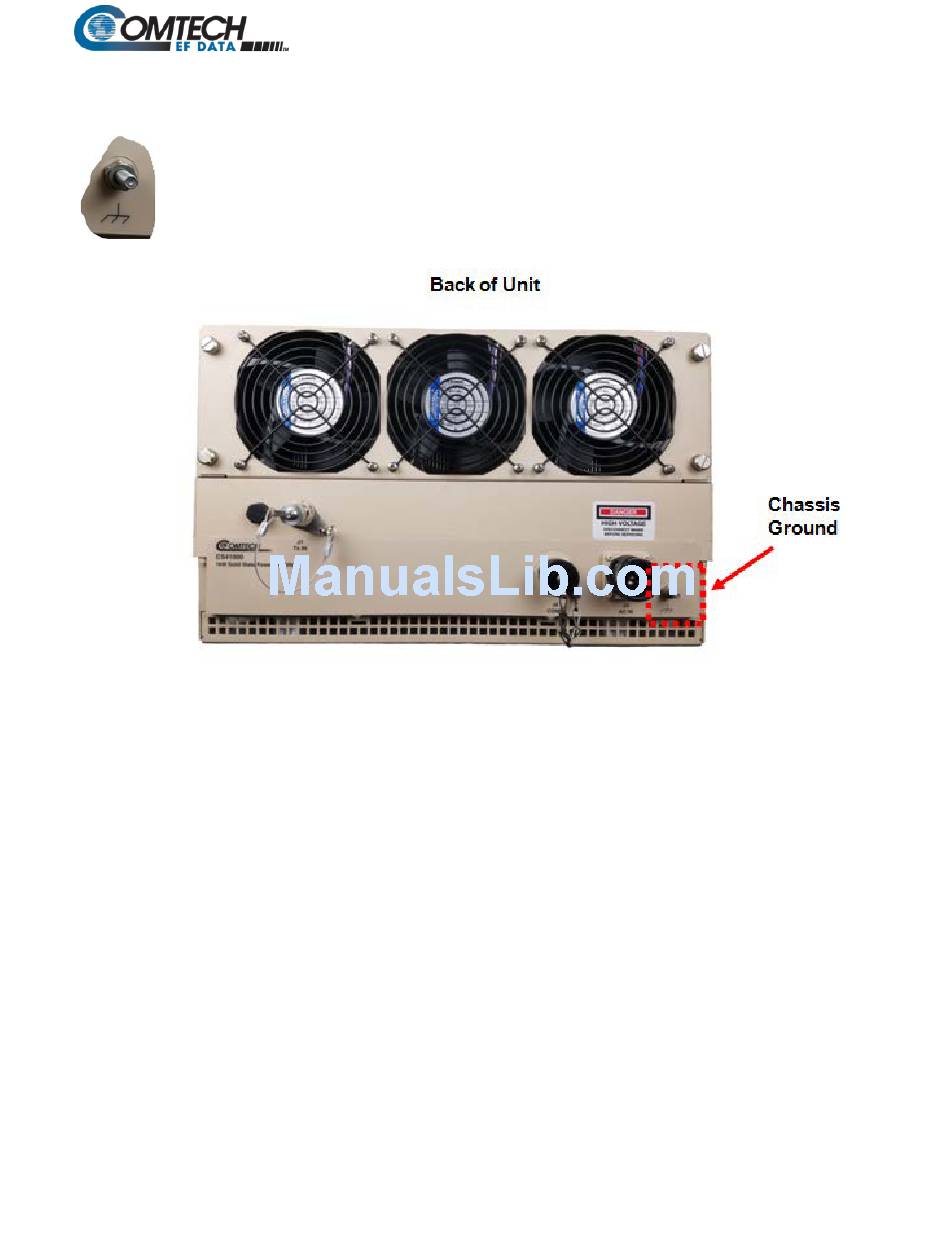

Figure 2-4. TRP1000-4450-OD Ground Connection
TRP1000-4450 Troposcatter C-Band Outdoor Amplifier
2–6
Revision 0
MN-TRP1000-OD
