4.5.4.4.6
Status | MOP
Use this page to view some miniumum and maximum values. Each entry has a Date and Time
stamp.
This read-only scrollable window displays the unread stored statists log in sequential, date-
stamped format. The unit returns and displays the oldest stored statistics in the statistics log.
•
INPWR = Input Power (dBm)
•
FWRWR = Forward Power (dBm)
•
RVPWR = Reverse Power (dBm)
•
OTEMP = Outside Temperature
•
ATEMP = Heat Sink Temperature
•
ETEMP = Exhaust Temperature
•
PS40I = 40V current (Amps)
•
PS10I = 10V current (Amps)
•
PS24I = 24V current (Amps)
Ethernet-based Remote Product Management
TRP1000-4450 Troposcatter C-Band Outdoor Amplifier

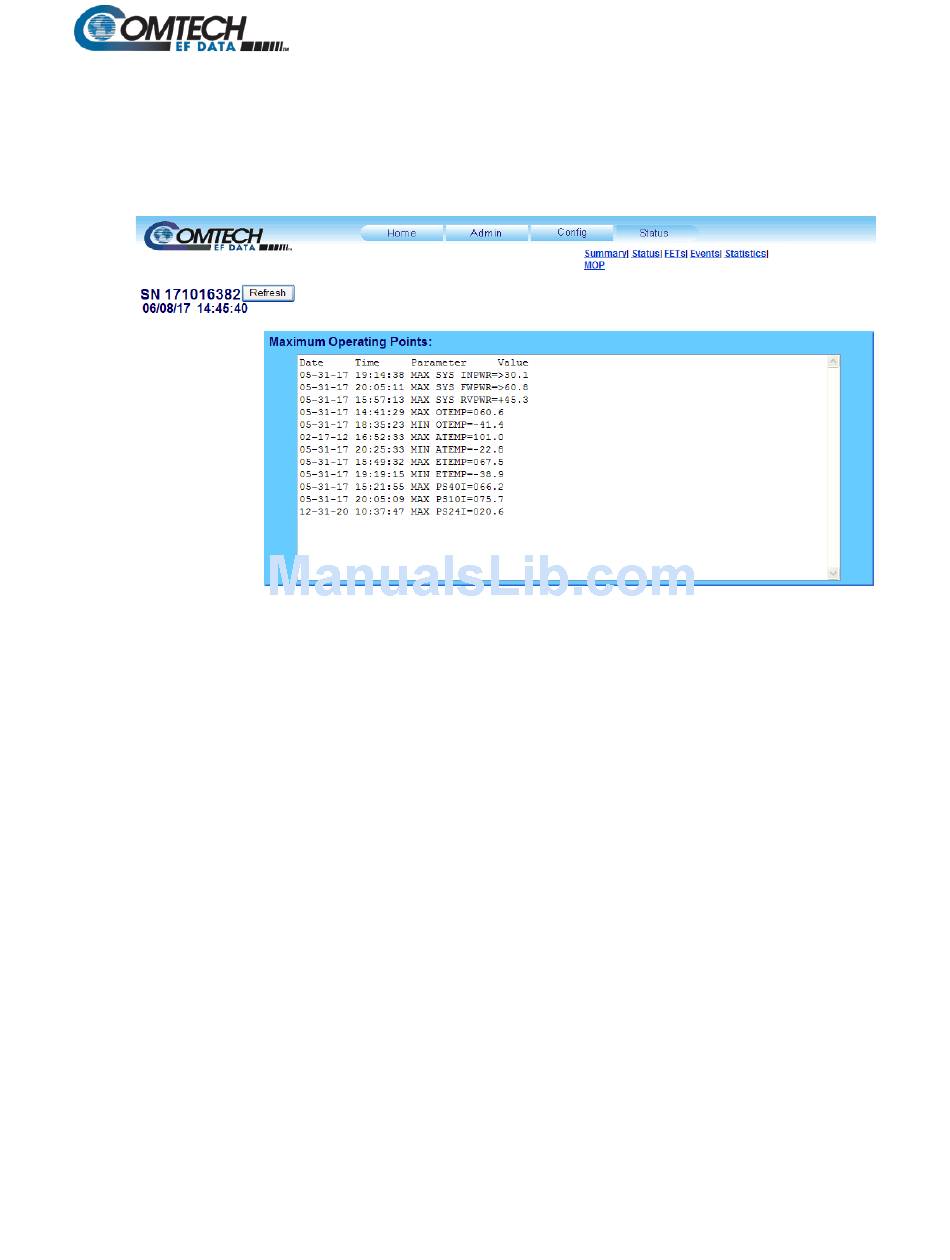

Figure 4-13. Status | MOP Page
4–23
Revision 0
MN-TRP1000-OD
