Appendix G - Service

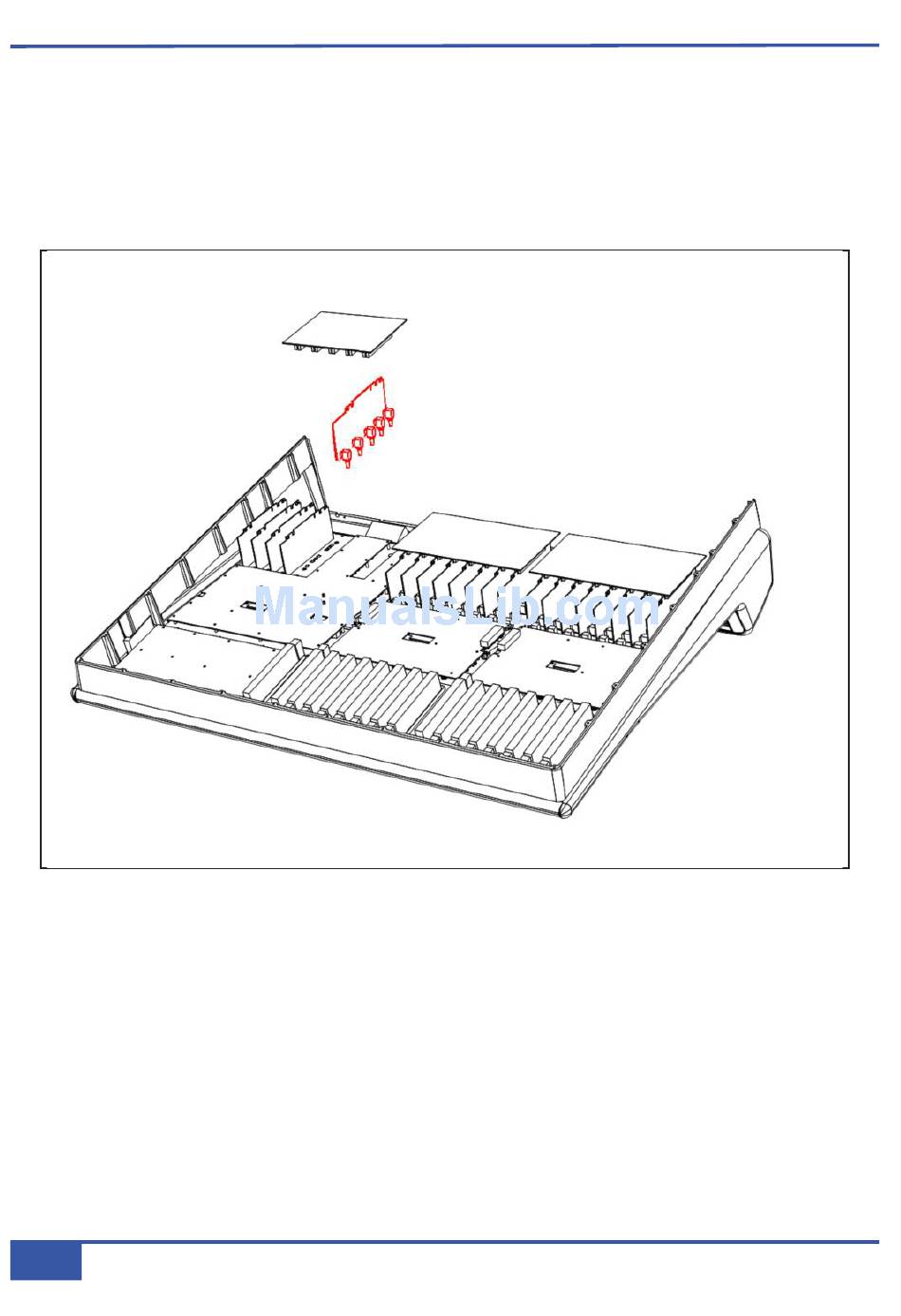

1 1 4 4 - - C C e e n n t t r r e e S S e e c c t t i i o o n n M M o o d d u u l l e e R R e e p p l l a a c c e e m m e e n n t t
• Remove the knob caps and retaining collar from the channel module to be replaced.
• Follow instruction #1 for the removal of the base plate, unscrew and slide the rear panel backwards to gain access to
buscards.
• Follow the instruction for the removal of 629511X1 centre buscard.
• The faulty module will be attached to the buscard, fit the replacement assembly to the buscard and reassemble.
