S S T T E E P P 1 1 1 1 : :

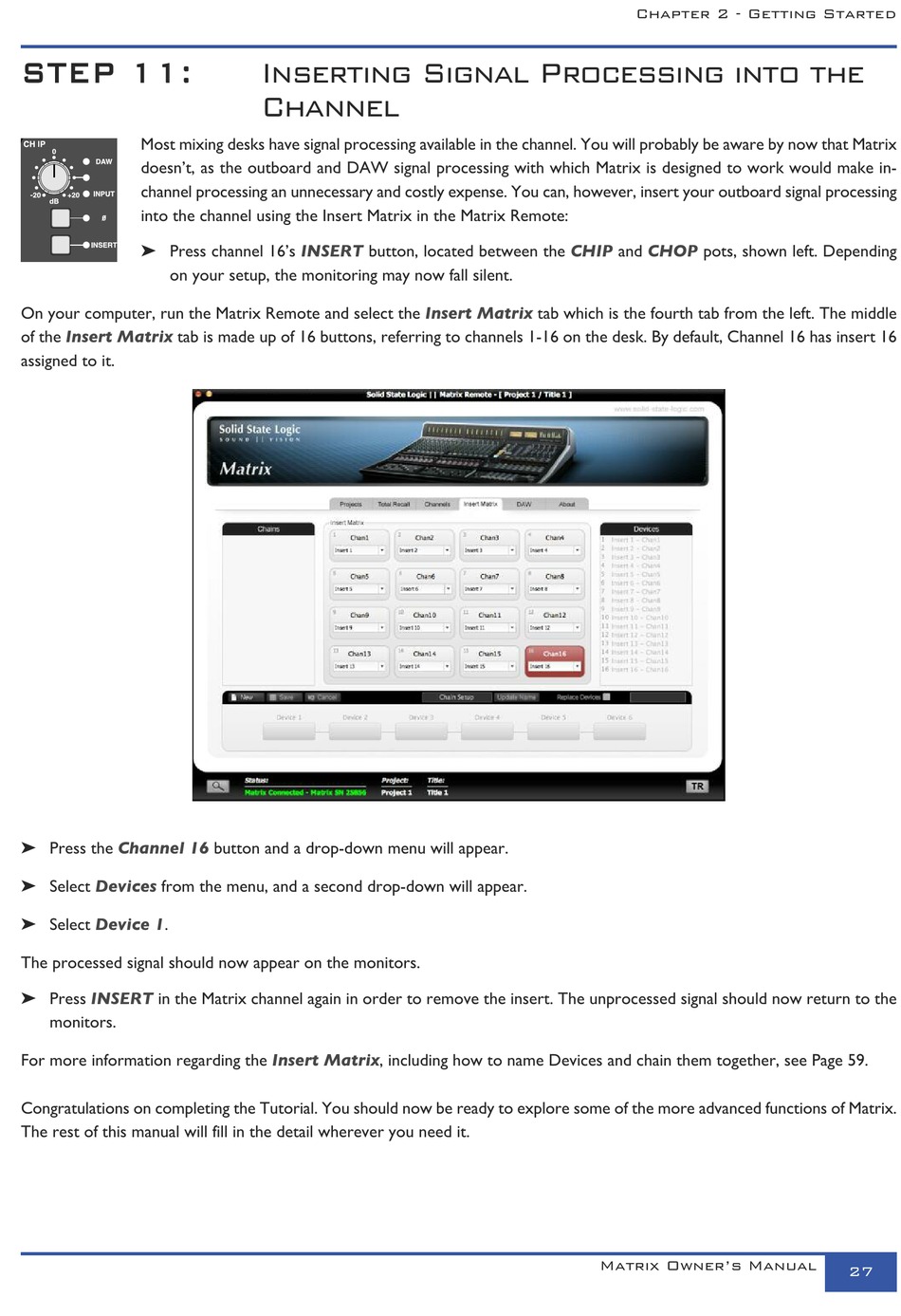

Most mixing desks have signal processing available in the channel. You will probably be aware by now that Matrix
doesn't, as the outboard and DAW signal processing with which Matrix is designed to work would make in-
channel processing an unnecessary and costly expense. You can, however, insert your outboard signal processing
into the channel using the Insert Matrix in the Matrix Remote:
® Press channel 16's
on your setup, the monitoring may now fall silent.
On your computer, run the Matrix Remote and select the
of the Insert Matrix tab is made up of 16 buttons, referring to channels 1-16 on the desk. By default, Channel 16 has insert 16
assigned to it.
® Press the Channel 16
® Select Devices from the menu, and a second drop-down will appear.
® Select Device 1.
The processed signal should now appear on the monitors.
Bass
® Press INSERT in the Matrix channel again in order to remove the insert. The unprocessed signal should now return to the
monitors.
For more information regarding the
Congratulations on completing the Tutorial. You should now be ready to explore some of the more advanced functions of Matrix.
The rest of this manual will fill in the detail wherever you need it.
1 2
3 4
Inserting Signal Processing into the
Channel
INSERT button, located between the
button and a drop-down menu will appear.
Insert Matrix, including how to name Devices and chain them together, see Page 59.
3 4
5 6
CHIP
Insert Matrix tab which is the fourth tab from the left. The middle
5 6
7
Chapter 2 - Getting Started
and CHOP pots, shown left. Depending
