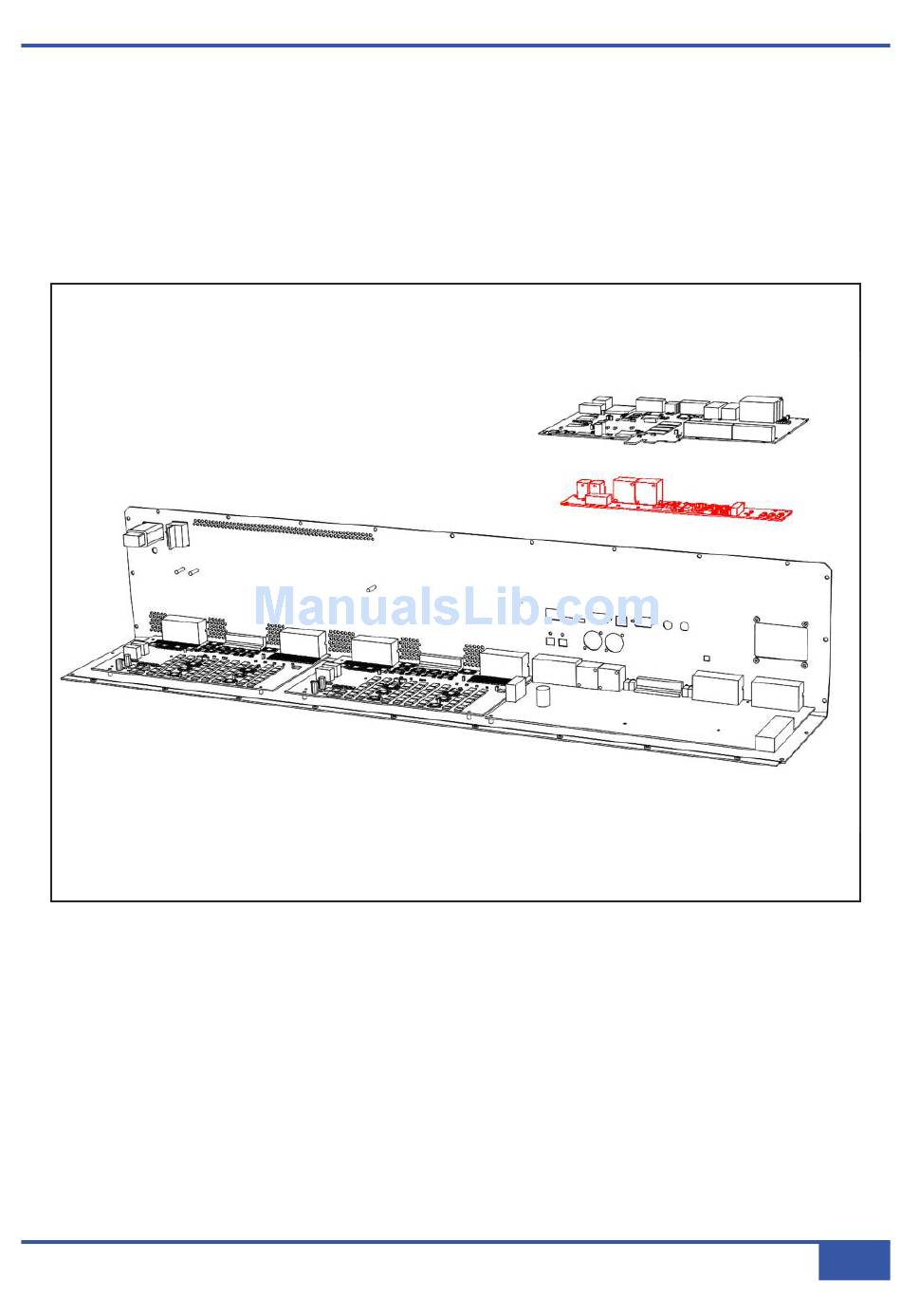

1 1 7 7 - - 6 6 2 2 9 9 5 5 0 0 5 5 X X B B D D i i g g i i t t a a l l I I n n t t e e r r f f a a c c e e R R e e p p l l a a c c e e m m e e n n t t
• Follow instruction #2 for removal of the rear connector panel.
• Remove the pan Pozi screws holding the 629505XB assembly in to the 629505XA CPU.
• Disconnect loom P.
• Remove the screws from the AES and S/PDIF connectors on the rear panel.
• Remove the faulty assembly and transfer the plastic pillar to the replacement part.
• Fit the new assembly and reassemble.
