Appendix G - Service

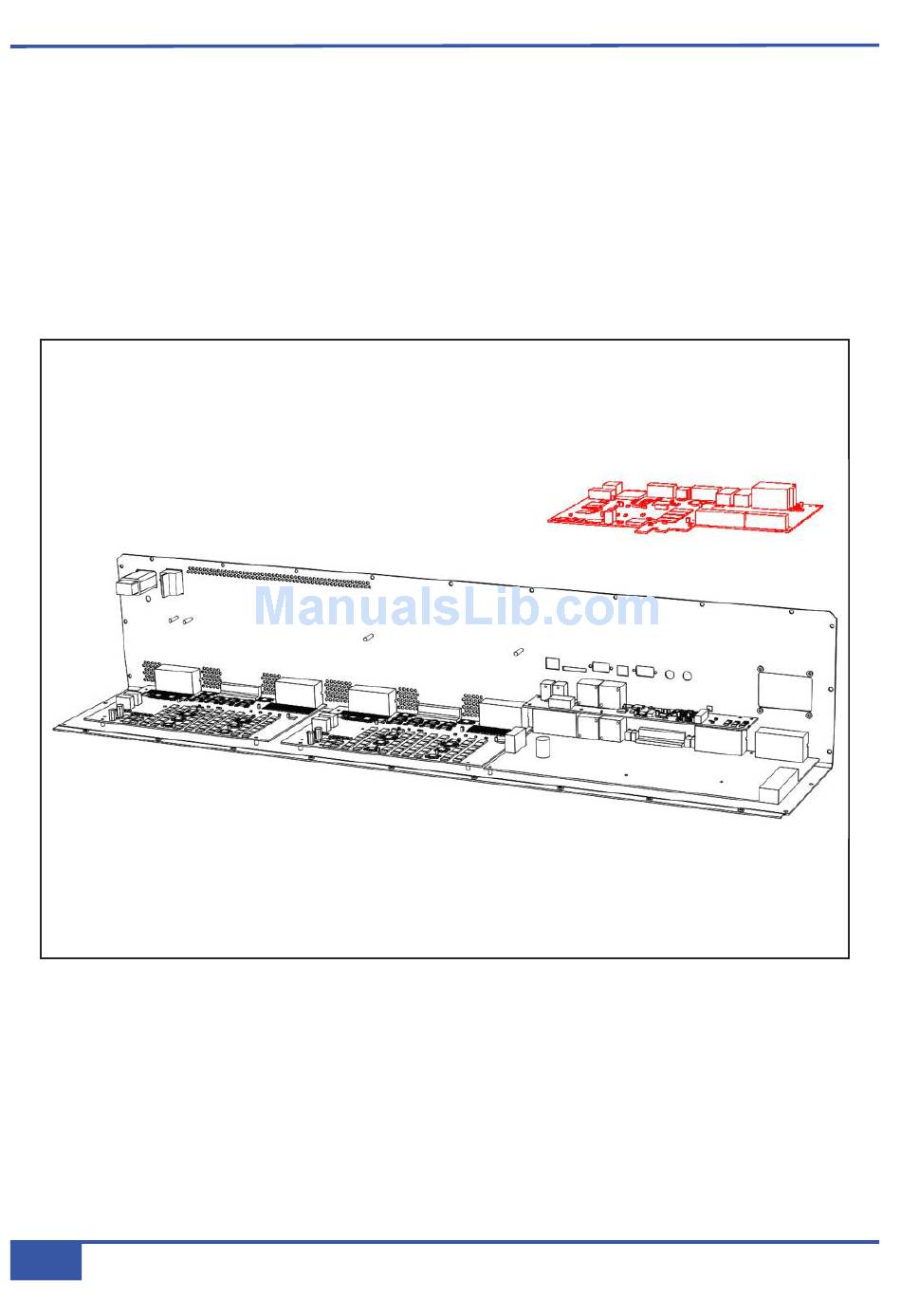

1 1 6 6 - - 6 6 2 2 9 9 5 5 0 0 5 5 X X A A C C P P U U R R e e p p l l a a c c e e m m e e n n t t
• Remove the SD memory card from the console.
• Follow instruction #2 for removal of the rear connector panel.
• Remove the 9-way D-type retaining nuts from the GPIO and XRACK/DIAG connectors on the rear panel.
• Remove all looms connected to the 629505XA assembly.
• Remove four pan Pozi screws.
• Lift the assembly clear of the console.
• Fit the replacement card and reassemble.
• Refit the SD memory card.
