Appendix G - Service

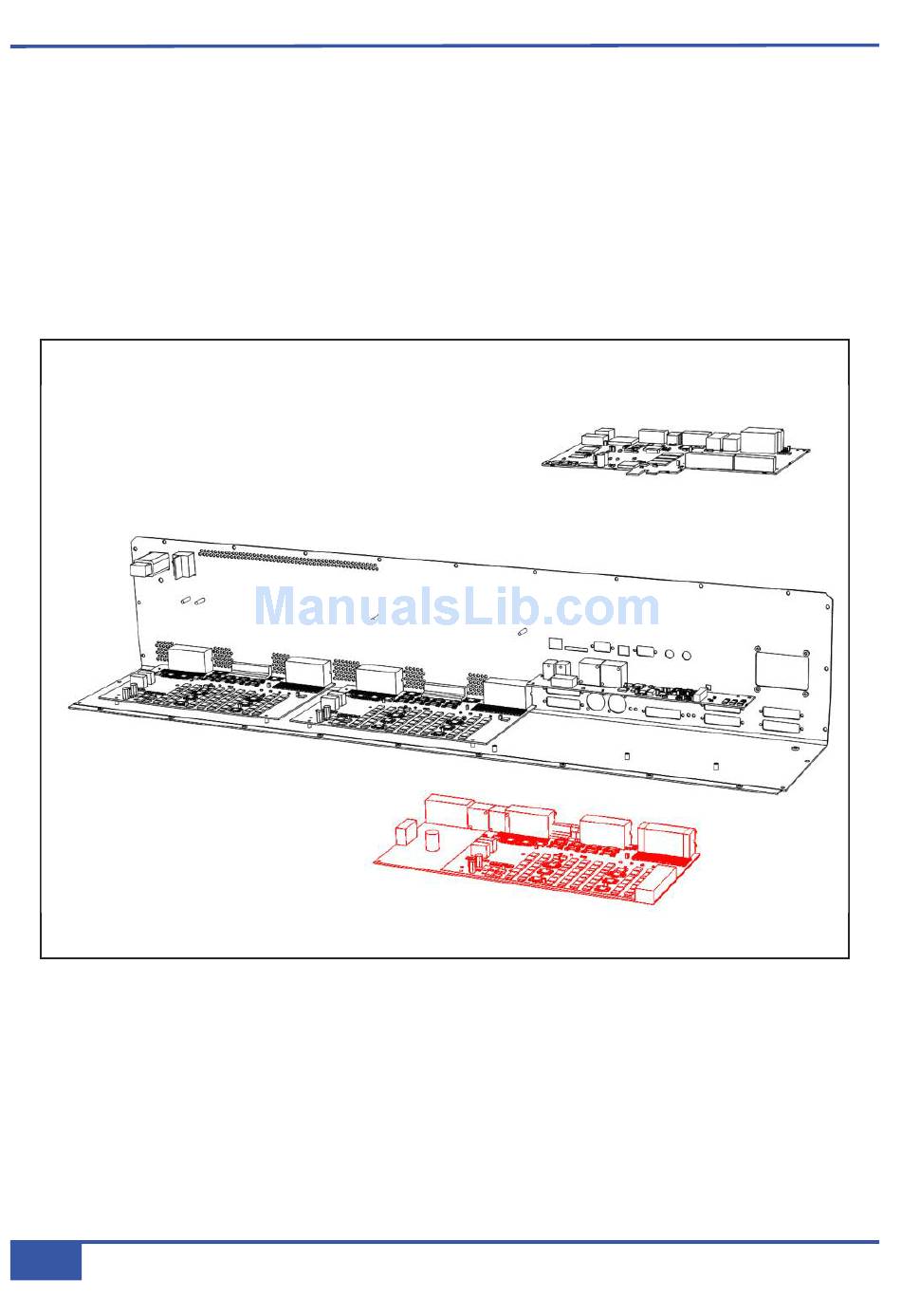

1 1 8 8 - - 6 6 2 2 9 9 5 5 1 1 5 5 X X 1 1 C C e e n n t t r r e e S S e e c c t t i i o o n n R R e e a a r r R R e e p p l l a a c c e e m m e e n n t t
• Follow instruction #2 for removal of the rear connector panel.
• Remove the 9-way D-type retaining nuts from the GPIO and XRACK/DIAG connectors on the rear panel.
• Remove all looms connected to the 629505XA assembly.
• Remove four pan Pozi screws holding the 629505XA assembly in place and remove the assembly from the console.
• Remove the remaining D-Type retaining nuts from rear of console's centre section.
• Unplug all looms connecting to the 629515X1 assembly.
• Unscrew the three plastic pillars.
• Replace the 629515X1 assembly and reassemble.
