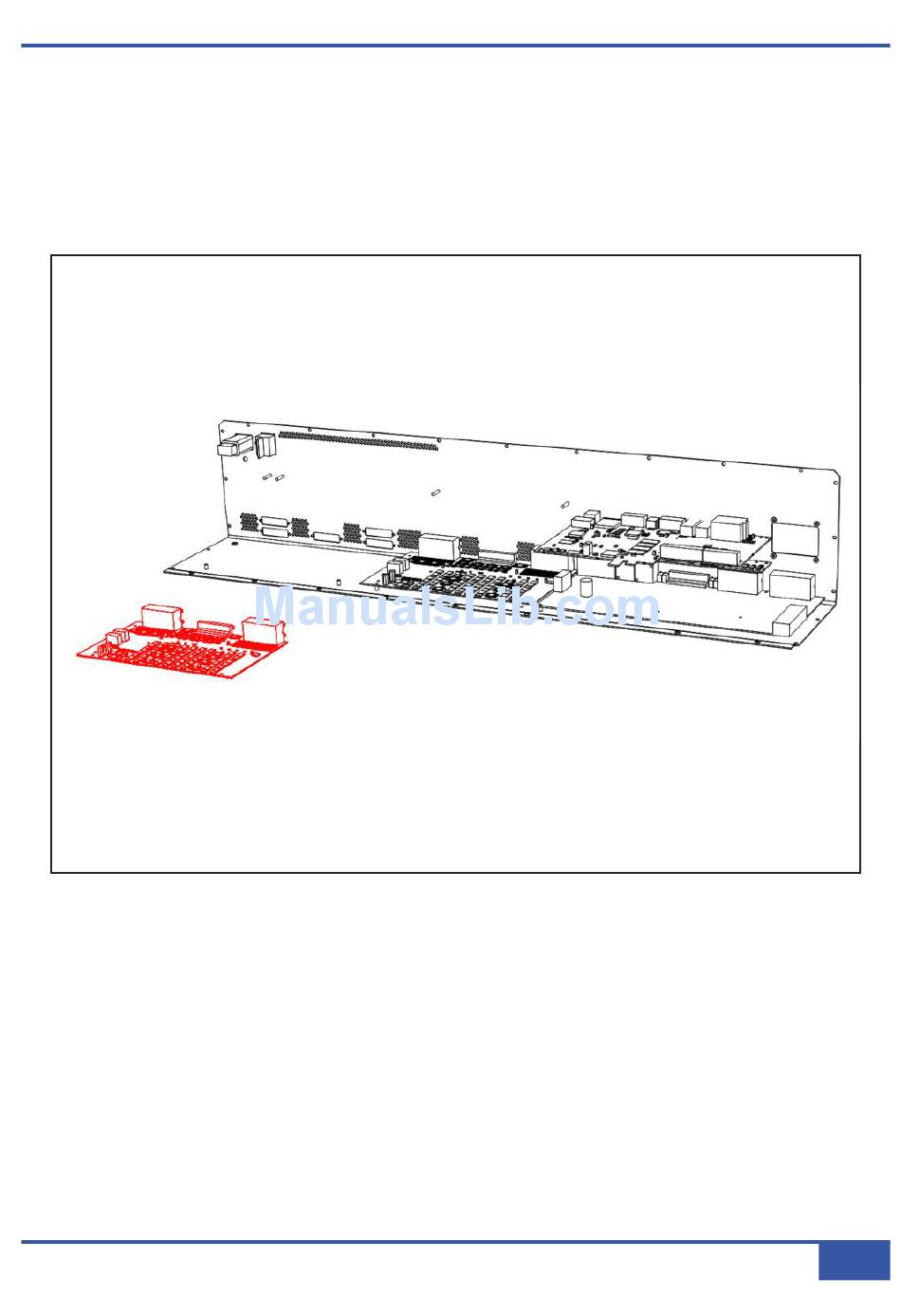

1 1 5 5 - - 6 6 2 2 9 9 5 5 1 1 6 6 X X 1 1 R R o o u u t t e e r r R R e e p p l l a a c c e e m m e e n n t t
• Follow instruction #2 for removal of the rear connector panel.
• Remove the connecting looms.
• Using a #1 Pozi-drive screwdriver, remove two fixing screws.
• Remove the retaining nuts from each of the boards D type connectors using a 5.5mm nut spinner.
• Lift the assembly clear.
