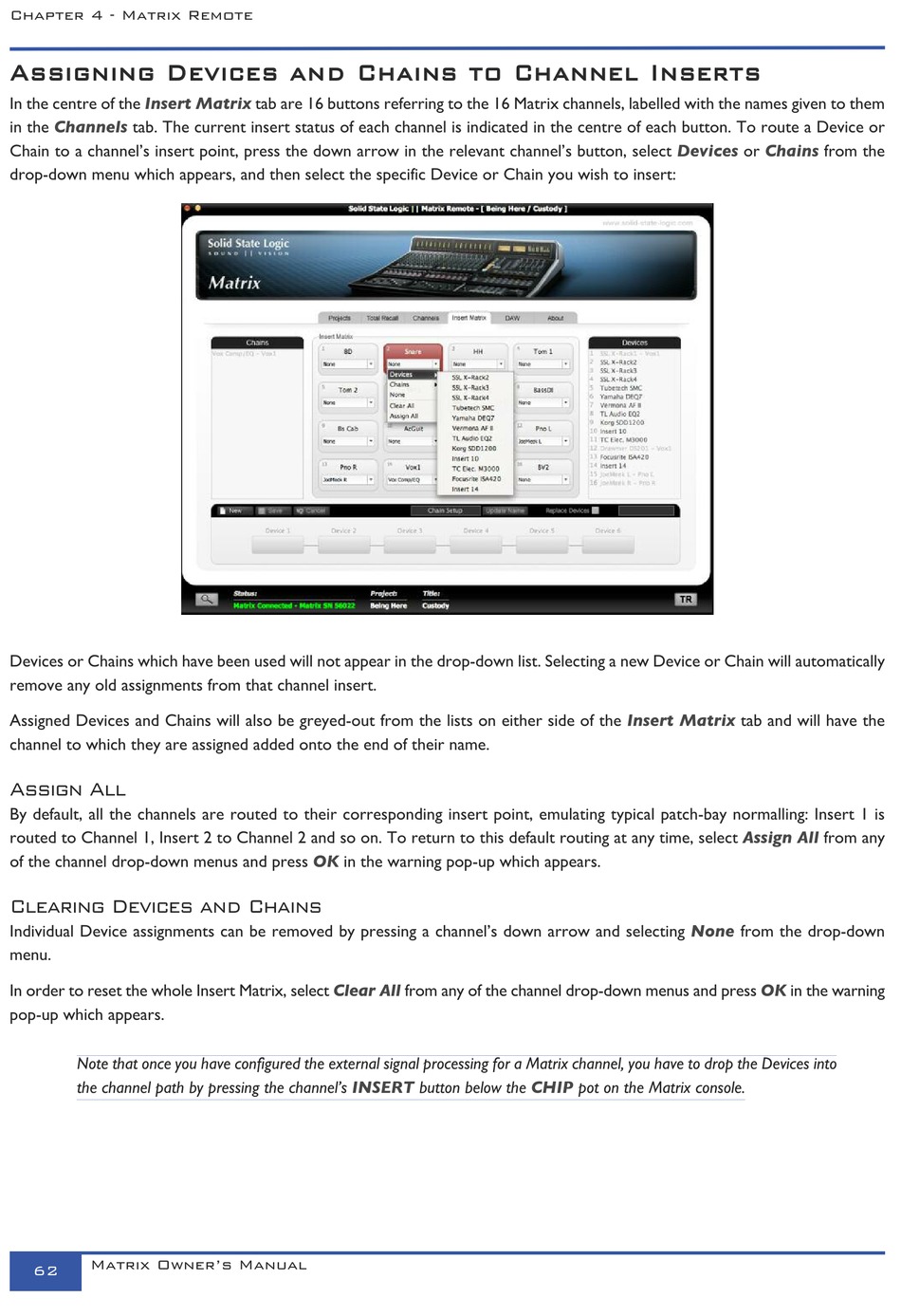

Chapter 4 - Matrix Remote
A A s s s s i i g g n n i i n n g g D D e e v v i i c c e e s s a a n n d d C C h h a a i i n n s s t t o o C C h h a a n n n n e e l l I I n n s s e e r r t t s s
In the centre of the Insert Matrix
in the Channels tab. The current insert status of each channel is indicated in the centre of each button. To route a Device or
Chain to a channel's insert point, press the down arrow in the relevant channel's button, select
drop-down menu which appears, and then select the specific Device or Chain you wish to insert:
Devices or Chains which have been used will not appear in the drop-down list. Selecting a new Device or Chain will automatically
remove any old assignments from that channel insert.
Assigned Devices and Chains will also be greyed-out from the lists on either side of the
channel to which they are assigned added onto the end of their name.
Assign All
By default, all the channels are routed to their corresponding insert point, emulating typical patch-bay normalling: Insert 1 is
routed to Channel 1, Insert 2 to Channel 2 and so on. To return to this default routing at any time, select
of the channel drop-down menus and press
Clearing Devices and Chains
Individual Device assignments can be removed by pressing a channel's down arrow and selecting
menu.
In order to reset the whole Insert Matrix, select
pop-up which appears.
Note that once you have configured the external signal processing for a Matrix channel, you have to drop the Devices into
the channel path by pressing the channel's
Matrix Owner's Manual
62
tab are 16 buttons referring to the 16 Matrix channels, labelled with the names given to them
OK
in the warning pop-up which appears.
Clear All from any of the channel drop-down menus and press
INSERT button below the
Devices
Insert Matrix
None
CHIP pot on the Matrix console.
Chains
or from the
tab and will have the
Assign All from any
from the drop-down
OK in the warning
