Solid State Logic Matrix Owner's Manual page 132

Appendix G - Service

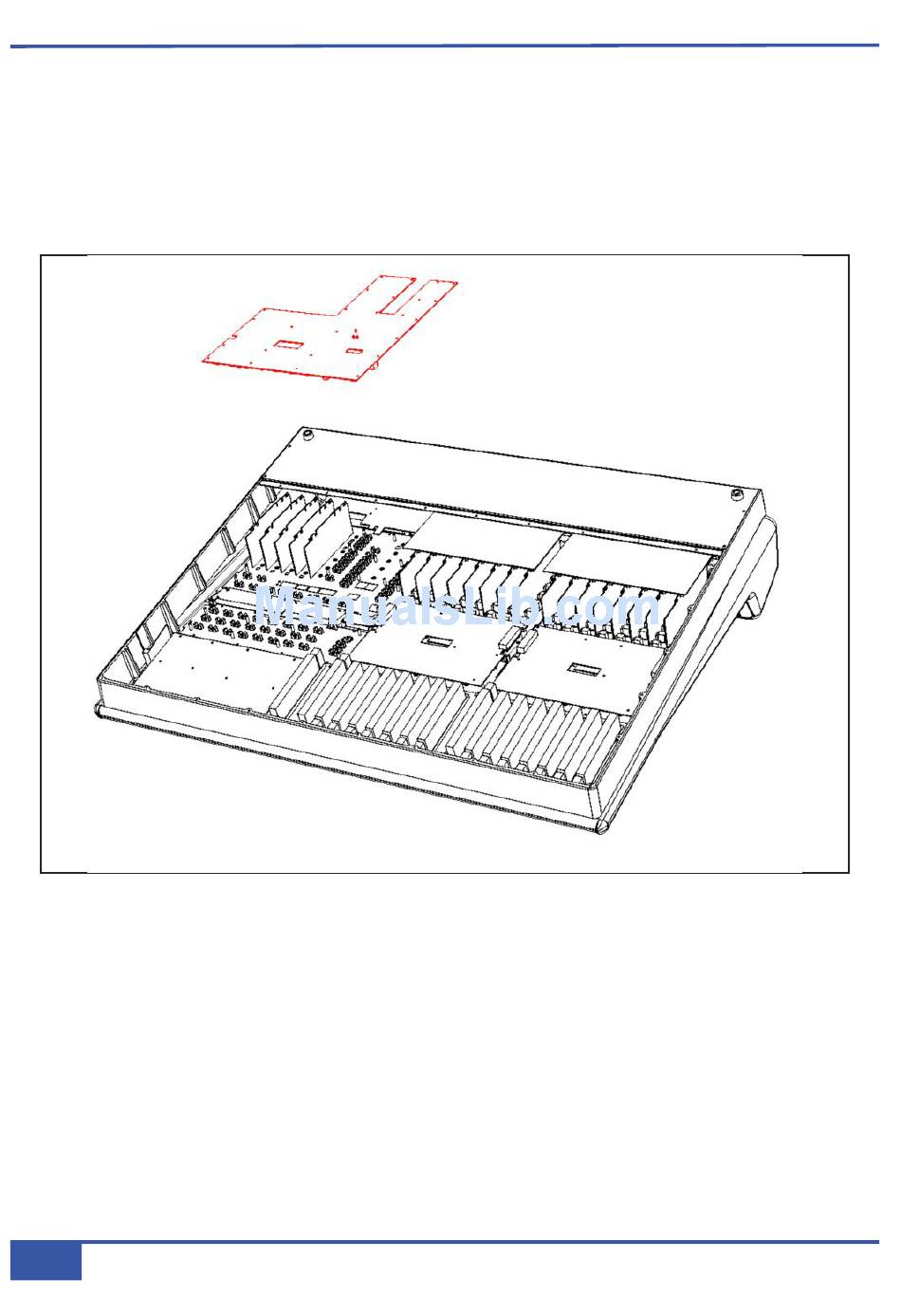

5 5 - - 6 6 2 2 9 9 5 5 0 0 6 6 X X B B M M o o n n i i t t o o r r T T i i l l e e R R e e p p l l a a c c e e m m e e n n t t
• Remove the master fader V-pot knob cap.
• Follow instructions #1 and #2 for base plate and rear panel removal.
• Disconnect all ribbon cable connections to the assembly.
• Remove all pan Pozi screws.
• Replace with new assembly, reassemble and test for correct operation.
Matrix Owner's Manual
124
