1 Installing the Router
Connecting the ATLAS 160 and ATLAS 260 power supply

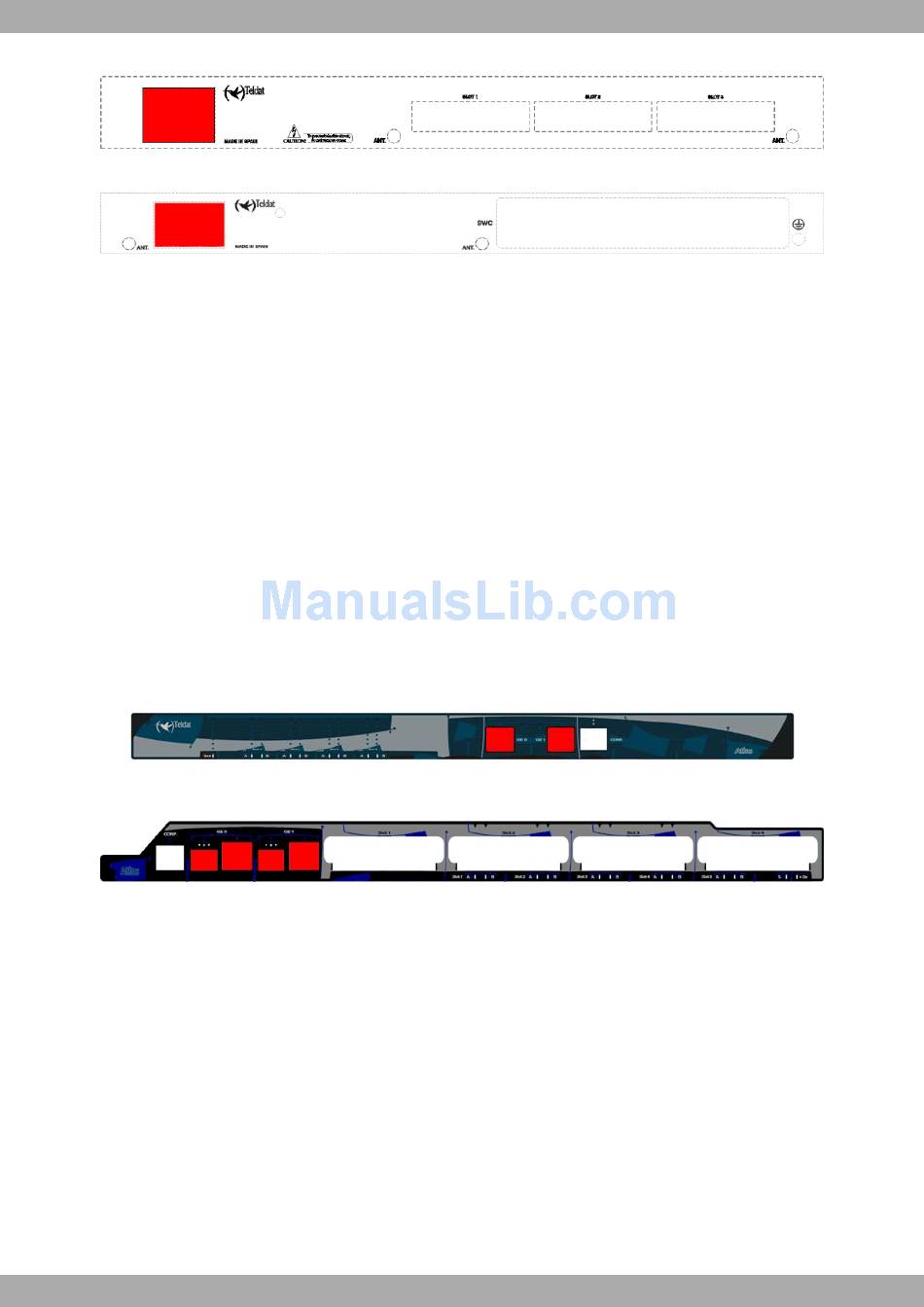

Fig. 3:
Connecting the ATLAS 360 power supply
Fig. 4:
To connect the power source to the device, follow the steps listed in the previous table: ensure that the switch is OFF
(0) and the power supply is NOT connected to the main electricity supply; find the POWER plug (located on the rear
panel of the device) and insert the power cable. Please use the grounded cable supplied with the device for this pur-
pose.
1.2.2 Connections
The ATLAS X60 router has the following connectors available. Some of these connectors may not be available de-
pending on the model:
1.2.2.1 Interfaces GigaEthernet
GE 0, GE 1:
GigaEthernet Interfaces. The ATLAS 360 router has two connectors to connect to Ethernet networks. Each interface
has two connectors: one optic connector (1000 LX SFP-LC) and one metal one (10/100/1000 Base-T).
The ATLAS 160 and ATLAS 260 routers only have one metallic connector available (10/100/1000 Base-T).
The second LAN (GE 1) requires a software license in order to operate it.
Giga Ethernet ATLAS 160 and ATLAS 260 connectors
Fig. 5:
Giga Ethernet ATLAS 360 connectors
Fig. 6:
1.2.2.2 Connecting the antenna
ANT.:
The ATLAS X60 router has two connectors for an external antenna, used to improve the quality of the signal re-
ceived and transmitted by the Wireless LAN module. This module is optional and it's possible that your device does
not have a Wireless LAN or antennas. To assemble and dismantle the antennas, simply screw them into the con-
nectors labeled ANT (located on the rear of the device).
For the Wireless LAN interface to operate, the device must have a plug-in Wireless LAN card and the corresponding
software license. Depending on the model, the antennas are installed in the device by default. If your device does not
have the Wireless LAN module incorporated, you can obtain this later on. The manual provided will indicate how to
install the module and its antenna cables in the device.
