Chapter 1 Installing The Router; Introduction; Device Description - Teldat ATLAS X60 Installation Manual

1 Installing the Router

Chapter 1 Installing the Router

1.1 Introduction

The ATLAS X60 routers are modular devices incorporating encryption hardware and designed with network conver-
gence in mind, as they support IP Telephony and the possibility to encode video.
Teldat proposes the ATLAS X60 for wireless technology, both for the local network, with wireless access point func-
tionality, as well as for the wide area network as this device supports the following interface cards: GSM, GPRS,
EDGE, UMTS, HSDPA, CDMA2000, EV-DO and WiMAX.
The ATLAS X60 executes the "Teldat Internetworking Code" (CIT) which runs in all the Teldat switch-router families.
It is characterized by a wide variety of functionalities, especially designed to satisfy the access needs to corporate
data networks. The capacity of the Teldat Internetworking Code for remotely managing devices, the possibility of im-
plementing Quality of Service mechanisms (QoS), security mechanisms and the ability to create Virtual Private Net-
works through IPSec or L2TP, together with the wide range of protocols and IP routing and bridging functionalities,
make this an outstanding feature.
The ATLAS X60 router family can be expanded with up to 4 PCI cards, allowing you to increase the number of inter-
faces in the device.
This manual will show you how to install and connect these devices.

1.1.1 Device description

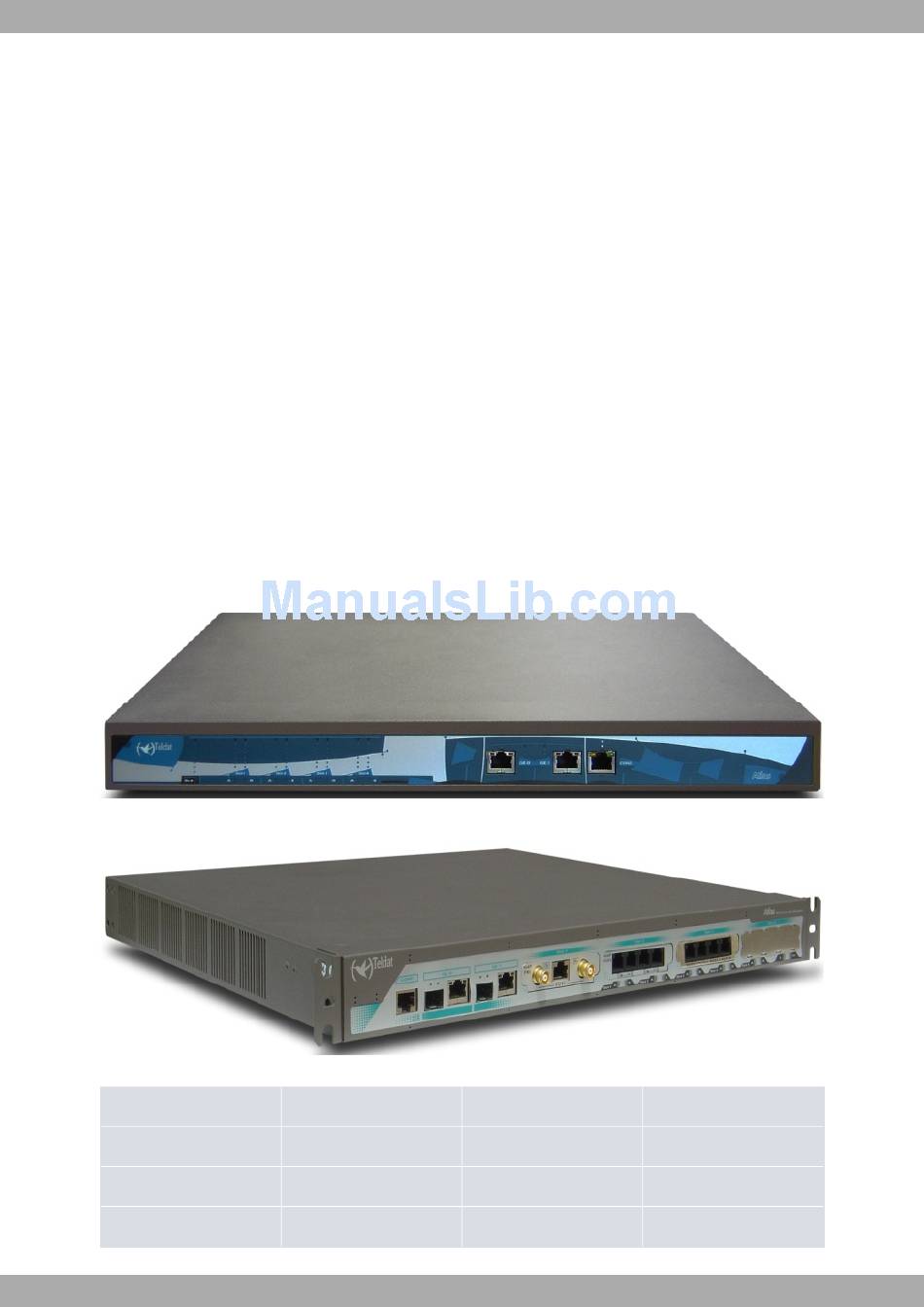

ATLAS 160 and ATLAS 260 Router
Fig. 1:
ATLAS 360 Router
Fig. 2:
FLASH
RAM
PCI SLOTS
2
ATLAS 160
16M
128M
2
ATLAS 260
16M
128M
3
ATLAS 360
64M
256M
4
