Teldat S.A.
1.3.2 ATLAS 360

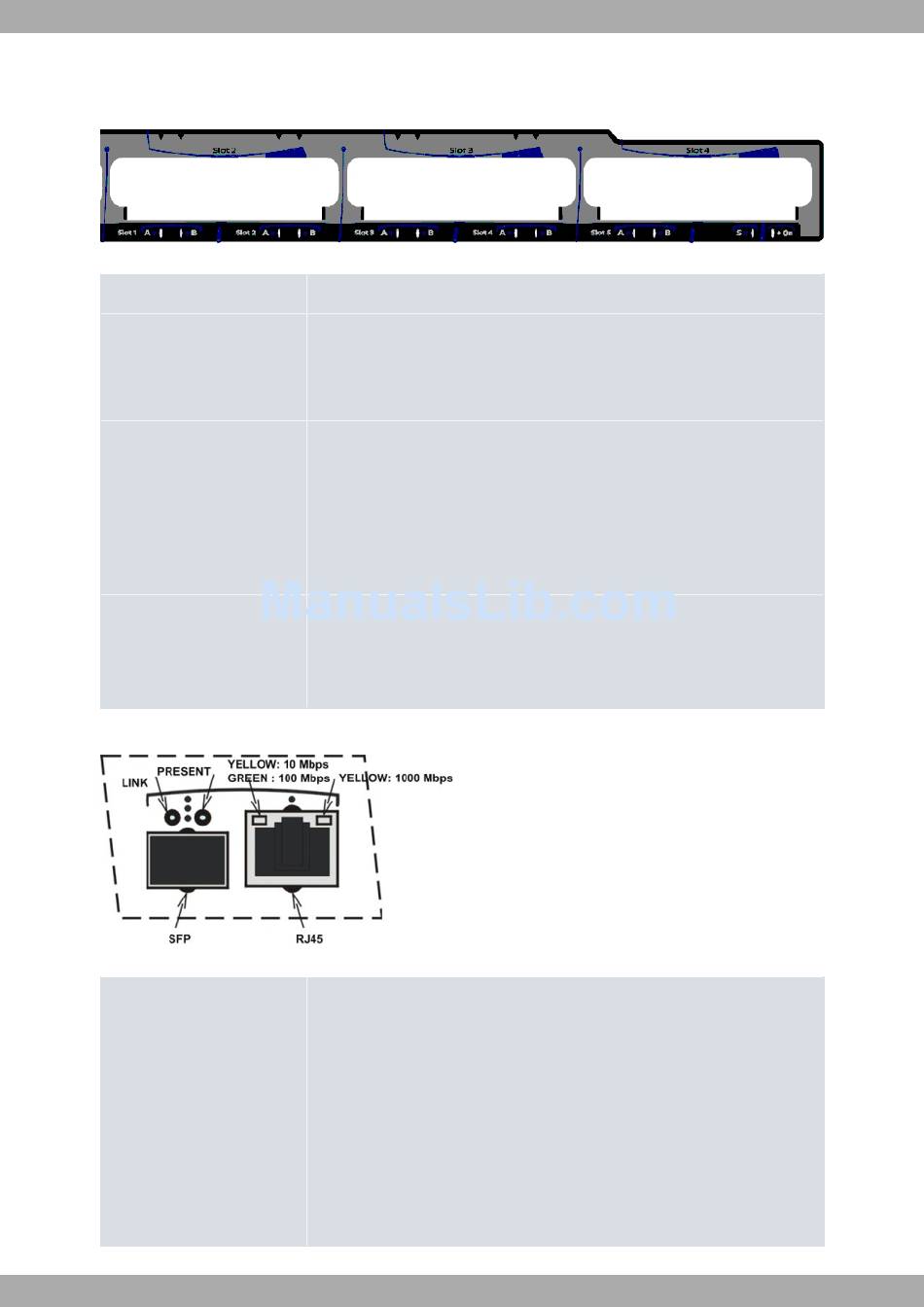

ATLAS 360 LEDs
Fig. 14:
ON
S
SLOT [1-4]
A & B
SLOT 5
A & B
Specific connector LEDs
Specific connector LEDs
Fig. 15:
GEX
ATLAS X60
Power-on indicator. It lights up when connected to the power supply.
Router operation
OFF: System stopped.
STEADY: System initialized and operating.
Depends on the card installed in the PCI Slot. Normally this is:
OFF: Interface not available or not installed (not supported).
RAPID FLASHING: Interface not established, without data connection.
SLOW FLASHING : Connecting.
STEADY: Communications established.
The device has a MINI-PCI slot where you can install a Wireless LAN daughter
card.
Please see the manual on Wireless LAN interfaces to check how the LEDs oper-
ate.
Optic connector:
-Left: link and activity detection
OFF: There is no link.
RED: Link detected. Flashing depends on the activity.
-Right: SFP present
OFF: SFP not present.
RED: SFP present.
1 Installing the Router
7
