NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS

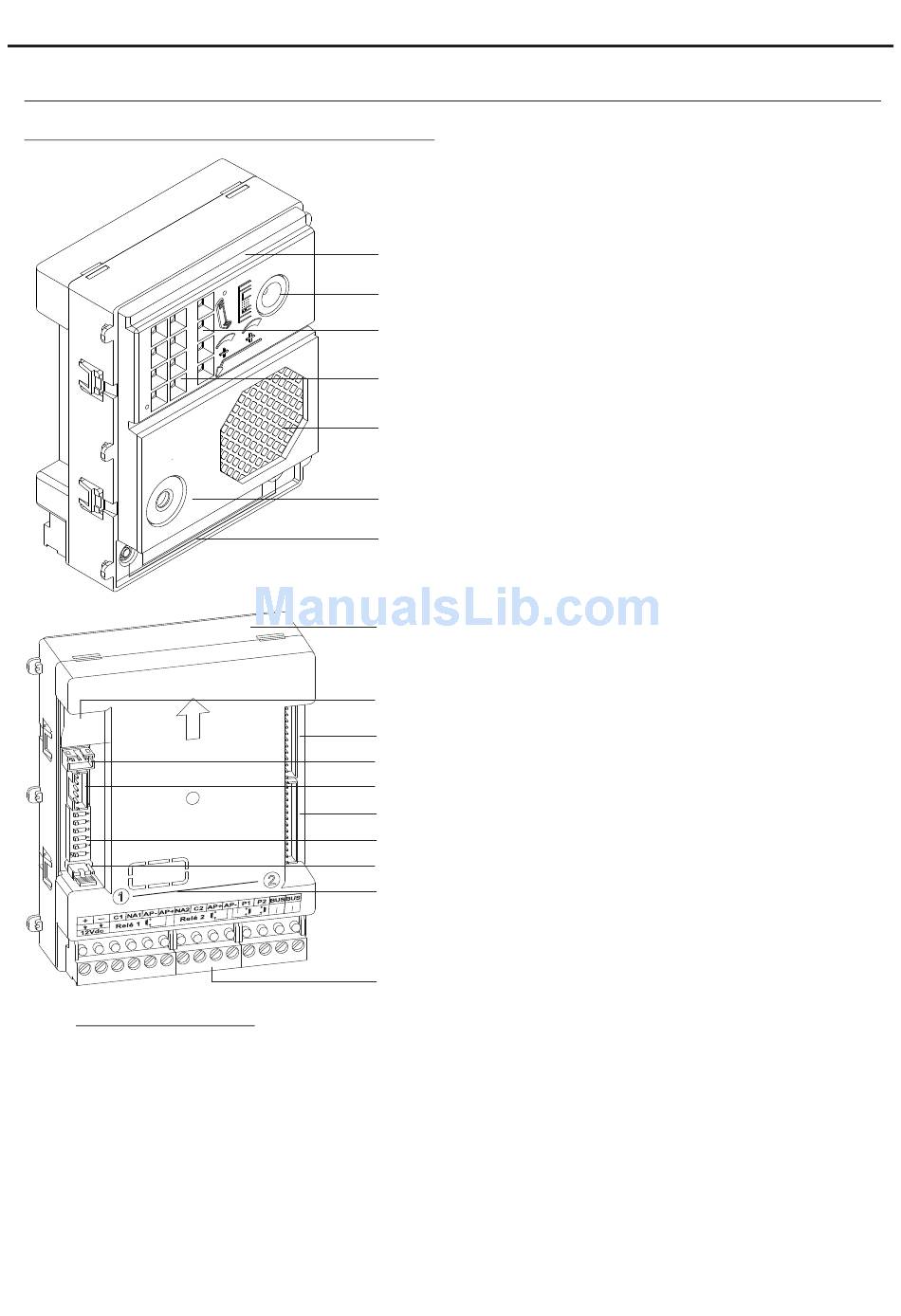

DESCRIPTION OF THE EL632 GB2A SOUND MODULE
Description of the EL632 GB2A sound module:
Connection terminals:
_
+,
:
Positive, negative (12Vdc output for Golmar DC electric lock).
C1
:
Contact 'C' for electric lock (Relay 1).
NA1
:
Contact 'NO' for electric lock (Relay 1).
_
AP ,AP+
:
Input for exterior door opening button (Relay 1).
NA2
:
Contact 'NO' for electric lock (Relay 2).
C2
:
Contact 'C' for electric lock (Relay 2).
_
AP+,AP
:
Input for exterior door opening button (Relay 2).
P1
:
Input for exterior call button (button 1).
P2
:
Input for exterior call button (button 2).
BUS
:
Connection BUS (non-polarised).
BUS
:
Connection BUS (non-polarised).
Note: See wiring diagrams for connections (p.12-19).
Front.
Colour television camera.
LEDs (visual signals for people with impaired hearing).
LEDs (activation in low light conditions).
Speaker.
Microphone.
Sound module buttons (x2).
Back.
Internal use.
Do not use.
Do not use.
Do not use.
Button connector (in houses unused).
Configuration DIP switch.
Do not use (internal use).
Button number.
Connector (GB2 bus).
4
