PCI-DAS08 User's Guide

Connecting the board for I/O operations

Connectors, cables – main I/O connector
Table 2-1
lists the board connectors, applicable cables and compatible accessory boards.
Connector type
Compatible cables
Compatible accessory products
(with the C37FF-x cable)
Compatible accessory products
(with the C37FFS-x cable)
1
19
Table 2-1. Board Connectors, cables, accessory equipment
37-pin male "D" connector
C37FF-x 37-pin cable. x = length in feet (Figure 2-2).
C37FFS-x 37-pin shielded cable. x = length in feet (
CIO-MINI37
SCB-37
ISO-RACK08
CIO-MINI37
SCB-37
ISO-RACK08
CIO-EXP16
CIO-EXP32
CIO-EXP-GP
CIO-EXP-BRIDGE16
CIO-EXP-RTD16
-12V
CTR1 GATE
CTR2 GATE
CTR3 GATE
EXT INT
DIN1
DIN2
DIN3
DGND
+5V
CH7
CH6
CH5
CH4
CH3
CH2
CH1
CH0

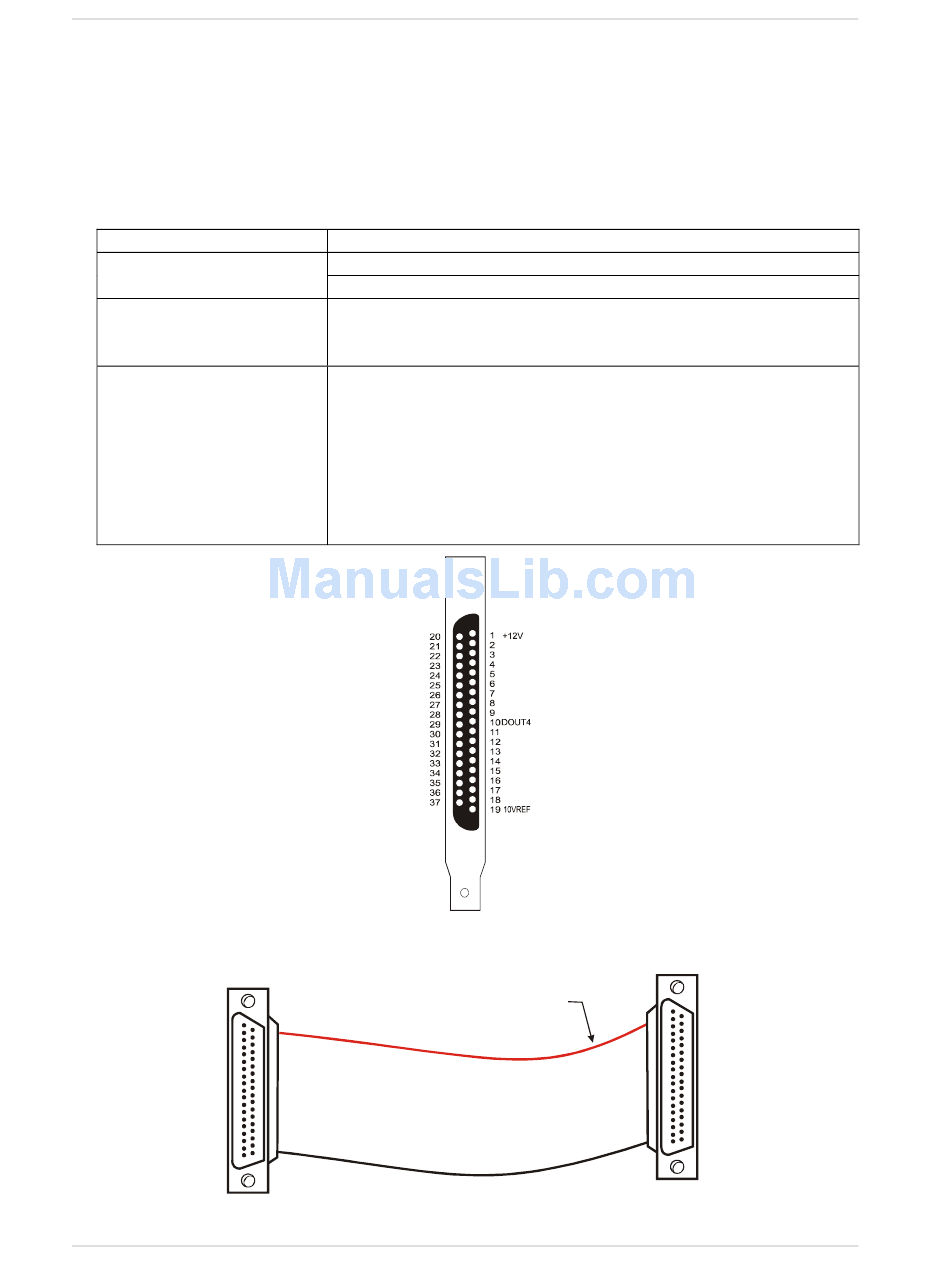

Figure 2-1. 37-pin connector pinout
20
37
Figure 2-2. C37FF-x cable
CTR1 CLK
CTR1 OUT
CTR2 CLK
CTR2 OOUT
CTR3 OUT
DOUT1
DOUT2
DOUT3
DGND
LLGND
LLGND
LLGND
LLGND
LLGND
LLGND
LLGND
The red stripe
identifies pin # 1
2-4
Installing the PCI-DAS08
Figure 2-3
).
1
20
37
19
