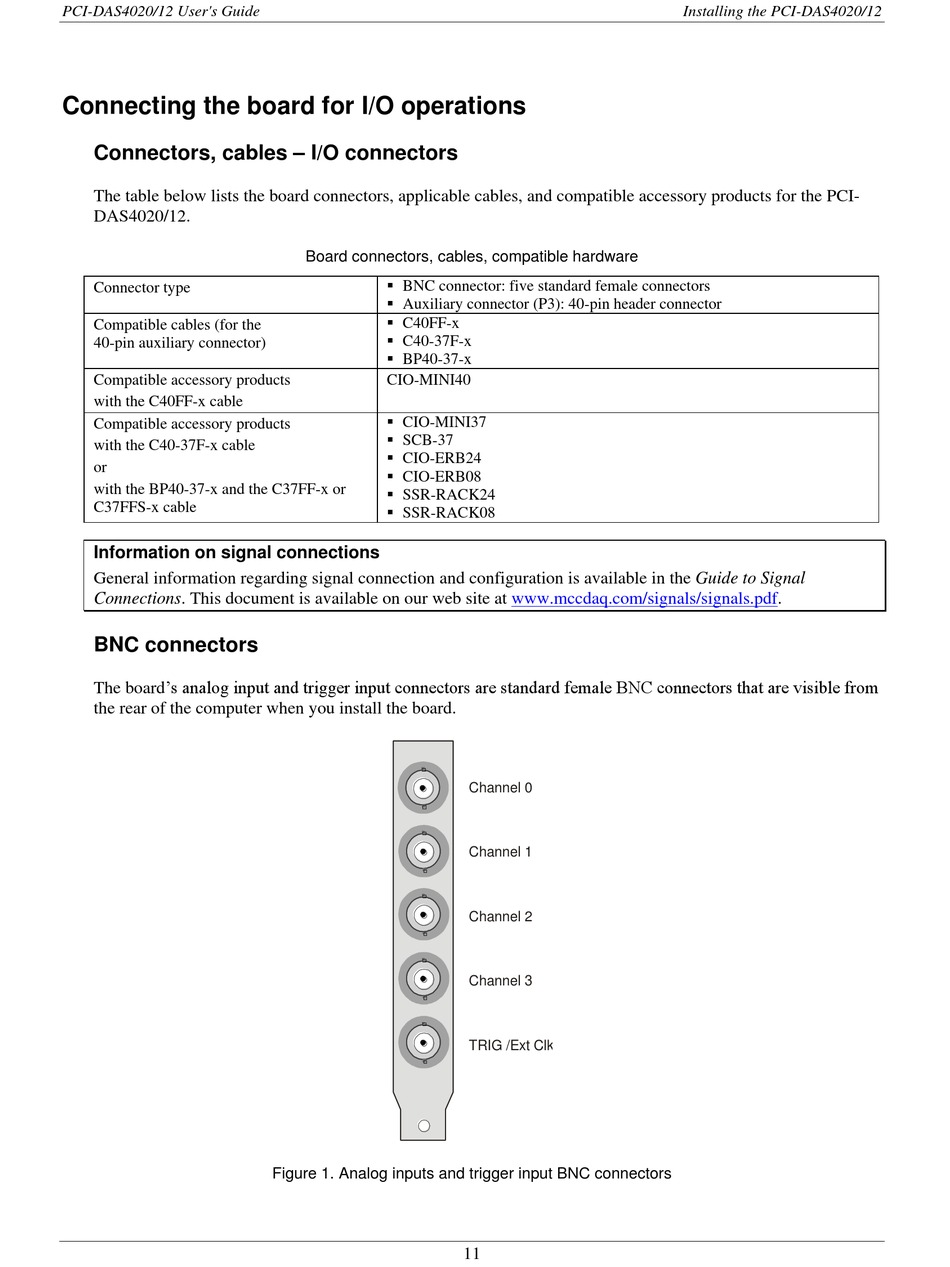

Connecting the board for I/O operations

Connectors, cables – I/O connectors
The table below lists the board connectors, applicable cables, and compatible accessory products for the PCI-
DAS4020/12.
Connector type
Compatible cables (for the
40-pin auxiliary connector)
Compatible accessory products
with the C40FF-x cable
Compatible accessory products
with the C40-37F-x cable
or
with the BP40-37-x and the C37FF-x or
C37FFS-x cable
Information on signal connections
General information regarding signal connection and configuration is available in the Guide to Signal
Connections. This document is available on our web site at www.mccdaq.com/signals/signals.pdf.

BNC connectors

The board's analog input and trigger input connectors are standard female BNC connectors that are visible from
the rear of the computer when you install the board.
Board connectors, cables, compatible hardware
 BNC connector: five standard female connectors
 Auxiliary connector (P3): 40-pin header connector
 C40FF-x
 C40-37F-x
 BP40-37-x
CIO-MINI40
 CIO-MINI37
 SCB-37
 CIO-ERB24
 CIO-ERB08
 SSR-RACK24
 SSR-RACK08
Figure 1. Analog inputs and trigger input BNC connectors
Channel 0
Channel 1
Channel 2
Channel 3
TRIG /Ext Clk
