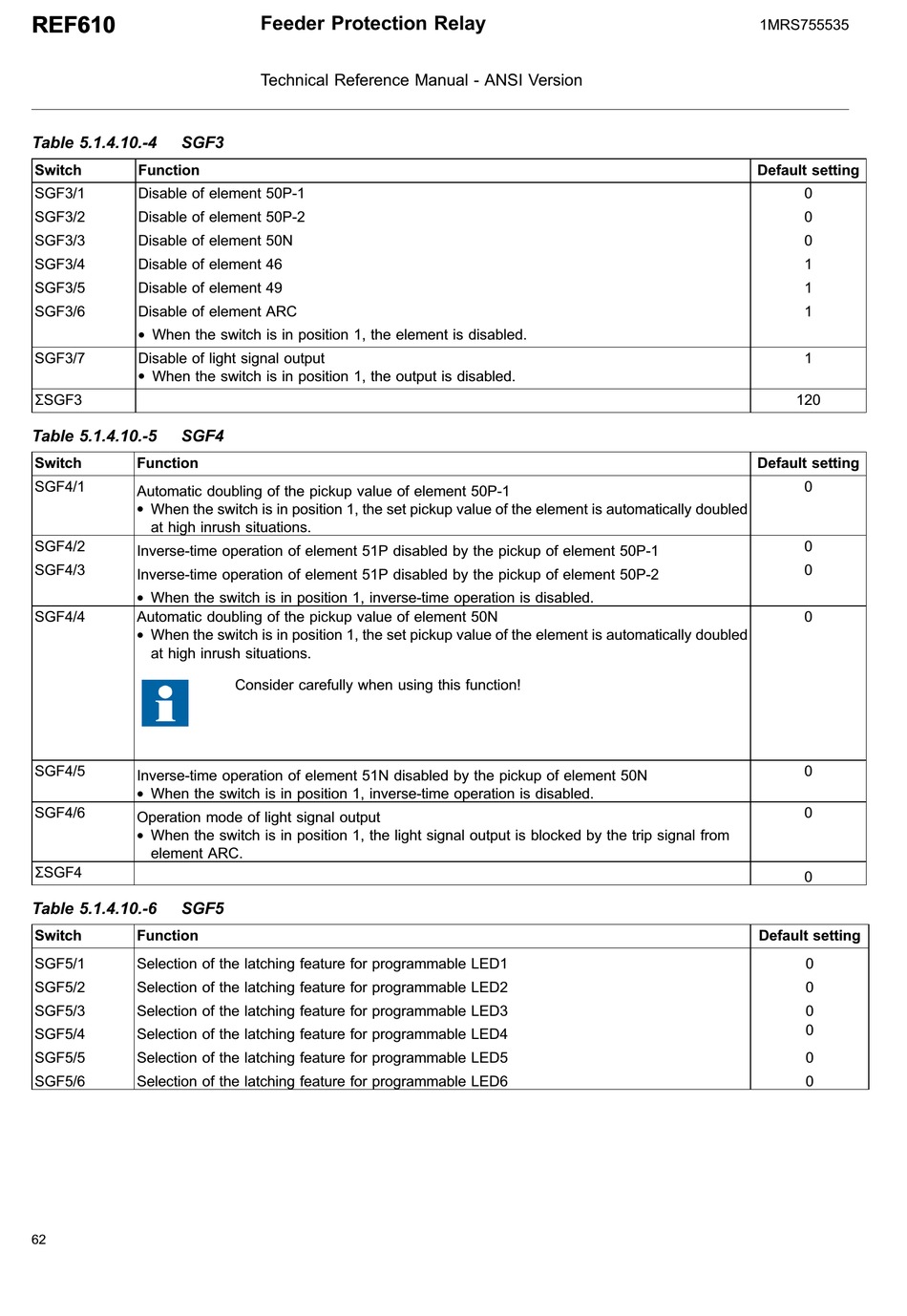

Table 5.1.4.10.-4

SGF3

Switch Function
SGF3/1 Disable of element 50P-1
SGF3/2 Disable of element 50P-2
SGF3/3 Disable of element 50N
SGF3/4 Disable of element 46
SGF3/5 Disable of element 49
SGF3/6 Disable of element ARC
When the switch is in position 1, the element is disabled.
*
SGF3/7 Disable of light signal output
When the switch is in position 1, the output is disabled.
*
ΣSGF3
Table 5.1.4.10.-5

SGF4

Switch Function
SGF4/1
Automatic doubling of the pickup value of element 50P-1
When the switch is in position 1, the set pickup value of the element is automatically doubled
*
at high inrush situations.
SGF4/2
Inverse-time operation of element 51P disabled by the pickup of element 50P-1
SGF4/3
Inverse-time operation of element 51P disabled by the pickup of element 50P-2
When the switch is in position 1, inverse-time operation is disabled.
*
SGF4/4 Automatic doubling of the pickup value of element 50N
When the switch is in position 1, the set pickup value of the element is automatically doubled
*
at high inrush situations.
SGF4/5
Inverse-time operation of element 51N disabled by the pickup of element 50N
When the switch is in position 1, inverse-time operation is disabled.
*
SGF4/6
Operation mode of light signal output
When the switch is in position 1, the light signal output is blocked by the trip signal from
*
element ARC.
ΣSGF4
Table 5.1.4.10.-6

SGF5

Switch Function
SGF5/1 Selection of the latching feature for programmable LED1
SGF5/2 Selection of the latching feature for programmable LED2
SGF5/3 Selection of the latching feature for programmable LED3
SGF5/4 Selection of the latching feature for programmable LED4
SGF5/5 Selection of the latching feature for programmable LED5
SGF5/6 Selection of the latching feature for programmable LED6
62
Feeder Protection Relay
Technical Reference Manual - ANSI Version
Consider carefully when using this function!
1MRS755535
Default setting
0
0
0
1
1
1
1
120
Default setting
0
0
0
0
0
0
0
Default setting
0
0
0
0
0
0
