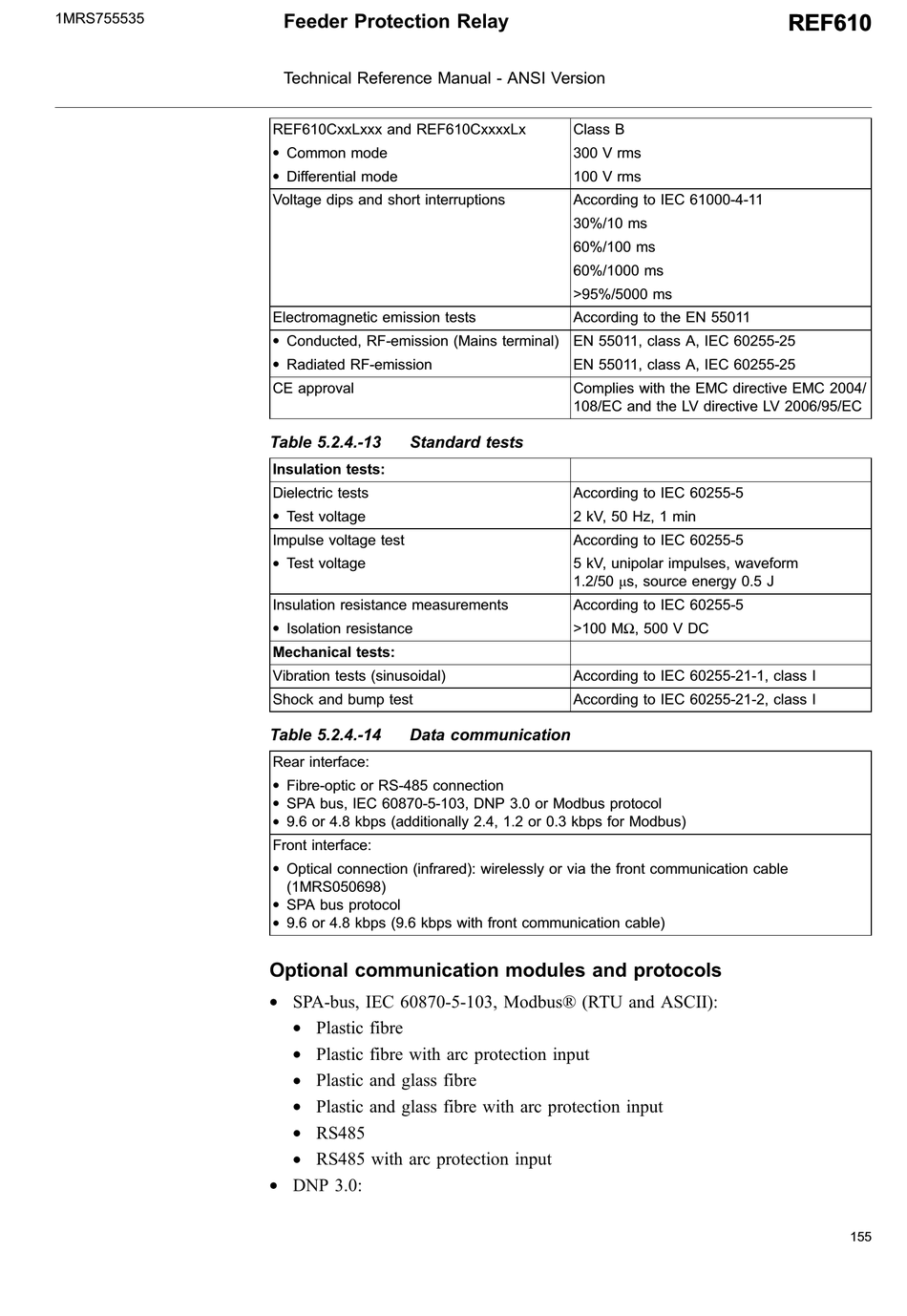

1MRS755535
Feeder Protection Relay
Technical Reference Manual - ANSI Version
REF610CxxLxxx and REF610CxxxxLx
Common mode
*
Differential mode
*
Voltage dips and short interruptions
Electromagnetic emission tests
Conducted, RF-emission (Mains terminal) EN 55011, class A, IEC 60255-25
*
Radiated RF-emission
*
CE approval
Table 5.2.4.-13

Standard tests

Insulation tests:
Dielectric tests
Test voltage
*
Impulse voltage test
Test voltage
*
Insulation resistance measurements
Isolation resistance
*
Mechanical tests:
Vibration tests (sinusoidal)
Shock and bump test
Table 5.2.4.-14

Data communication

Rear interface:
Fibre-optic or RS-485 connection
*
SPA bus, IEC 60870-5-103, DNP 3.0 or Modbus protocol
*
9.6 or 4.8 kbps (additionally 2.4, 1.2 or 0.3 kbps for Modbus)
*
Front interface:
Optical connection (infrared): wirelessly or via the front communication cable
*
(1MRS050698)
SPA bus protocol
*
9.6 or 4.8 kbps (9.6 kbps with front communication cable)
*

Optional communication modules and protocols

SPA-bus, IEC 60870-5-103, Modbus® (RTU and ASCII):
*
Plastic fibre
*
Plastic fibre with arc protection input
*
Plastic and glass fibre
*
Plastic and glass fibre with arc protection input
*
RS485
*
RS485 with arc protection input
*
DNP 3.0:
*
Class B
300 V rms
100 V rms
According to IEC 61000-4-11
30%/10 ms
60%/100 ms
60%/1000 ms
>95%/5000 ms
According to the EN 55011
EN 55011, class A, IEC 60255-25
Complies with the EMC directive EMC 2004/
108/EC and the LV directive LV 2006/95/EC
According to IEC 60255-5
2 kV, 50 Hz, 1 min
According to IEC 60255-5
5 kV, unipolar impulses, waveform
1.2/50 μs, source energy 0.5 J
According to IEC 60255-5
>100 MΩ, 500 V DC
According to IEC 60255-21-1, class I
According to IEC 60255-21-2, class I
REF610 REF610
155
