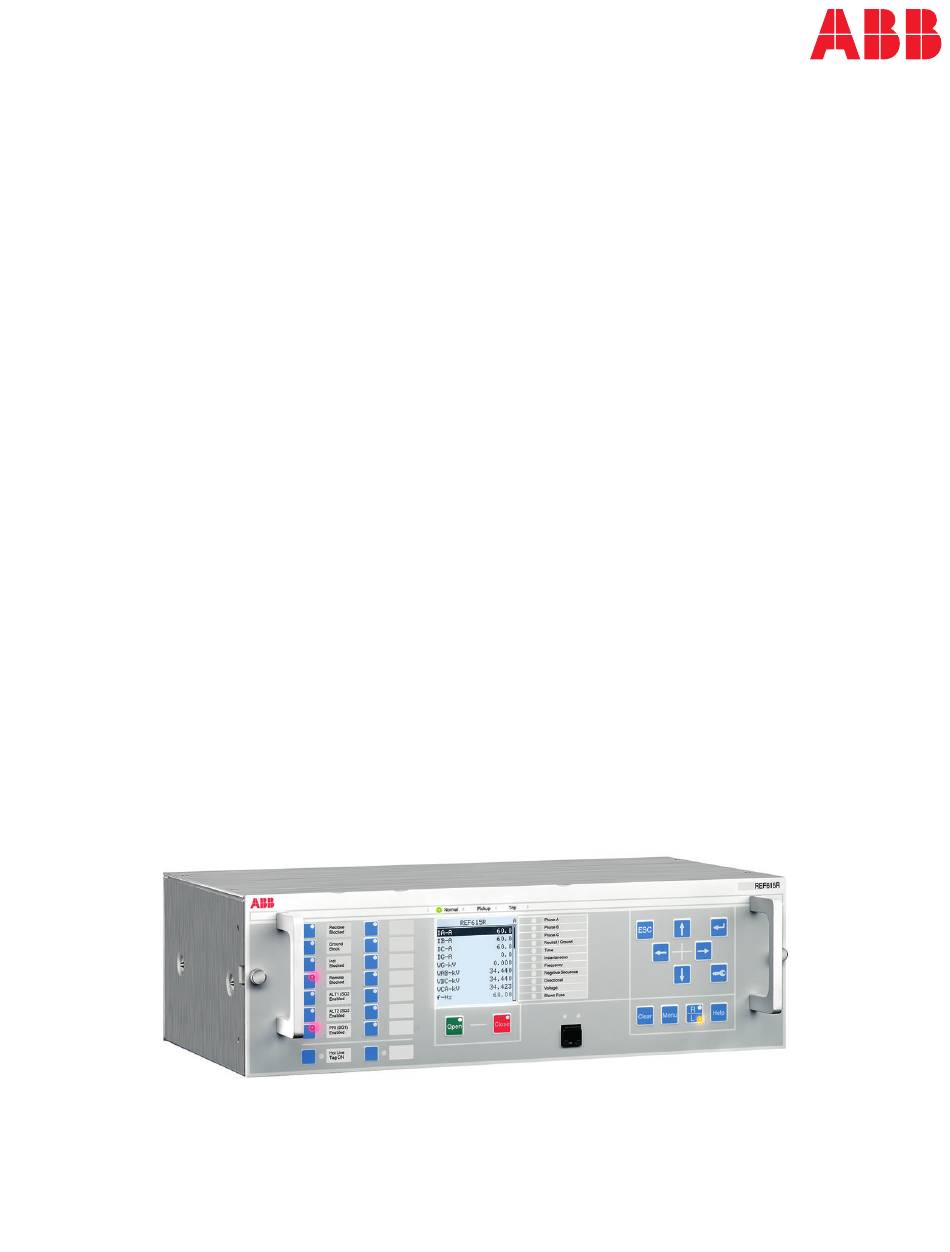

RELION® PROTECTION AND CONTROL
REF615R
DNP3 Communication Protocol Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RELION REF615R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABB RELION REF615R

Summary of Contents for ABB RELION REF615R

  • Page 1 — RELION® PROTECTION AND CONTROL REF615R DNP3 Communication Protocol Manual...
  • Page 3 Document ID: 1MRS240048-IB Issued: 2019-07-02 Revision: C Product version: 4.1 © Copyright 2019 ABB. All rights reserved...
  • Page 4 Copyright This document and parts thereof must not be reproduced or copied without written permission from ABB, and the contents thereof must not be imparted to a third party, nor used for any unauthorized purpose. The software or hardware described in this document is furnished under a license and may be used, copied, or disclosed only in accordance with the terms of such license.
  • Page 5 ABB is not liable for any such damages and/or losses.
  • Page 6 (Low-voltage directive 2006/95/EC). This conformity is the result of tests conducted by ABB in accordance with the product standards EN 50263 and EN 60255-26 for the EMC directive, and with the product standards EN 60255-1 and EN 60255-27 for the low voltage directive.

  • Page 7: Table Of Contents

    Table of contents Table of contents Section 1 Introduction................3 This manual....................3 Intended audience..................3 Product documentation................4 Product documentation set..............4 Document revision history..............4 Related documentation................4 Symbols and conventions.................5 Symbols....................5 Document conventions................ 5 Section 2 DNP3 overview..............7 DNP3 standard..................7 Physical layer..................7 Data link layer..................7 Transport pseudo-layer...............
  • Page 8 Table of contents Section 4 DNP3 parameters..............23 Parameter descriptions................23 Parameter list..................26 Section 5 Tolerances................29 DNP3 timing considerations..............29 Section 6 Glossary................31 REF615R Communication Protocol Manual...

  • Page 9: Section 1 Introduction

    Section 1 1MRS240048-IB C Introduction Section 1 Introduction This manual The communication protocol manual describes a communication protocol supported by the protection relay. The manual concentrates on vendor-specific implementations. Intended audience This manual addresses the communication system engineer or system integrator responsible for pre-engineering and engineering the communication setup in a substation from a protection relay's perspective.

  • Page 10: Product Documentation

    History A/2013-11-22 First release B/2016-10-24 Content updated to correspond to the product version C/2019-07-02 Content updated Download the latest documents from the ABB Web site http://www.abb.com/substationautomation. 1.3.3 Related documentation Name of the document Document ID DNP3 Point List Manual 1MRS240051-IB...

  • Page 11: Symbols And Conventions

    1MRS240048-IB C Introduction Product-specific point list manuals and other product series- and product-specific manuals can be downloaded from the ABB Web site http://www.abb.com/substationautomation. The purpose of this document is to describe specific configuration and interoperability information for an implementation of the Distributed Network Protocol, Version 3.0. This...
  • Page 12 Section 1 1MRS240048-IB C Introduction To navigate between the options, use • Menu paths are presented in bold. Select Main menu/Settings. • WHMI menu names are presented in bold. Click Information in the WHMI menu structure. • LHMI messages are shown in Courier font. To save the changes in nonvolatile memory, select Yes and press •...

  • Page 13: Section 2 Dnp3 Overview

    Section 2 1MRS240048-IB C DNP3 overview Section 2 DNP3 overview DNP3 standard The DNP3 protocol was developed by Westronic based on the early versions of the IEC 60870-5 standard telecontrol protocol specifications. Now the protocol specification is controlled by the DNP Users Group at www.dnp.org. The ISO/OSI based model supported by this protocol specifies physical, data link and application layers only.

  • Page 14: Transport Pseudo-Layer

    Section 2 1MRS240048-IB C DNP3 overview • Controlling all aspects of the physical layer. • In unsolicited reporting mode, performing collision avoidance/detection procedures to ensure reliable transfer of data across the physical link. • Responding to all valid frames received from the physical layer. Data link responsibilities: •...

  • Page 15: Application Layer Parameters

    Section 2 1MRS240048-IB C DNP3 overview 2.1.4 Application layer parameters When App layer confirm is disabled, the protection relay requests application confirmation for event messages only. When it is enabled, the protection relay also requests application confirmations for all the sent application. App confirm TO is the application layer confirmation timeout in milliseconds.

  • Page 17: Section 3 Vendor-Specific Implementation

    Section 3 1MRS240048-IB C Vendor-specific implementation Section 3 Vendor-specific implementation DNP3 link modes Serial and TCP/IP modes are available. They are mutually exclusive. 3.1.1 DNP3 data objects The DNP3 protocol in 615 series protection relays is built on top of the internal IEC 61850 data model.

  • Page 18: Dnp3 Tcp/Ip Mode

    Section 3 1MRS240048-IB C Vendor-specific implementation 3.1.3 DNP3 TCP/IP mode DNP3 TCP/IP link mode is supported by the protection relay. The protection relay listens for a connection from a DNP3 master on port 20000. A single DNP3 session can be run concurrently with IEC 61850, Modbus Serial and/or Modbus TCP.

  • Page 19: Crob Index (Point) Types

    Section 3 1MRS240048-IB C Vendor-specific implementation Table 3: Binary output status points Description Value Object number Default variation reported when variation 0 2 (BOS) requested (default setting) Table 4: Control relay output blocks Description Value Object number 3.2.2.1 CROB index (point) types There are two types of CROB points implemented in REF615R.

  • Page 20: Control Modes

    Section 3 1MRS240048-IB C Vendor-specific implementation GUID-82F9F441-DB86-4E50-BF3D-CD0AD842D4CA V1 EN Figure 2: Configuring SPCGGIO1 output 1 to be latch point with PCM600 For the complementary latch points, the supported control code includes: • 0x01 Momentary Relay (Pulse On/NUL) • 0x41 Close (Pulse On/Close) •...
  • Page 21 The Latch Off command sent to the even index point will be accepted but ignored [1] DNP3 Device Profile Document for ABB DPU2000R (DOCUMENT VERSION 1.10 MARCH 2005) [2] Network Mode Parameter 2 enables or disables Control Relay Output Block Paired Point operation. When enabled, this setting facilitates compatibility with earlier implementations of Paired Control Point operation in the device.

  • Page 22: Binary Output Status Points

    Section 3 1MRS240048-IB C Vendor-specific implementation (ABI). The control commands sent to the odd index points will work as the paired mode is disabled. For the complementary latch control points, the Momentary Relay (Pulse On), Trip and Latch On commands sent to the even index point will latch on that point, while the Close command sent to the even index point will latch on the next odd point (the even index +1 point).

  • Page 23: Analog Inputs

    Section 3 1MRS240048-IB C Vendor-specific implementation For example, a DNP3 control command may be blocked through hardware or software mechanisms; in this case, the actual status value would indicate the control failed because of the blocking. Looping CROB actual status values as BIs has several advantages. •...

  • Page 24: Analog Data Scaling

    Section 3 1MRS240048-IB C Vendor-specific implementation The analog input event buffer size is set to 150. Events that occur after buffer overflow are discarded. Table 7: Analog inputs Description Values Static (steady-state) object number Static variation reported when variation 0 requested 2 (16-bit analog input) (default setting) Change event object number...

  • Page 25: Fault Record Time Stamp

    Section 3 1MRS240048-IB C Vendor-specific implementation Only integer values are supported in DNP3 analog inputs. To keep the two decimals of a floating point analog input (for example current, voltage and power), the Multiplicative mode is selected, and the default multiplication factor “destMaxVal” set to 100 and offset “destMinVal”...

  • Page 26: Dnp3 Points

    Section 3 1MRS240048-IB C Vendor-specific implementation DNP3 points 3.3.1 Point configuration The DNP3 point map is configurable in PCM600. All points in the protection relay may be remapped. In PCM600, the unmapped points in the variables list on the left may be inserted to the active point list on the right.
  • Page 27 Section 3 1MRS240048-IB C Vendor-specific implementation Table 9: DNP3 point map configuration Configuration Description None Integrity class 0 scan returns gap. Value is available only via static scan. Point does not generate events. Class 0 Point is returned in the class 0 scan. Point does not generate events.

  • Page 29: Section 4 Dnp3 Parameters

    Section 4 1MRS240048-IB C DNP3 parameters Section 4 DNP3 parameters Parameter descriptions Link parameters DNP physical layer configures DNP3 for the TCP/IP or serial channel. Unit address is the slave 16 bit link address. This value should be set between 1 and 65519, since DNP3 reserves the top 16 addresses.
  • Page 30 Section 4 1MRS240048-IB C DNP3 parameters Application layer parameters App layer confirm When disabled, the protection relay requests application confirmation to event messages only. When enabled, the protection relay also requests application confirmations to all application messages sent. App confirm TO is the application layer confirmation timeout in milliseconds. Application layer confirmations received from the master after App confirm TO has expired are not acknowledged by the protection relay.
  • Page 31 Section 4 1MRS240048-IB C DNP3 parameters expected to send the Enable/Disable Unsolicited messages command to the protection relay. When Legacy master UR is enabled, the protection relay does not send the initial unsolicited message. Unsolicited responses are sent without the need of the Enable Unsolicited command.

  • Page 32: Parameter List

    Section 4 1MRS240048-IB C DNP3 parameters DNP3 Obj N Default variation option Variation description 32 bit analog input 16 bit analog input 32 bit analog input without flag 16 bit analog input without flag 32 bit analog input event 16 bit analog input event 32 bit analog input event with time 16 bit analog input event with time Deadbanding of the analog static values cannot be set in DNP3.
  • Page 33 Section 4 1MRS240048-IB C DNP3 parameters Table 11: DNP3 settings Parameter Values (Range) Unit Step Default Description DNP physical layer 1=Serial 2=TCP/IP DNP physical layer 2=TCP/IP Unit address 1...65519 DNP unit address Master address 1...65519 DNP master and UR address Serial port 0=Not in use 0=Not in use...
  • Page 34 Section 4 1MRS240048-IB C DNP3 parameters Parameter Values (Range) Unit Step Default Description Legacy master SBO 1=Disable 1=Disable Legacy DNP Master SBO sequence number 2=Enable relax enable Default Var Obj 01 1...2 1=BI; 2=BI with status. Default Var Obj 02 1...2 1=BI event;...

  • Page 35: Section 5 Tolerances

    Section 5 1MRS240048-IB C Tolerances Section 5 Tolerances DNP3 timing considerations Table 12: The protection relay's worst-case error over the full operating temperature range Description Value Time base drift over a 10-minute interval 1.2 ms Maximum delay measurement error ±15 ms Maximum internal time reference error when set from ±100 ms the protocol...

  • Page 37: Section 6 Glossary

    Section 6 1MRS240048-IB C Glossary Section 6 Glossary 615 series Series of numerical protection and control relays for protection and supervision applications of utility substations, and industrial switchgear and equipment Accepted but ignored Analog input ANSI American National Standards Institute Binary input Binary output status Cyclical redundancy check...
  • Page 38 Section 6 1MRS240048-IB C Glossary Intelligent electronic device Internal indication (DNP3) International Standard Organization LHMI Local human-machine interface Modbus A serial communication protocol developed by the Modicon company in 1979. Originally used for communication in PLCs and RTU devices. Open systems interconnection PCM600 Protection and Control IED Manager Remote terminal unit...
  • Page 40 — ABB Distribution Solutions Distribution Automation P.O. Box 699 FI-65101 VAASA, Finland Phone +358 10 22 11 ABB Inc. 655 Century Point Lake Mary, FL 32746, USA Phone +1-800-222 1946 www.abb.com/mediumvoltage www.abb.com/relion www.abb.com/substationautomation © Copyright 2019 ABB. All rights reserved.
