LH
REMOVAL AND INSTALLATION (Continued)
(4) Remove front braking disk (rotor) from hub, by
pulling it straight off wheel mounting studs (Fig. 4).

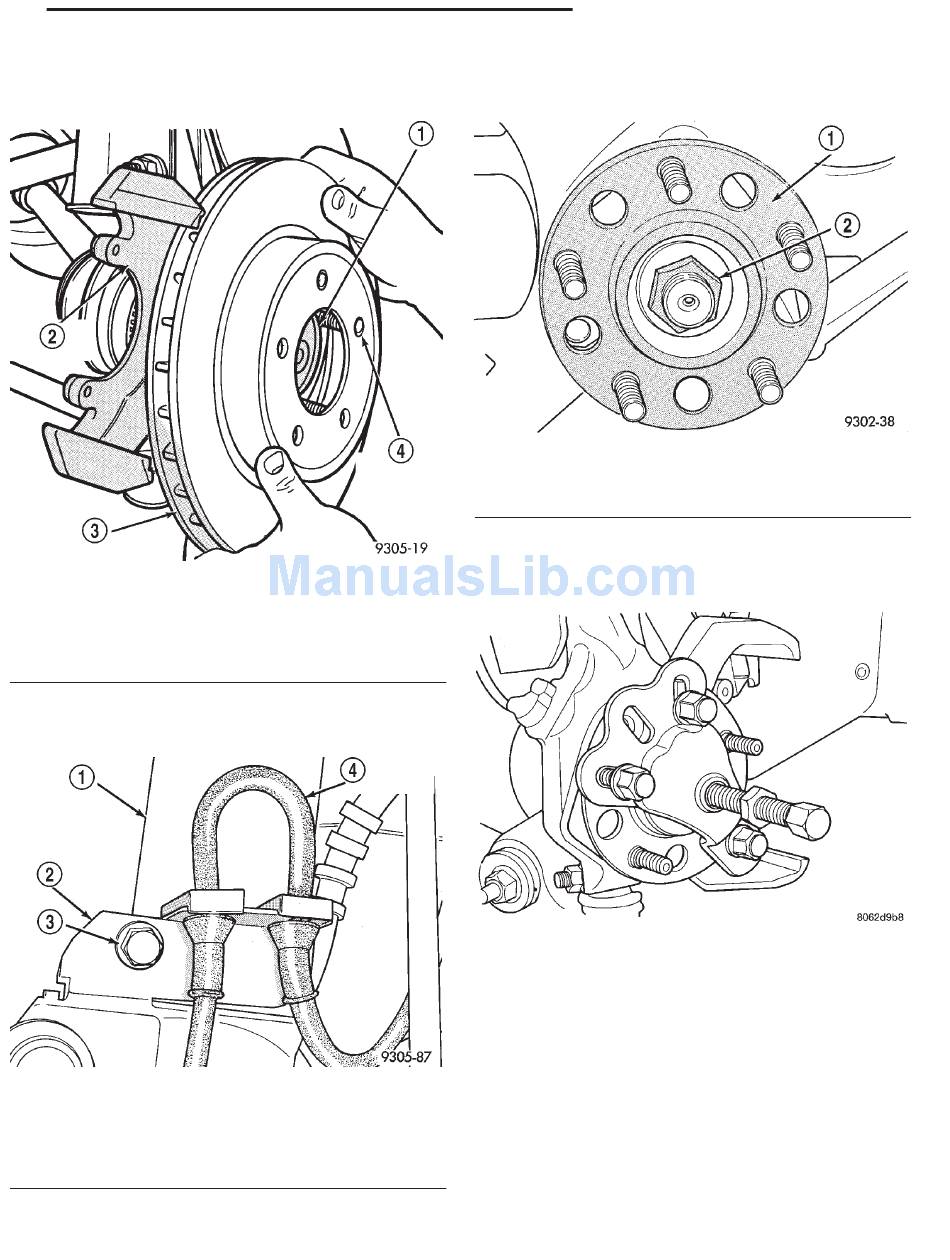

Fig. 4 Removing Braking Disc
1 – HUB
2 – STEERING KNUCKLE
3 – BRAKING DISC (ROTOR)
4 – WHEEL MOUNTING STUD
(5) Remove the speed sensor cable routing bracket
from the strut assembly (Fig. 5).
Fig. 5 Speed Sensor Cable Routing Bracket
1 – STRUT ASSEMBLY
2 – ROUTING BRACKET
3 – SCREW
4 – SPEED SENSOR CABLE
DIFFERENTIAL AND DRIVELINE
(6) Remove the hub and bearing to stub axle
retaining nut (Fig. 6).
Fig. 6 Hub And Bearing To Stub Axle Retaining Nut
1 – HUB/BEARING ASSEMBLY
2 – NUT
(7) Install Puller, Special Tool 6790 on hub and
bearing assembly (Fig. 7), using wheel lug nuts to
secure it in place.
Fig. 7 Puller Installed On Hub/Bearing Assembly
3 - 5
