2 - 52
SUSPENSION
REMOVAL AND INSTALLATION (Continued)

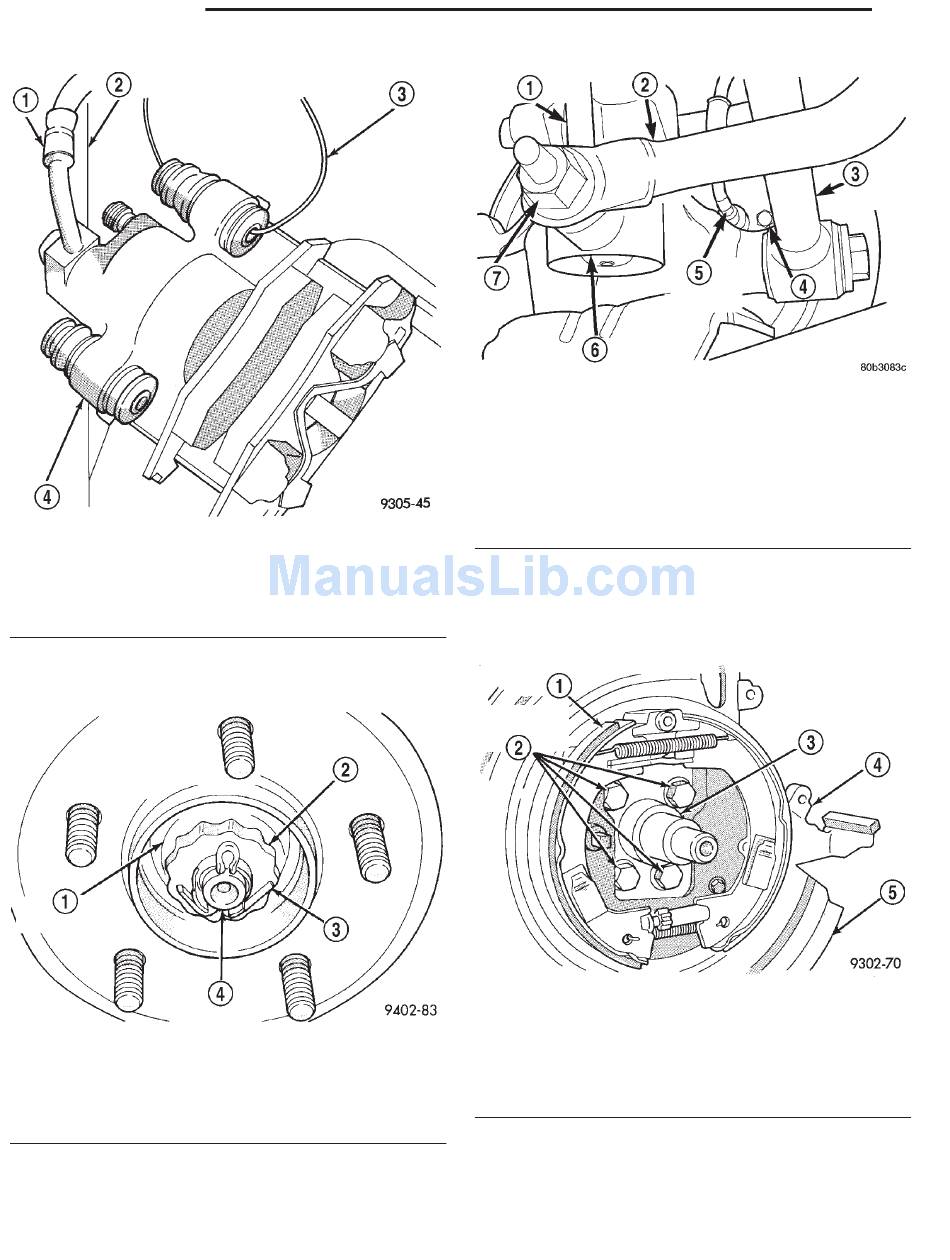

Fig. 13 Storing Caliper
1 – FLEX HOSE
2 – STRUT
3 – WIRE HANGER
4 – CALIPER ASSEMBLY
(Fig. 14). Then remove hub and bearing assembly
from spindle.
Fig. 14 Hub And Bearing Retaining Nut and Washer
1 – HUB RETAINING NUT
2 – NUT RETAINER
3 – COTTER PIN
4 – SPINDLE
(6) If vehicle is equipped with antilock brakes,
remove the speed sensor head from the rear disc
brake adapter (Fig. 15).
Fig. 15 Speed Sensor Head
1 – STABILIZER BAR LINK
2 – STABILIZER BAR
3 – LATERAL LINK
4 – BOLT
5 – WHEEL SPEED SENSOR
6 – STRUT ASSEMBLY
7 – NUT
(7) Remove the 4 bolts attaching the disc brake
adapter to the rear spindle (Fig. 16). Then remove
the adapter, disc shield, park brake shoes and park
brake cable as an assembly from the spindle.
Fig. 16 Disc Brake Adapter Mounting
1 – PARK BRAKE SHOES
2 – ADAPTER MOUNTING BOLTS
3 – SPINDLE
4 – ADAPTER
5 – DISC SHIELD
(8) Remove the bolt attaching the trailing arm to
the bracket on the bottom of the spindle (Fig. 17).
(9) Remove the bolt (Fig. 18) attaching the lateral
links to the spindle.
LH
