SERVICE PROCEDURES (Continued)
the vehicle. Install lug nuts on wheel attaching studs
to retain braking discs.

TIE DOWN LOCATIONS FOR FLAT BED TOWING

There are two reinforced elongated holes on each
side of the vehicle designed to serve as hold down
locations. These locations can safely hold the vehicle
to the towing device using T or R hooks.
• Bottom of the forward torque box between the
front frame rail and the rocker panel.
• Bottom of the rearward torque box forward of
the rear wheel.

FRONT TOWING PROCEDURES

CAUTION: Do Not tow vehicle from the front with
sling type towing device. Damage to bumper fascia
will result.
Always tow vehicle with front wheels off the
ground as shown (Fig. 4).

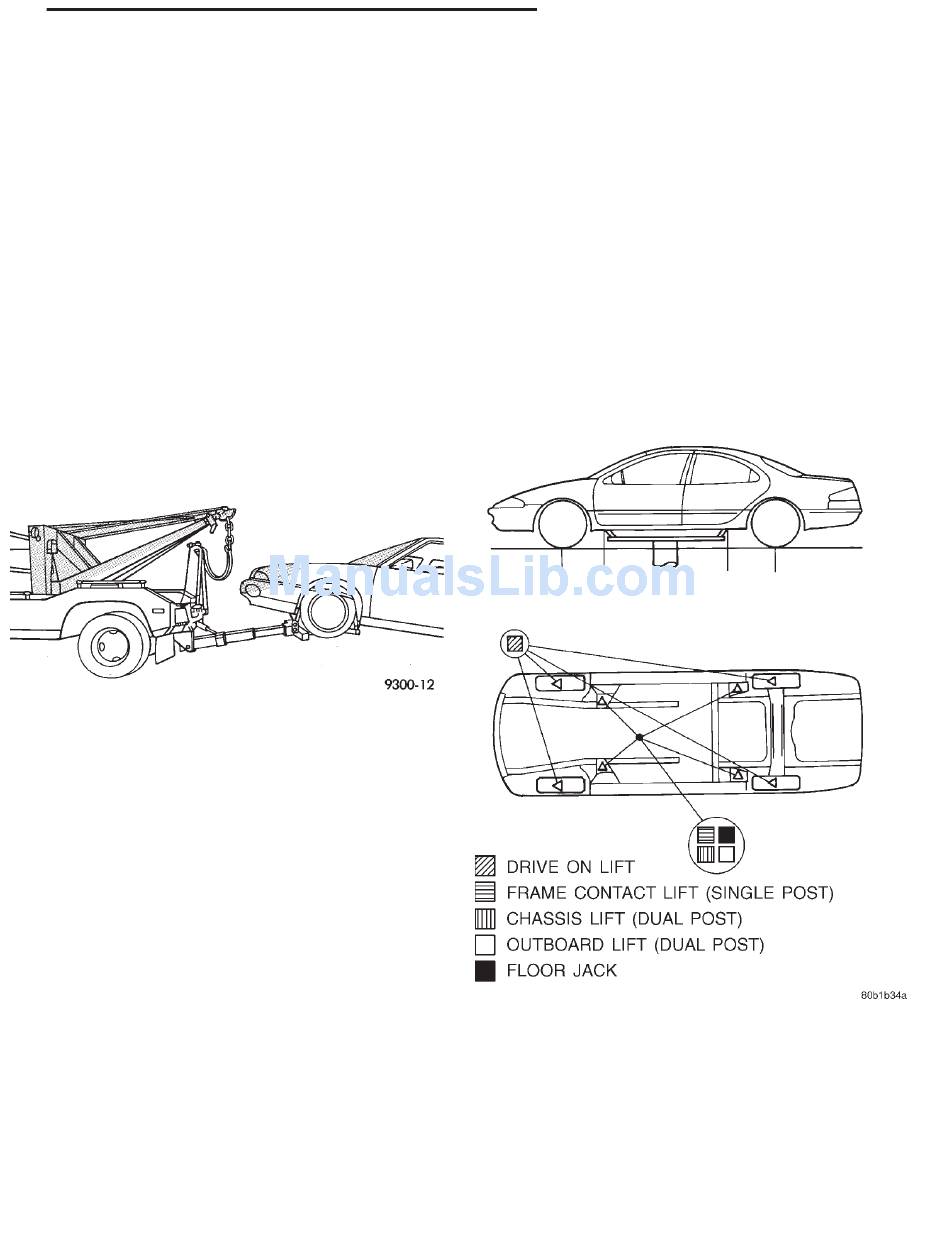

Fig. 4 Towing
Use a flat bed towing device when wheel lift tow-
ing device is not available.

REAR TOWING PROCEDURES

CAUTION: Do not tow vehicle with the rear end
lifted.
If damage to the vehicle prevents front towing, use
a flat bed towing device.
CAUTION: Do not push the vehicle with another
vehicle as damage to the bumper fascia and tran-
saxle can result.
LUBRICATION AND MAINTENANCE

HOISTING RECOMMENDATIONS

Refer to Owner's Manual provided with vehicle for
proper emergency jacking procedures.
WARNING: THE HOISTING AND JACK LIFTING
POINTS PROVIDED ARE FOR A COMPLETE VEHI-
CLE. WHEN THE ENGINE OR REAR SUSPENSION
IS REMOVED FROM A VEHICLE, THE CENTER OF
GRAVITY IS ALTERED MAKING SOME HOISTING
CONDITIONS UNSTABLE. PROPERLY SUPPORT OR
SECURE VEHICLE TO HOISTING DEVICE WHEN
THESE CONDITIONS EXIST.
CAUTION: Do not position hoisting device on sus-
pension components, damage to vehicle can result.
For proper hoisting and jacking points, refer to
(Fig. 5).
Fig. 5 Hoisting and Jacking Points
0 - 11
