Configuration Jumpers

The jumper is a small plastic-encased conductor (shorting plug) that slips
over two jumper pins. To change a jumper setting, use a jumper removal
tool, needle-nosed pliers, or your fingers to remove the jumper from its
current location. Position the jumper over the two pins for the desired
setting, and press it onto them. Be careful not to bend the pins.

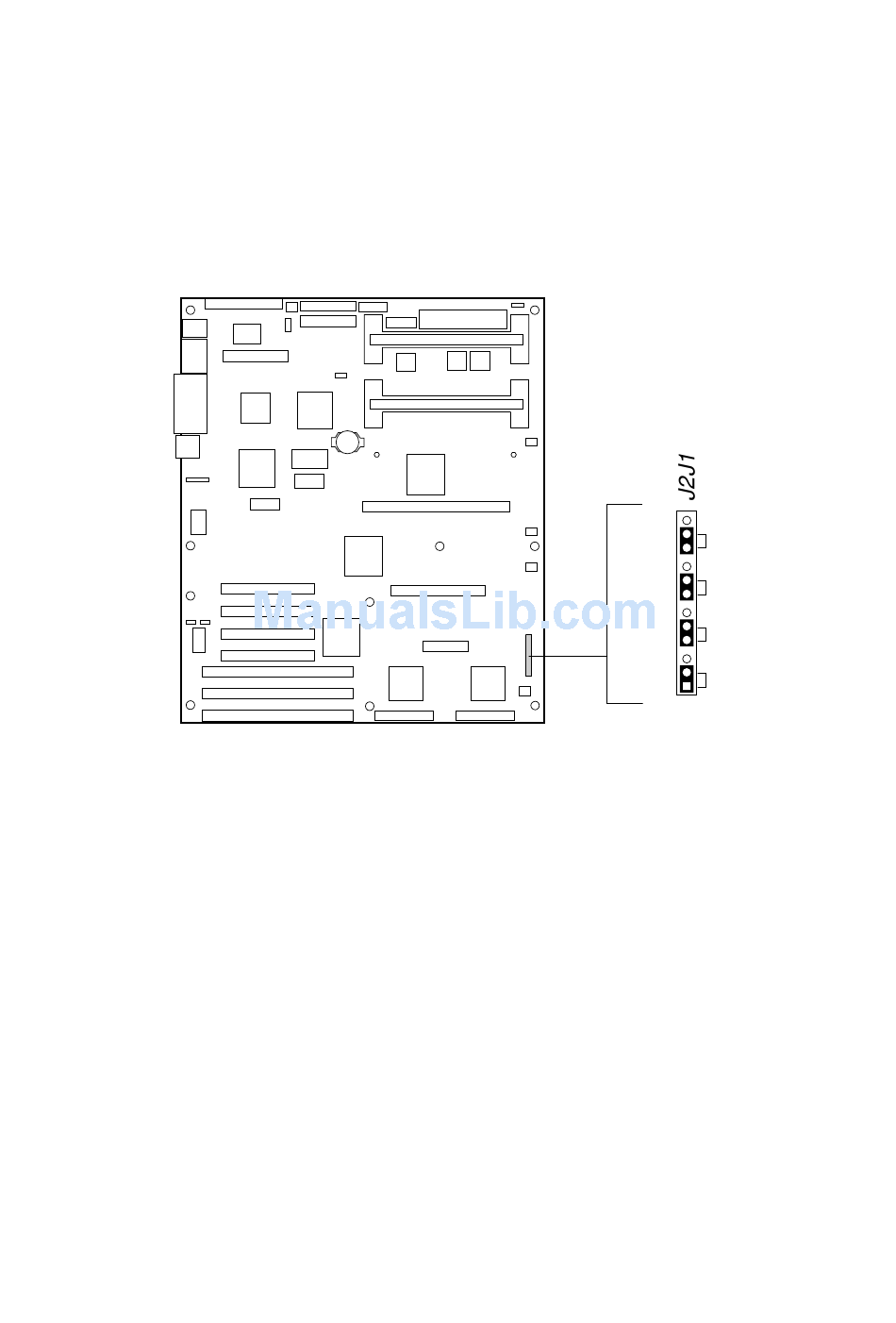

The figure below shows the default jumper settings.
178
Figure 8-1. System Board Jumpers
ENABLE
CPU
PROT
SPEED
RECVR
BOOT
NOR
OPT
CLR
PASS-
WORD PROT
CLR
CMOS
PROT
OM05777
Chapter 8 System Board Jumpers
