PICO300 Pico-ITX Board

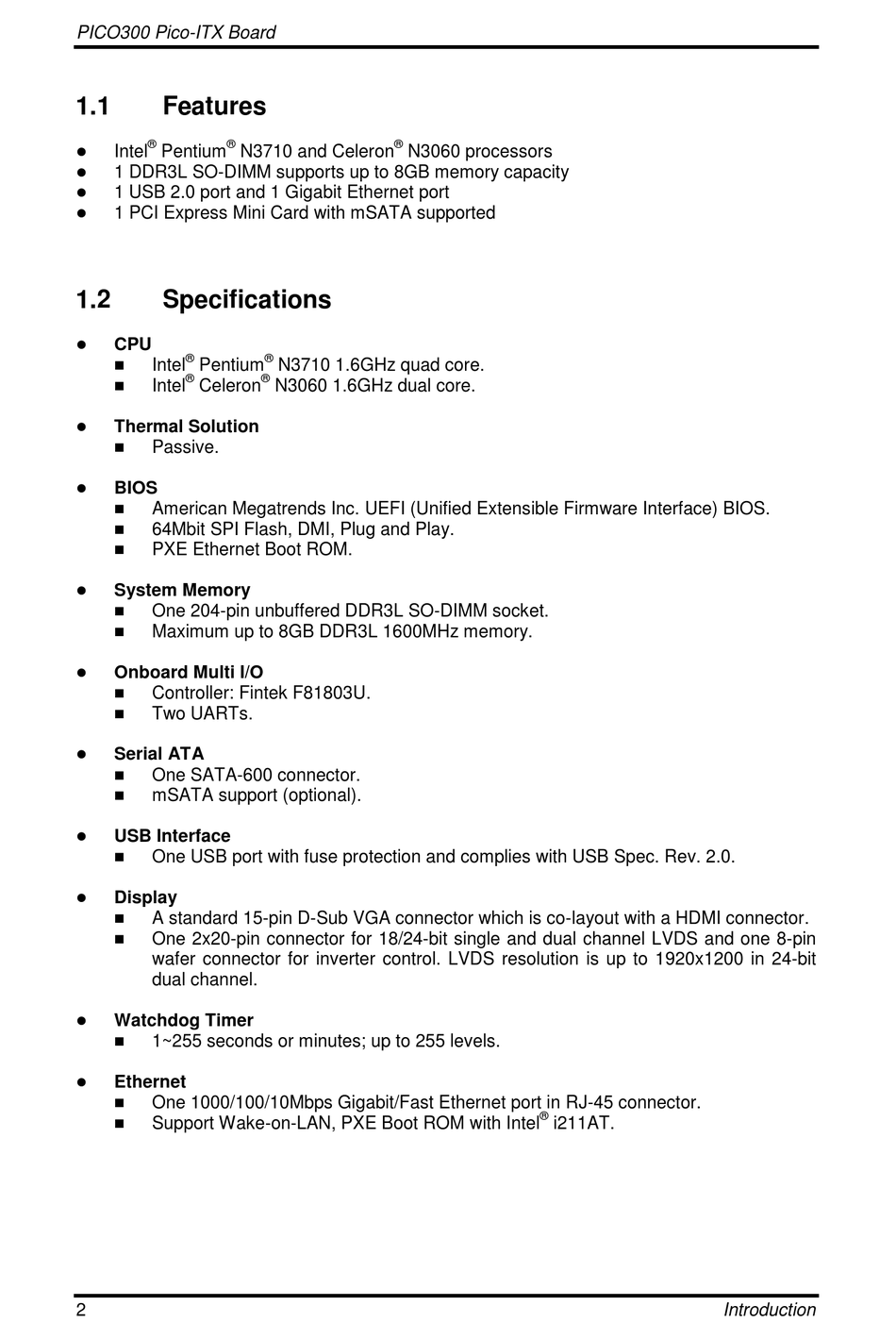

1.1

Features

® ®
 Intel Pentium N3710 and Celeron
 1 DDR3L SO-DIMM supports up to 8GB memory capacity
 1 USB 2.0 port and 1 Gigabit Ethernet port
 1 PCI Express Mini Card with mSATA supported
1.2

Specifications

 CPU
®

Intel Pentium
®
 Intel Celeron
 Thermal Solution
 Passive.

BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
 64Mbit SPI Flash, DMI, Plug and Play.
 PXE Ethernet Boot ROM.
 System Memory

One 204-pin unbuffered DDR3L SO-DIMM socket.
 Maximum up to 8GB DDR3L 1600MHz memory.
 Onboard Multi I/O
 Controller: Fintek F81803U.
 Two UARTs.
 Serial ATA
 One SATA-600 connector.
 mSATA support (optional).
 USB Interface
 One USB port with fuse protection and complies with USB Spec. Rev. 2.0.
 Display
 A standard 15-pin D-Sub VGA connector which is co-layout with a HDMI connector.
 One 2x20-pin connector for 18/24-bit single and dual channel LVDS and one 8-pin
wafer connector for inverter control. LVDS resolution is up to 1920x1200 in 24-bit
dual channel.
 Watchdog Timer

1~255 seconds or minutes; up to 255 levels.
 Ethernet
 One 1000/100/10Mbps Gigabit/Fast Ethernet port in RJ-45 connector.
 Support Wake-on-LAN, PXE Boot ROM with Intel
2
®
N3060 processors
®
N3710 1.6GHz quad core.
®
N3060 1.6GHz dual core.
®
i211AT.
Introduction
