AXIOMTEK PICO821 Series Quick Installation Manual

PICO821 Series Quick Installation Guide

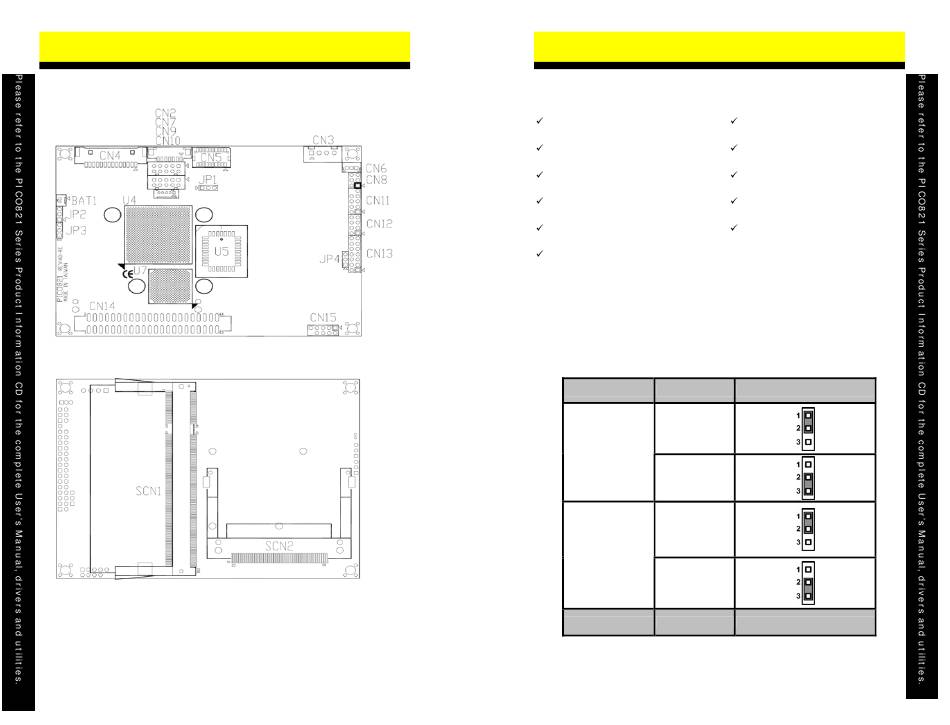

V. Board Layout

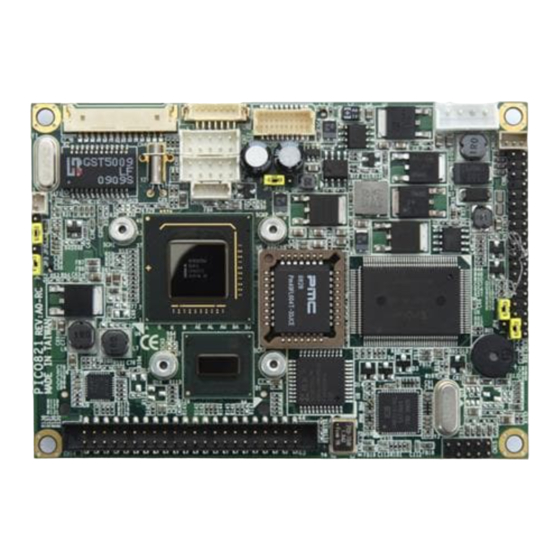

Component Side
SoldComponent Side
Solder Side
4
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 September 2009
Printed in Taiwan
9418H821010E
PICO821 Series Quick Installation Guide
I.
Checklist
PICO821 Pico-ITX Board x 1
Quick Installation Guide x 1
Product Information CD x 1
2-pin Jumper Cap, Pitch=2.0mm x 5
DVI-D kit x 1(Option)
LAN kit x 1(Option)
Note: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II.
Jumper Settings
Before applying the power to PICO821 Series, please make sure all
jumper settings are defaulted as the following table:
Description Function
Flat Panel 3.3V (Default)
Connector (CN5)
Voltage Selection :
JP1
5V
CMOS Clear : JP2 Normal (Default)
Clear CMOS
Description Function
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 September 2009
Printed in Taiwan
9418H821010E
Power Input Cable x 1(Option)
2xUSB Cable x 2(Option)
USB Client Cable x 1(Option)
Audio Cable x 1(Option)
COM + PS/2 Cable x 1(Option)
Jumper Setting
Jumper Setting
1
