PICO300 Pico-ITX Board

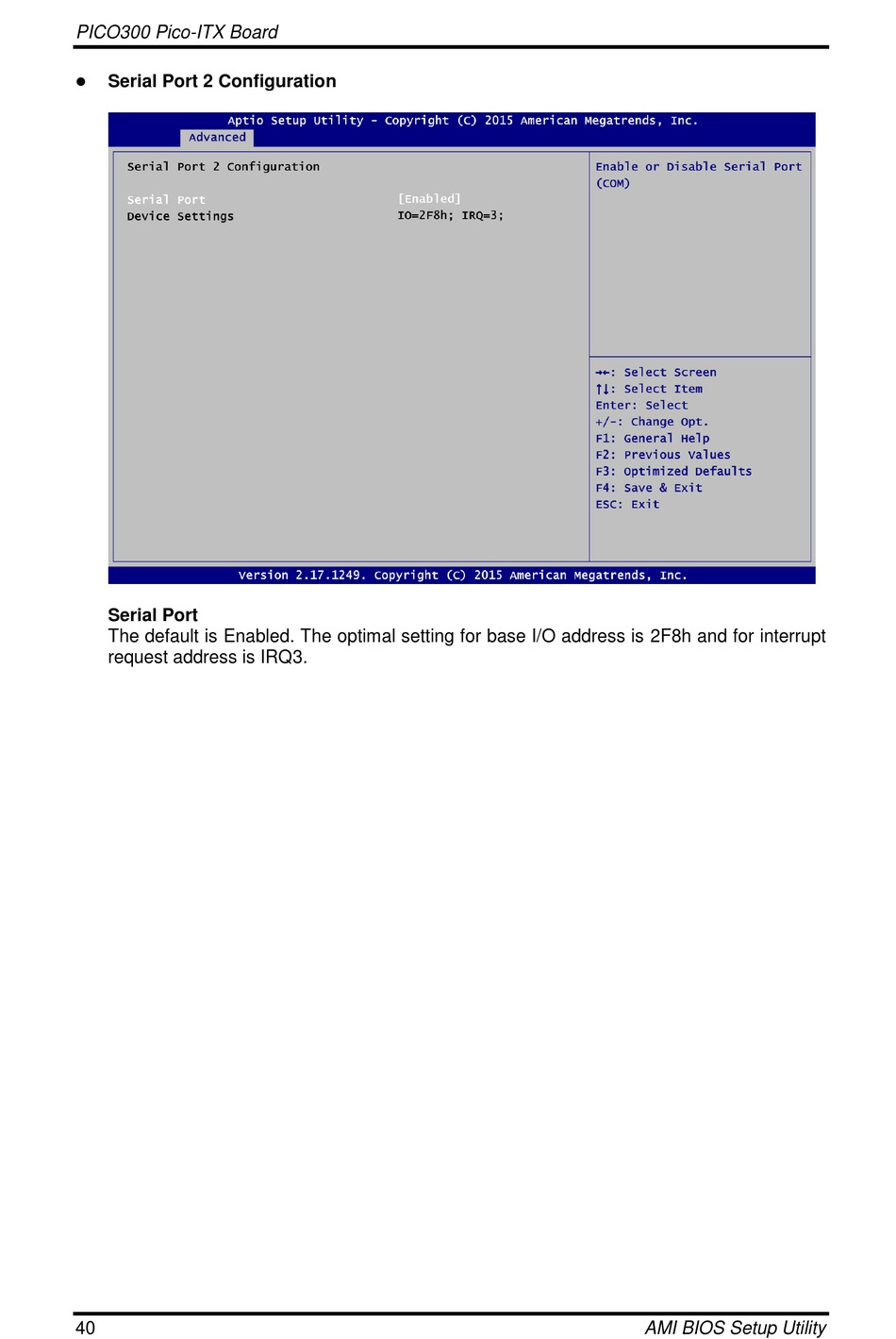

Serial Port 2 Configuration
Serial Port
The default is Enabled. The optimal setting for base I/O address is 2F8h and for interrupt
request address is IRQ3.
40
AMI BIOS Setup Utility
