PICO300 Pico-ITX Board
A.10

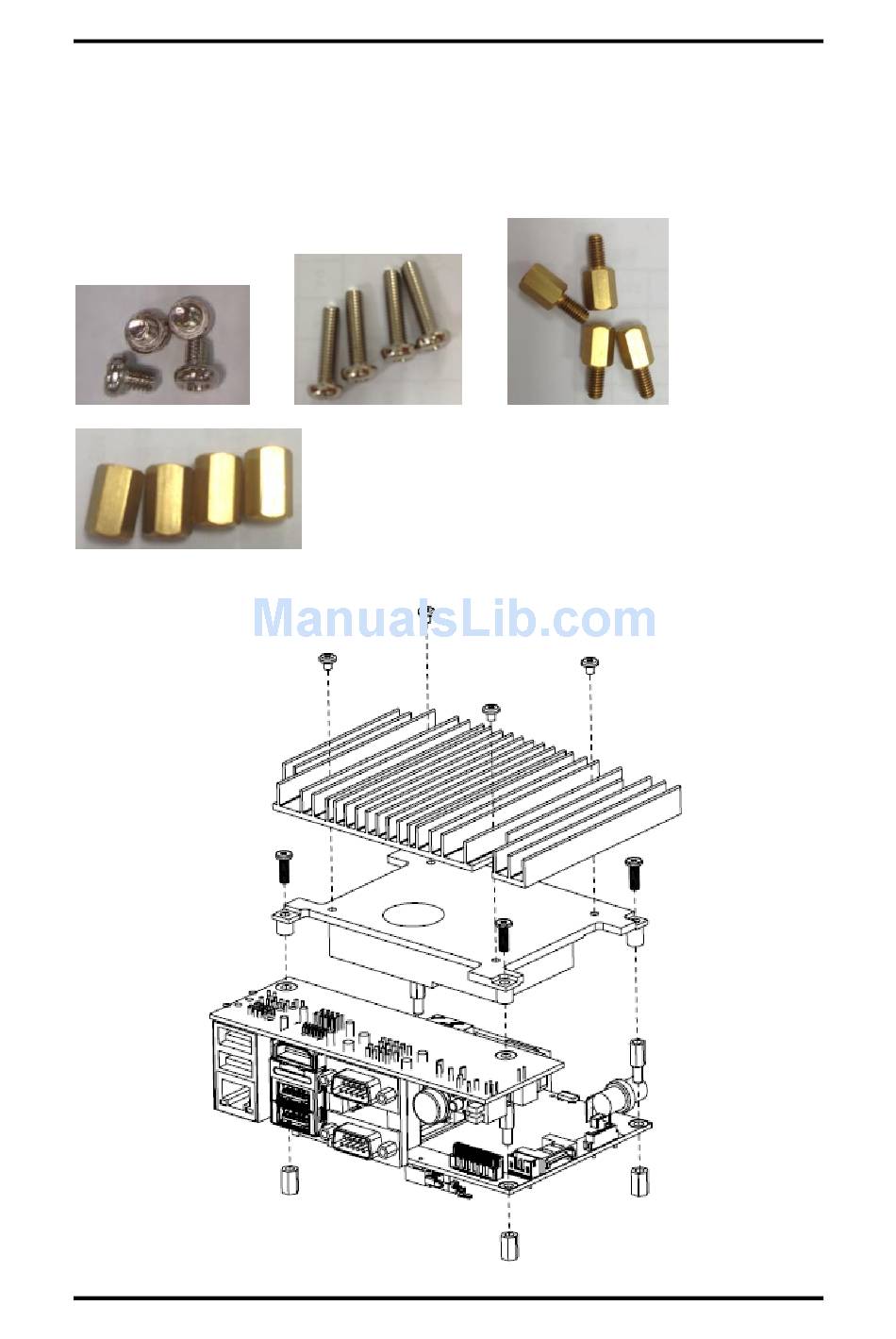

AX93276 Assembly Drawing
Installing Thermal Solution and I/O Board
Gently insert I/O Board into CN2 and CN3 on PICO300. Align and firmly secure the thermal
solution plate and I/O board to PICO300. Be careful not to over-tighten the screws.
x4
x4
x4
x4
I/O Boards (Optional)
67
