PICO300 Pico-ITX Board

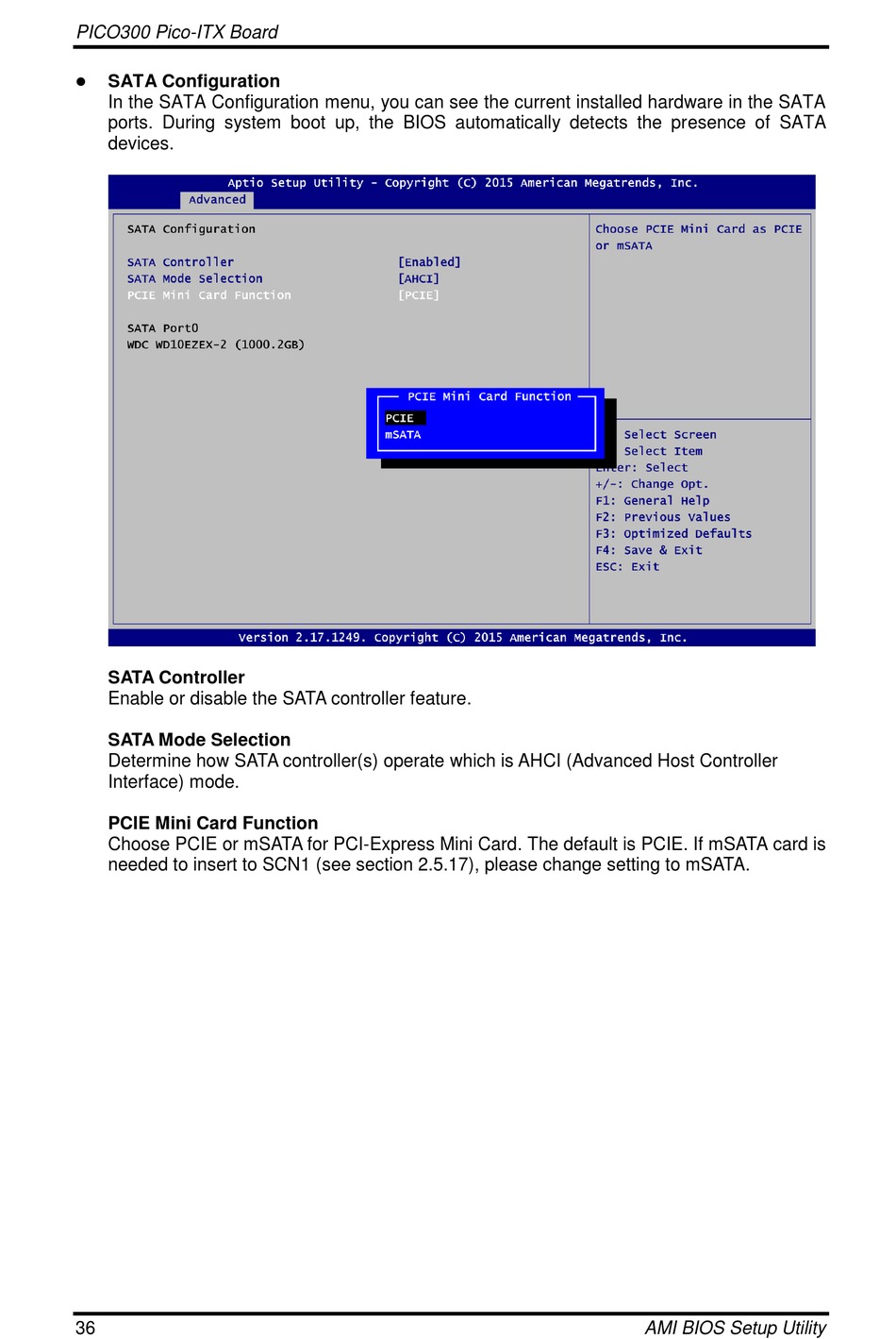

 SATA Configuration
In the SATA Configuration menu, you can see the current installed hardware in the SATA
ports. During system boot up, the BIOS automatically detects the presence of SATA
devices.
SATA Controller
Enable or disable the SATA controller feature.
SATA Mode Selection
Determine how SATA controller(s) operate which is AHCI (Advanced Host Controller
Interface) mode.
PCIE Mini Card Function
Choose PCIE or mSATA for PCI-Express Mini Card. The default is PCIE. If mSATA card is
needed to insert to SCN1 (see section 2.5.17), please change setting to mSATA.
