A.6

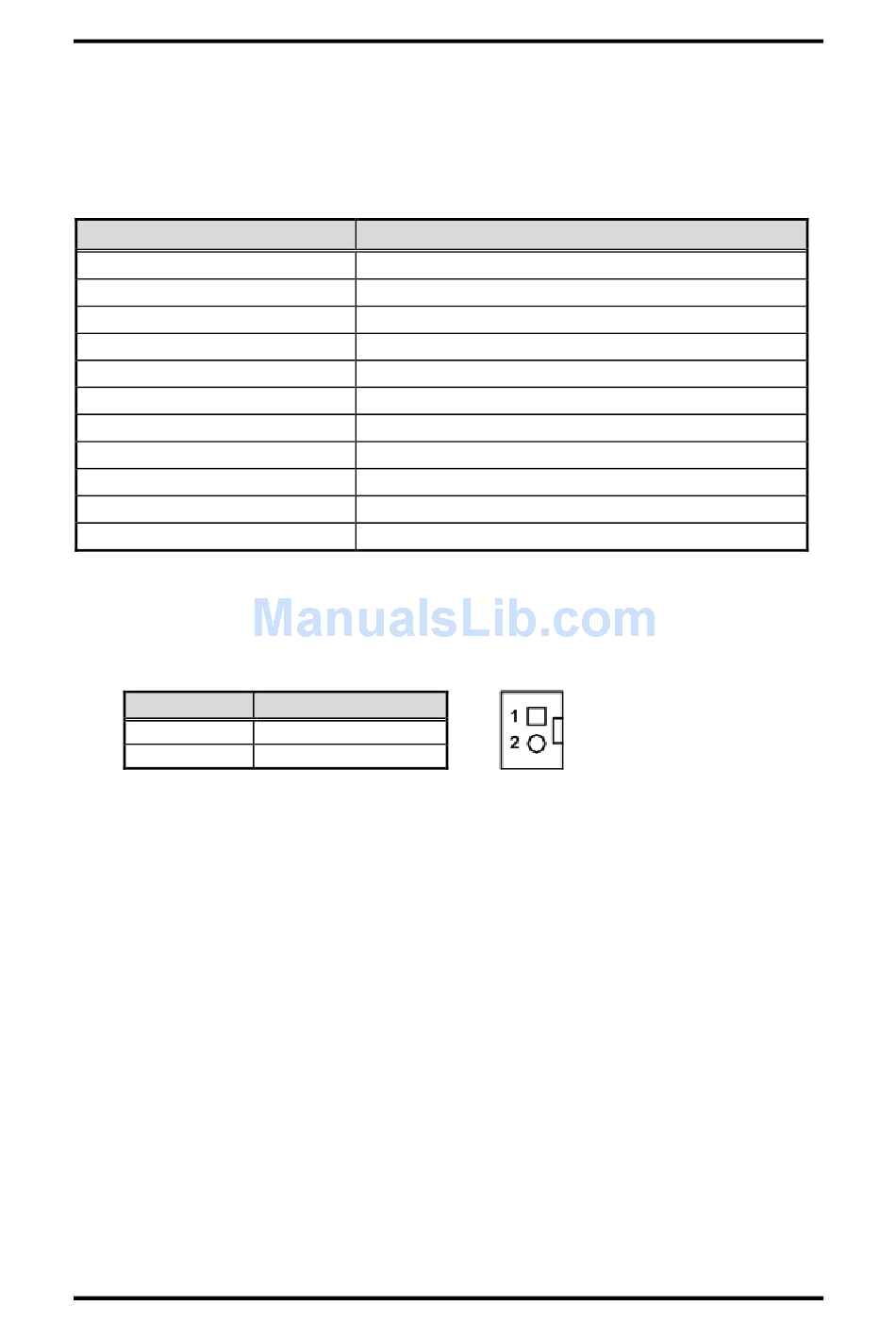

AX93275 Connectors, Switches and LED

Signals go to other parts of the system through connectors. Loose or improper connection
might cause problems, please make sure all connectors are properly and firmly connected.
Here is a summary table which shows all connectors, buttons and LED on the hardware.
Connector
CN1
CN2
CN3
CN4
CN5
CN6A
CN6B
CN7~CN8
CN9
CN10
D6
A.6.1

Power Connector (CN1)

This is a 2-pin (pitch=2.5mm) connector, which outputs +5V at 1A for fan to cool down
CPU and system temperature.
Pin
1
2
I/O Boards (Optional)
Description
Power Connector
High Speed Board to Board Connector 1
High Speed Board to Board Connector 2
COM2 Connector
System Power Switch
VGA D-Sub Connector
COM1 D-Sub Connector
USB 3.0 Stack Connectors
Audio Jack
System Reset Switch
Power and HDD LED Indicator
Signal
+5V
GND
PICO300 Pico-ITX Board
59
