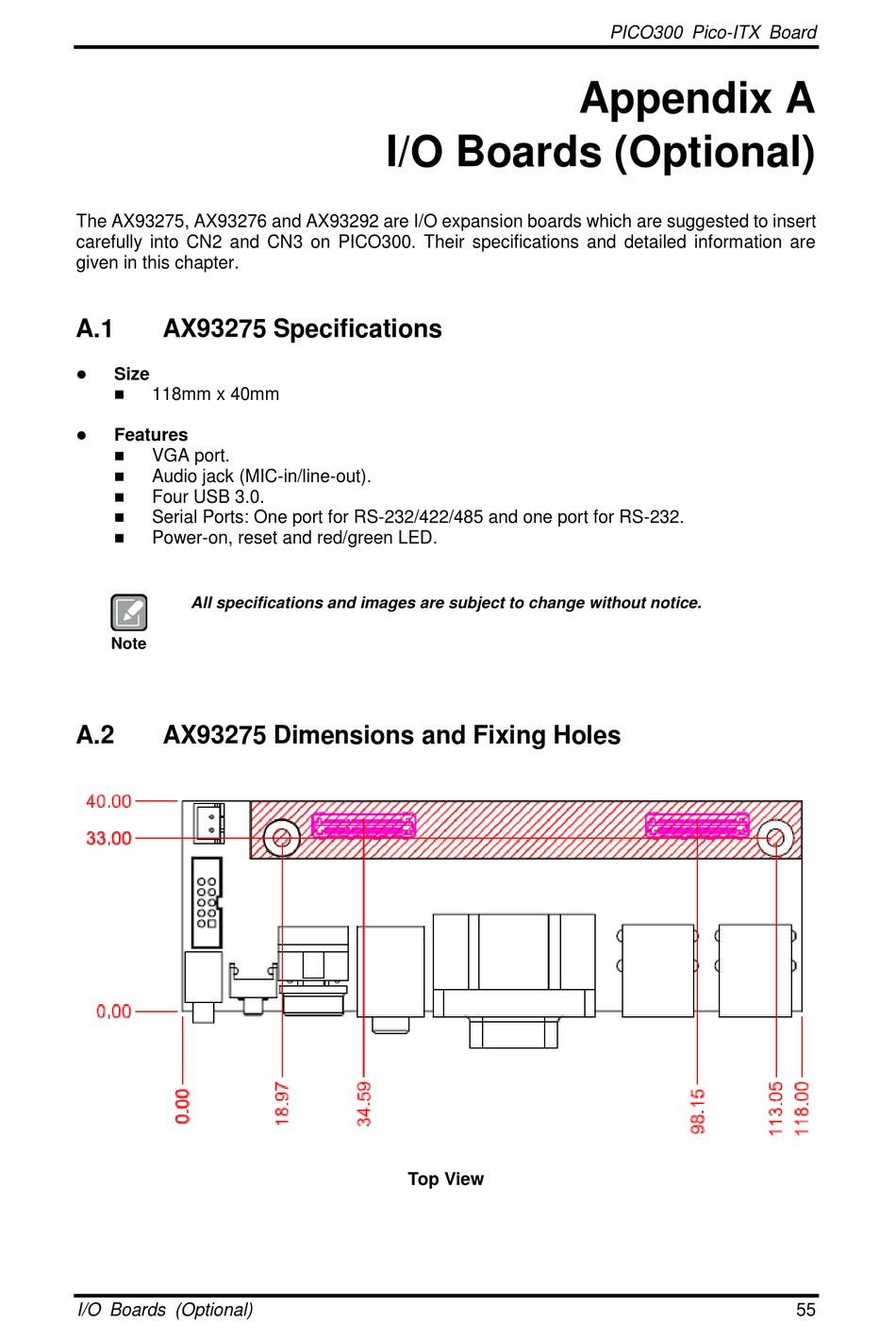

Appendix A I/O Boards (Optional); Ax93275 Specifications; Ax93275 Dimensions And Fixing Holes; A.1 Ax93275 Specifications - AXIOMTEK PICO300 User Manual

The AX93275, AX93276 and AX93292 are I/O expansion boards which are suggested to insert
carefully into CN2 and CN3 on PICO300. Their specifications and detailed information are
given in this chapter.
A.1

AX93275 Specifications

 Size

118mm x 40mm
 Features
 VGA port.
 Audio jack (MIC-in/line-out).
 Four USB 3.0.
 Serial Ports: One port for RS-232/422/485 and one port for RS-232.

Power-on, reset and red/green LED.
All specifications and images are subject to change without notice.
Note
A.2

AX93275 Dimensions and Fixing Holes

I/O Boards (Optional)
I/O Boards (Optional)
Top View
PICO300 Pico-ITX Board
