PICO300 Pico-ITX Board

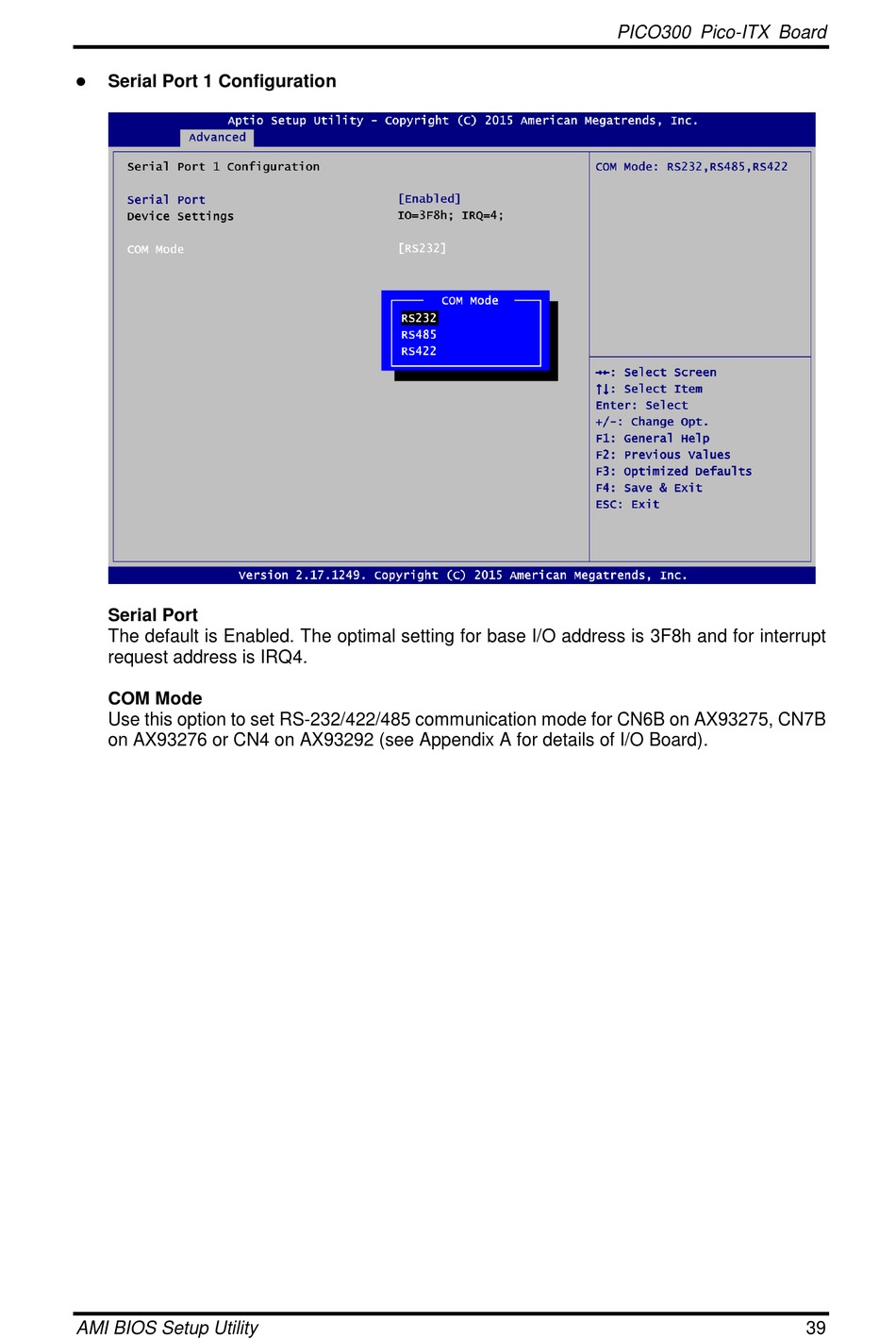

Serial Port 1 Configuration
Serial Port
The default is Enabled. The optimal setting for base I/O address is 3F8h and for interrupt
request address is IRQ4.
COM Mode
Use this option to set RS-232/422/485 communication mode for CN6B on AX93275, CN7B
on AX93276 or CN4 on AX93292 (see Appendix A for details of I/O Board).
AMI BIOS Setup Utility
39
