2.3

Assembly Drawing

For thermal dissipation, a thermal solution enables the PICO300's components to dissipate
heat efficiently. All heat generating components are thermally conducted to the heatsink in
order to avoid hot spots. Images below illustrate how to install the thermal solution on
PICO300.

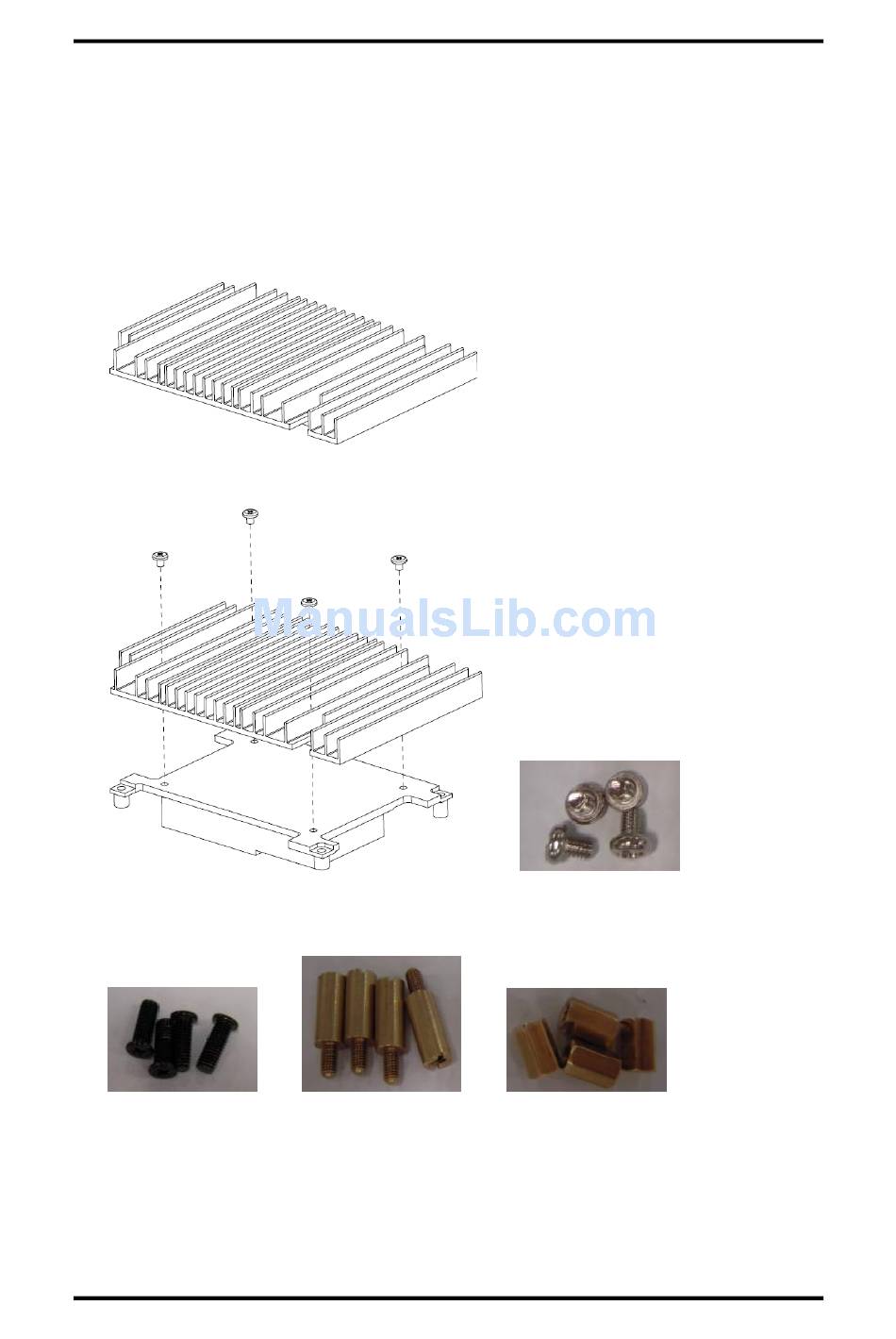

Heatsink for PICO300 (see image below):
1.
First of all, use the following four screws to secure heatsink on heatspreader.
2.
The PICO300 has four assembly holes for installing thermal solution. Align and firmly
3.
secure the plate to the PICO300. Be careful not to over-tighten the screws.
Board and Pin Assignments
x4
PICO300 Pico-ITX Board
x4
x4
x4 (8mm)
9
