A.13

AX93292 Specifications

 Size
 118mm x 29.25mm

Features
 Audio (MIC-in/line-out/line-in).

Four USB 2.0.
 Serial Ports: One port for RS-232/422/485 and one port for RS-232.
 Power-on, reset and power/HDD LED.
All specifications and images are subject to change without notice.
Note

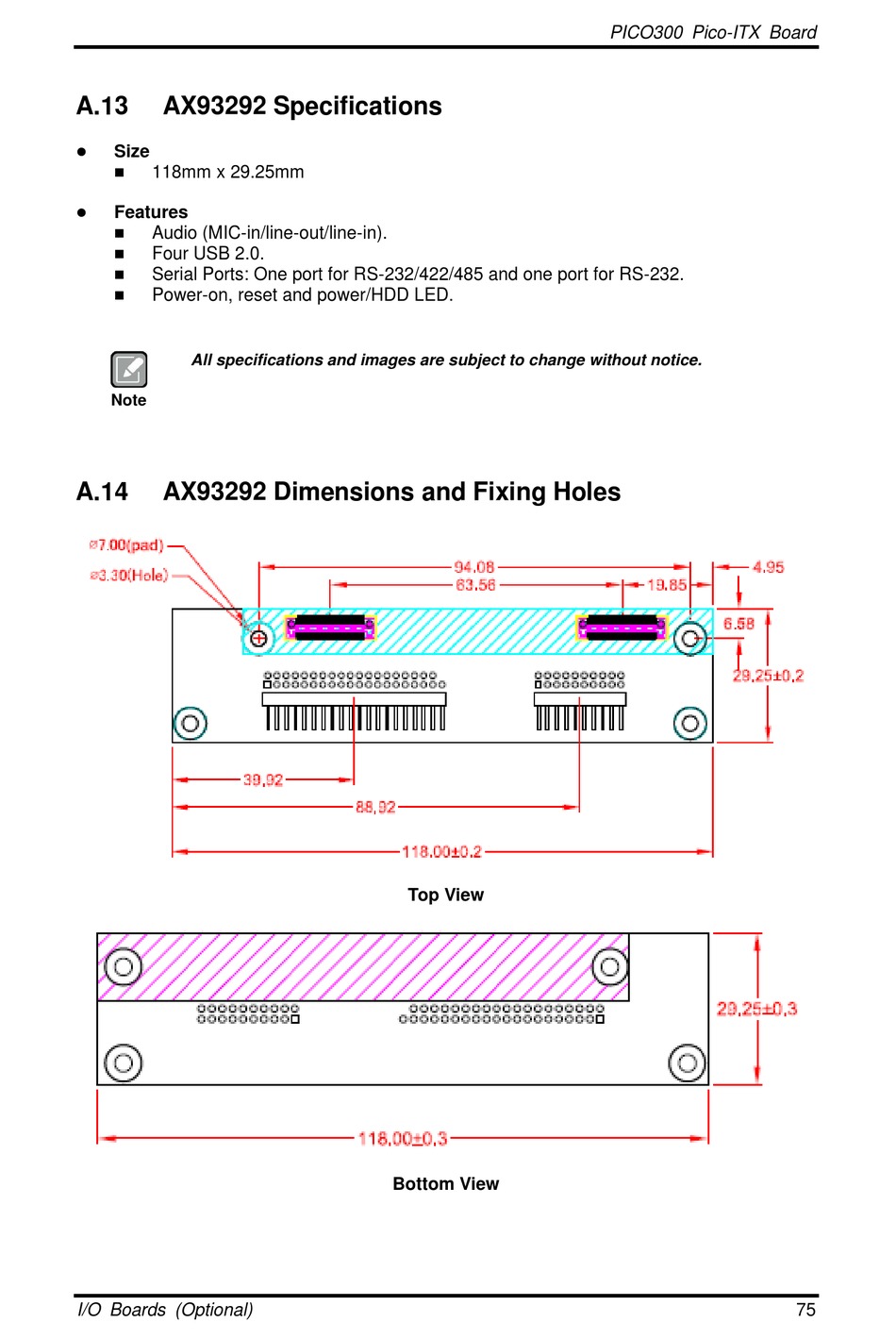

A.14

AX93292 Dimensions and Fixing Holes

I/O Boards (Optional)
Top View
Bottom View
