Boot Menu - AXIOMTEK PICO300 User Manual

4.7

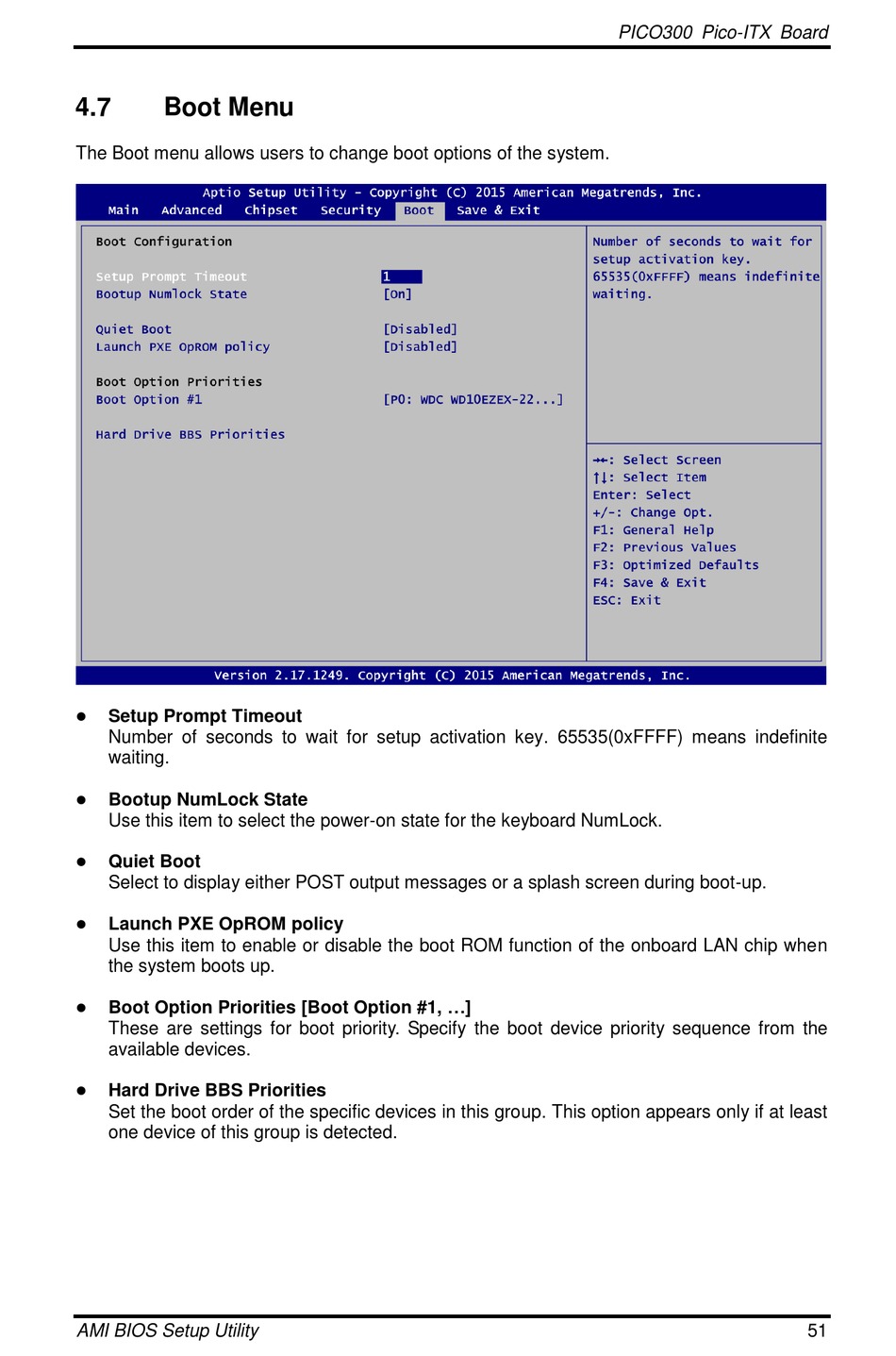

Boot Menu

The Boot menu allows users to change boot options of the system.
 Setup Prompt Timeout
Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite
waiting.
 Bootup NumLock State
Use this item to select the power-on state for the keyboard NumLock.
 Quiet Boot
Select to display either POST output messages or a splash screen during boot-up.

Launch PXE OpROM policy
Use this item to enable or disable the boot ROM function of the onboard LAN chip when
the system boots up.
Boot Option Priorities [Boot Option #1, ...]

These are settings for boot priority. Specify the boot device priority sequence from the
available devices.
 Hard Drive BBS Priorities
Set the boot order of the specific devices in this group. This option appears only if at least
one device of this group is detected.
AMI BIOS Setup Utility
PICO300 Pico-ITX Board
51
