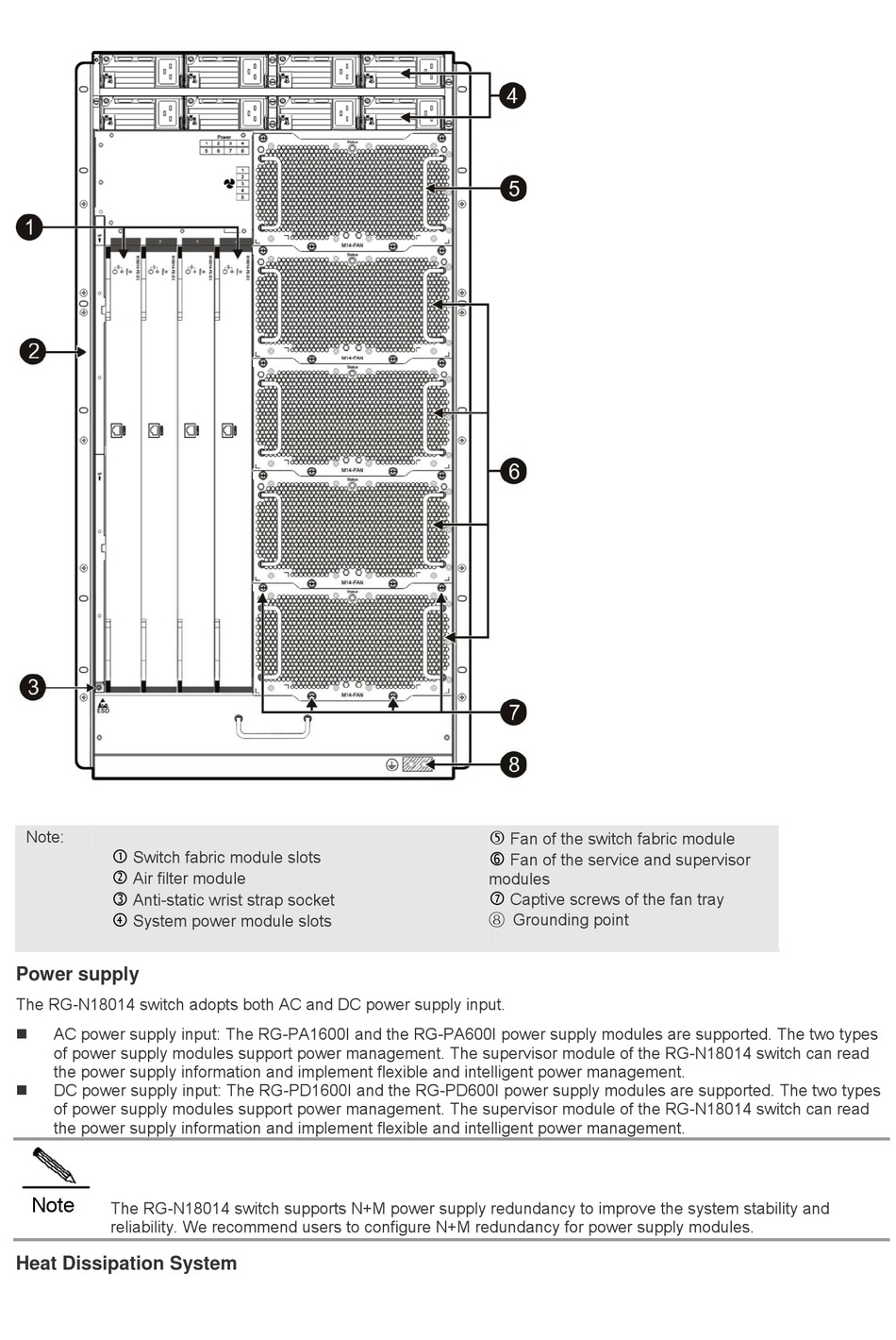

Note:
Switch fabric module slots
Air filter module
Anti-static wrist strap socket
System power module slots
Power supply
The RG-N18014 switch adopts both AC and DC power supply input.
AC power supply input: The RG-PA1600I and the RG-PA600I power supply modules are supported. The two types
of power supply modules support power management. The supervisor module of the RG-N18014 switch can read
the power supply information and implement flexible and intelligent power management.
DC power supply input: The RG-PD1600I and the RG-PD600I power supply modules are supported. The two types
of power supply modules support power management. The supervisor module of the RG-N18014 switch can read
the power supply information and implement flexible and intelligent power management.
The RG-N18014 switch supports N+M power supply redundancy to improve the system stability and
reliability. We recommend users to configure N+M redundancy for power supply modules.
Heat Dissipation System
Fan of the switch fabric module
Fan of the service and supervisor
modules
Captive screws of the fan tray
Grounding point
⑧
