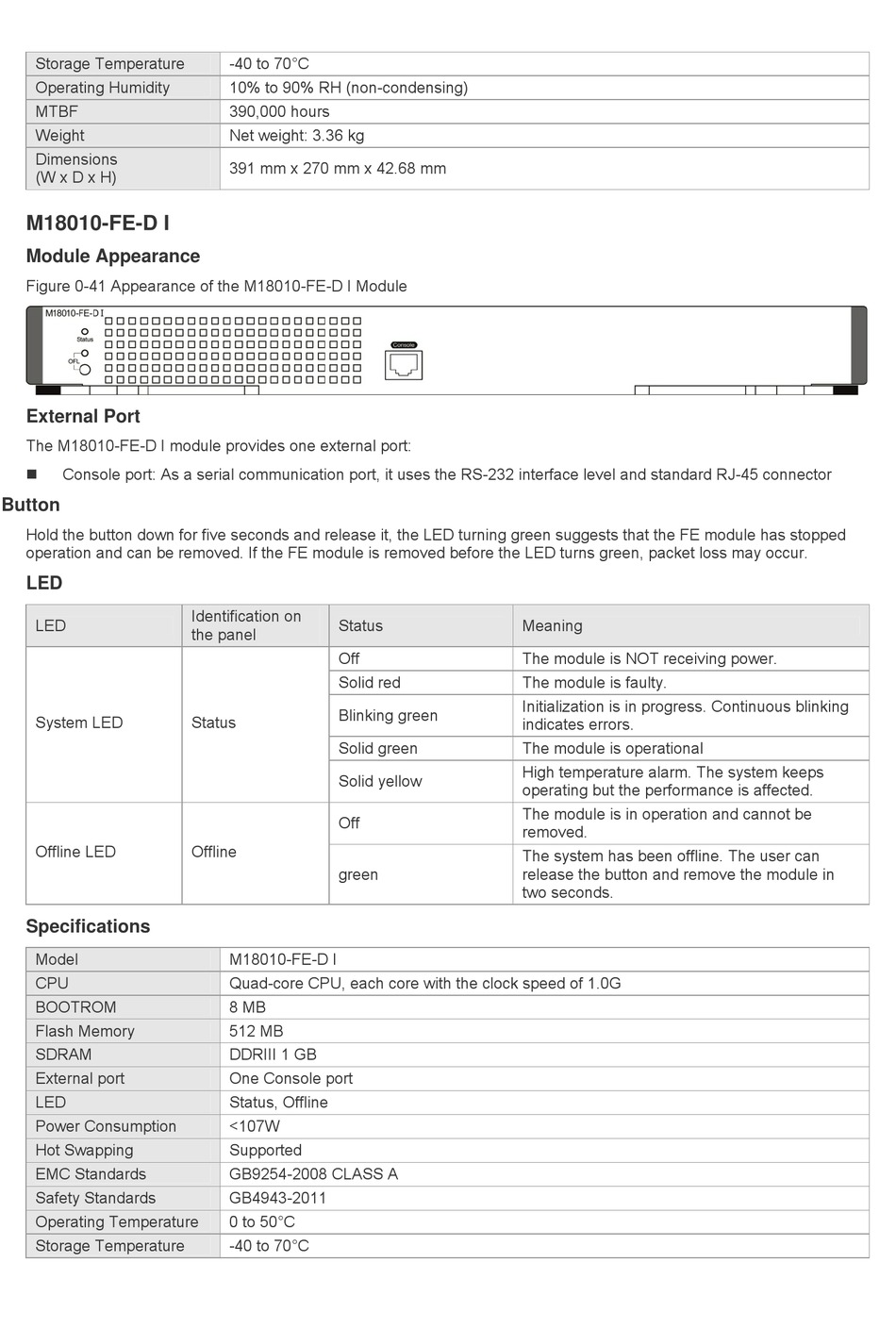

Ruijie Networks RG-N18014 Hardware Installation And Reference Manual page 56

Storage Temperature
Operating Humidity
MTBF
Weight
Dimensions
(W x D x H)
M18010-FE-D I
Module Appearance
Figure 0-41 Appearance of the M18010-FE-D I Module
External Port
The M18010-FE-D I module provides one external port:
 Console port: As a serial communication port, it uses the RS-232 interface level and standard RJ-45 connector
Button
Hold the button down for five seconds and release it, the LED turning green suggests that the FE module has stopped
operation and can be removed. If the FE module is removed before the LED turns green, packet loss may occur.
LED
LED
System LED
Offline LED
Specifications
Model
CPU
BOOTROM
Flash Memory
SDRAM
External port
LED
Power Consumption
Hot Swapping
EMC Standards
Safety Standards
Operating Temperature
Storage Temperature
-40 to 70°C
10% to 90% RH (non-condensing)
390,000 hours
Net weight: 3.36 kg
391 mm x 270 mm x 42.68 mm
Identification on
Status
the panel
Off
Solid red
Blinking green
Status
Solid green
Solid yellow
Off
Offline
green
M18010-FE-D I
Quad-core CPU, each core with the clock speed of 1.0G
8 MB
512 MB
DDRIII 1 GB
One Console port
Status, Offline
<107W
Supported
GB9254-2008 CLASS A
GB4943-2011
0 to 50°C
-40 to 70°C
Meaning
The module is NOT receiving power.
The module is faulty.
Initialization is in progress. Continuous blinking
indicates errors.
The module is operational
High temperature alarm. The system keeps
operating but the performance is affected.
The module is in operation and cannot be
removed.
The system has been offline. The user can
release the button and remove the module in
two seconds.
