Removing, Cleaning and Installing Air Filter

After the air filter is used for a long time, the dust may block the holes on the air filter, affecting heat
dissipation and ventilation. It is recommended that the air filter be cleaned every three months.

Removing, Cleaning and Installing Air Filters for Supervisor and Service Modules

 Install and remove the air filter of RG-N18014 supervisor and service modules:
1) Loosen the captive screws on the air filter.
2) Remove the air filter.
3) Insert the air filter along the slide rail. Pay attention to the direction instruction on the air filter.
4) Tighten the screws on the air filter with a screwdriver.

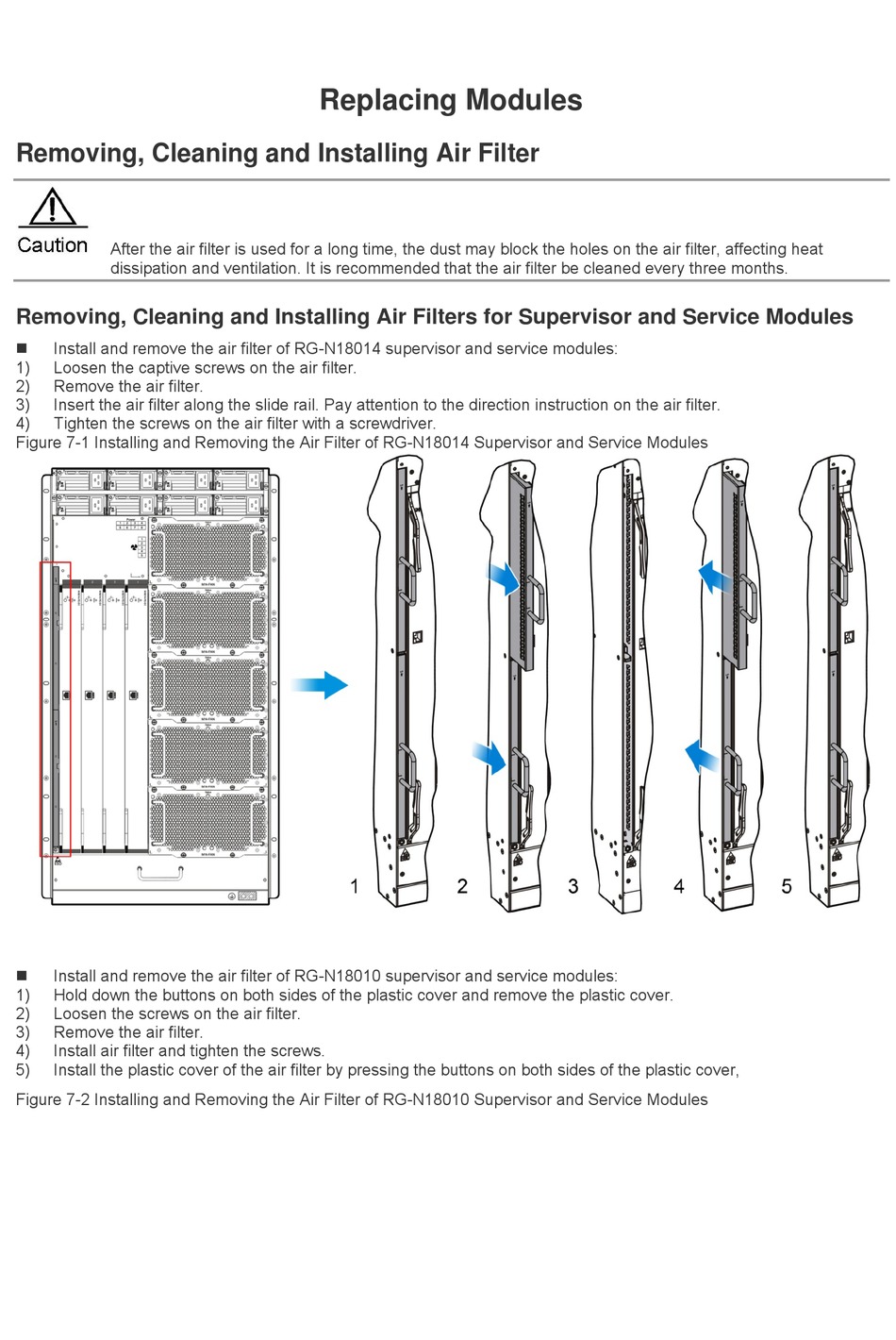

Figure 7-1 Installing and Removing the Air Filter of RG-N18014 Supervisor and Service Modules
 Install and remove the air filter of RG-N18010 supervisor and service modules:
1) Hold down the buttons on both sides of the plastic cover and remove the plastic cover.
2) Loosen the screws on the air filter.
3) Remove the air filter.
4) Install air filter and tighten the screws.
5) Install the plastic cover of the air filter by pressing the buttons on both sides of the plastic cover,
Figure 7-2 Installing and Removing the Air Filter of RG-N18010 Supervisor and Service Modules
