Power Supply; Heat Dissipation System - Ruijie Networks RG-S8605E Hardware Installation And Reference Manual

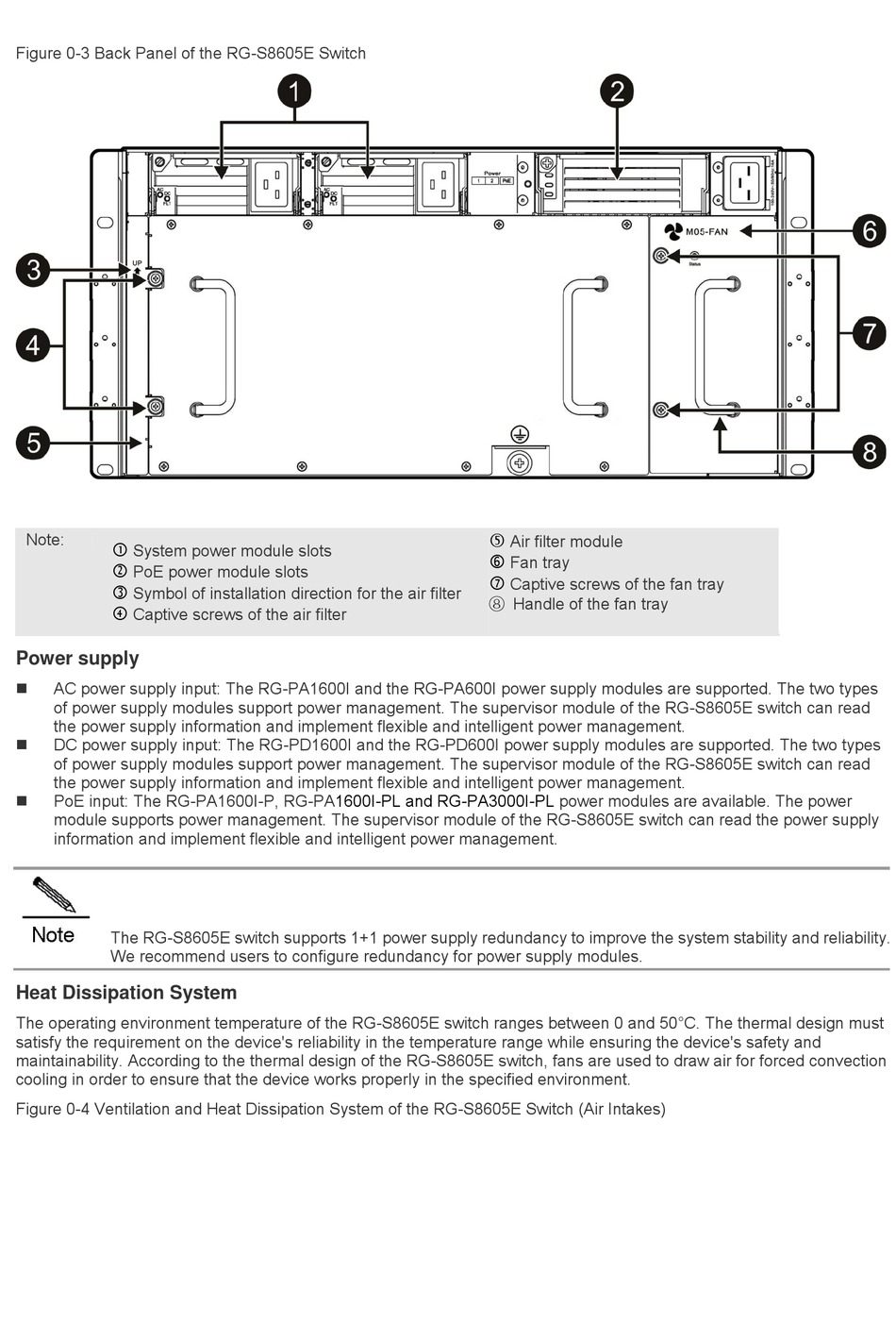

Figure 0-3 Back Panel of the RG-S8605E Switch
Note:

System power module slots

PoE power module slots

Symbol of installation direction for the air filter

Captive screws of the air filter

Power supply

 AC power supply input: The RG-PA1600I and the RG-PA600I power supply modules are supported. The two types
of power supply modules support power management. The supervisor module of the RG-S8605E switch can read
the power supply information and implement flexible and intelligent power management.
 DC power supply input: The RG-PD1600I and the RG-PD600I power supply modules are supported. The two types
of power supply modules support power management. The supervisor module of the RG-S8605E switch can read
the power supply information and implement flexible and intelligent power management.
 PoE input: The RG-PA1600I-P,
module supports power management. The supervisor module of the RG-S8605E switch can read the power supply
information and implement flexible and intelligent power management.
The RG-S8605E switch supports 1+1 power supply redundancy to improve the system stability and reliability.
We recommend users to configure redundancy for power supply modules.

Heat Dissipation System

The operating environment temperature of the RG-S8605E switch ranges between 0 and 50°C. The thermal design must
satisfy the requirement on the device's reliability in the temperature range while ensuring the device's safety and
maintainability. According to the thermal design of the RG-S8605E switch, fans are used to draw air for forced convection
cooling in order to ensure that the device works properly in the specified environment.
Figure 0-4 Ventilation and Heat Dissipation System of the RG-S8605E Switch (Air Intakes)
RG-PA1600I-PL and RG-PA3000I-PL

Air filter module

Fan tray

Captive screws of the fan tray
Handle of the fan tray
⑧
power modules are available. The power
