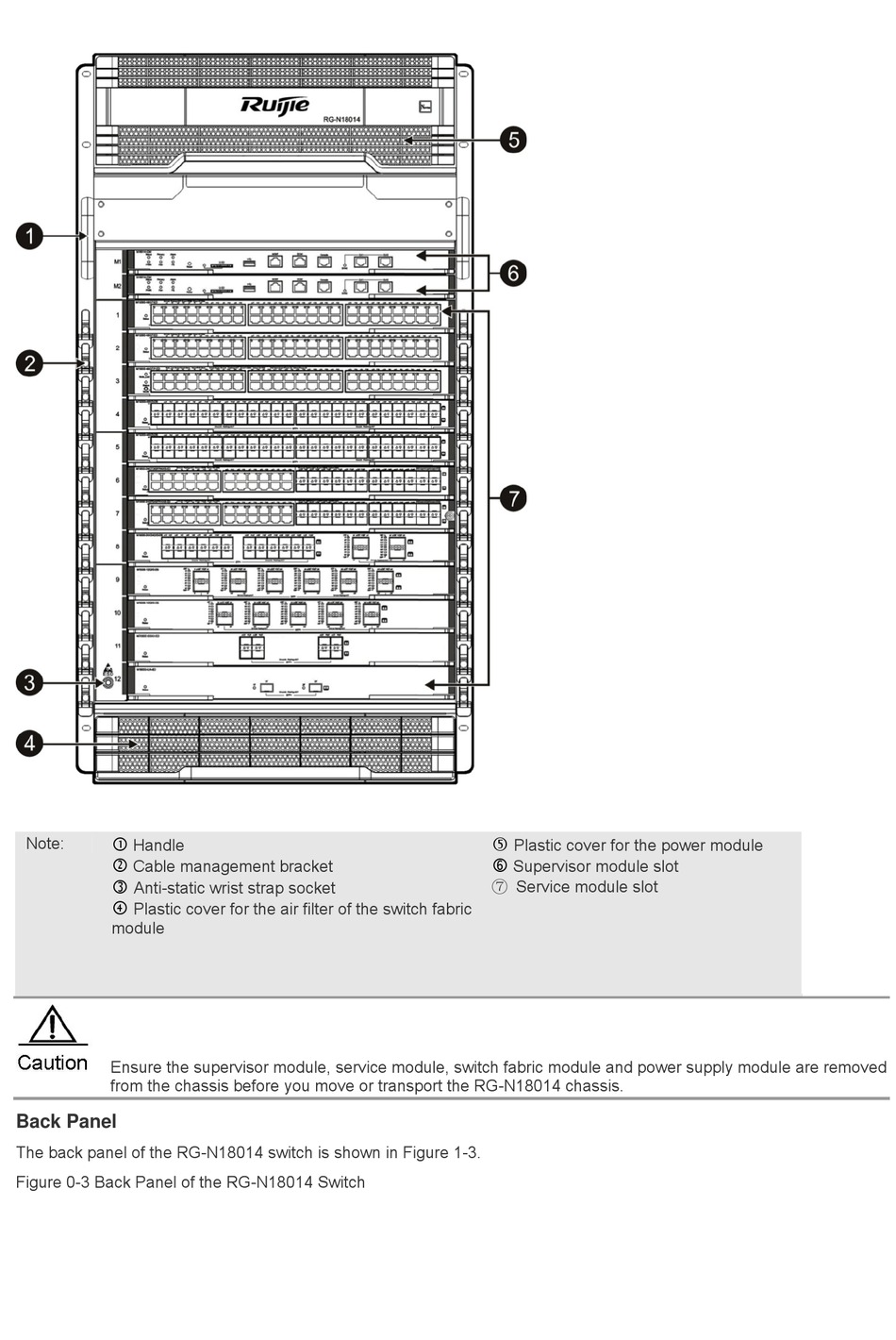

Note:
Handle
Cable management bracket
Anti-static wrist strap socket
Plastic cover for the air filter of the switch fabric
module
Ensure the supervisor module, service module, switch fabric module and power supply module are removed
from the chassis before you move or transport the RG-N18014 chassis.
Back Panel
The back panel of the RG-N18014 switch is shown in Figure 1-3.
Figure 0-3 Back Panel of the RG-N18014 Switch
Plastic cover for the power module
Supervisor module slot
⑦ Service module slot
