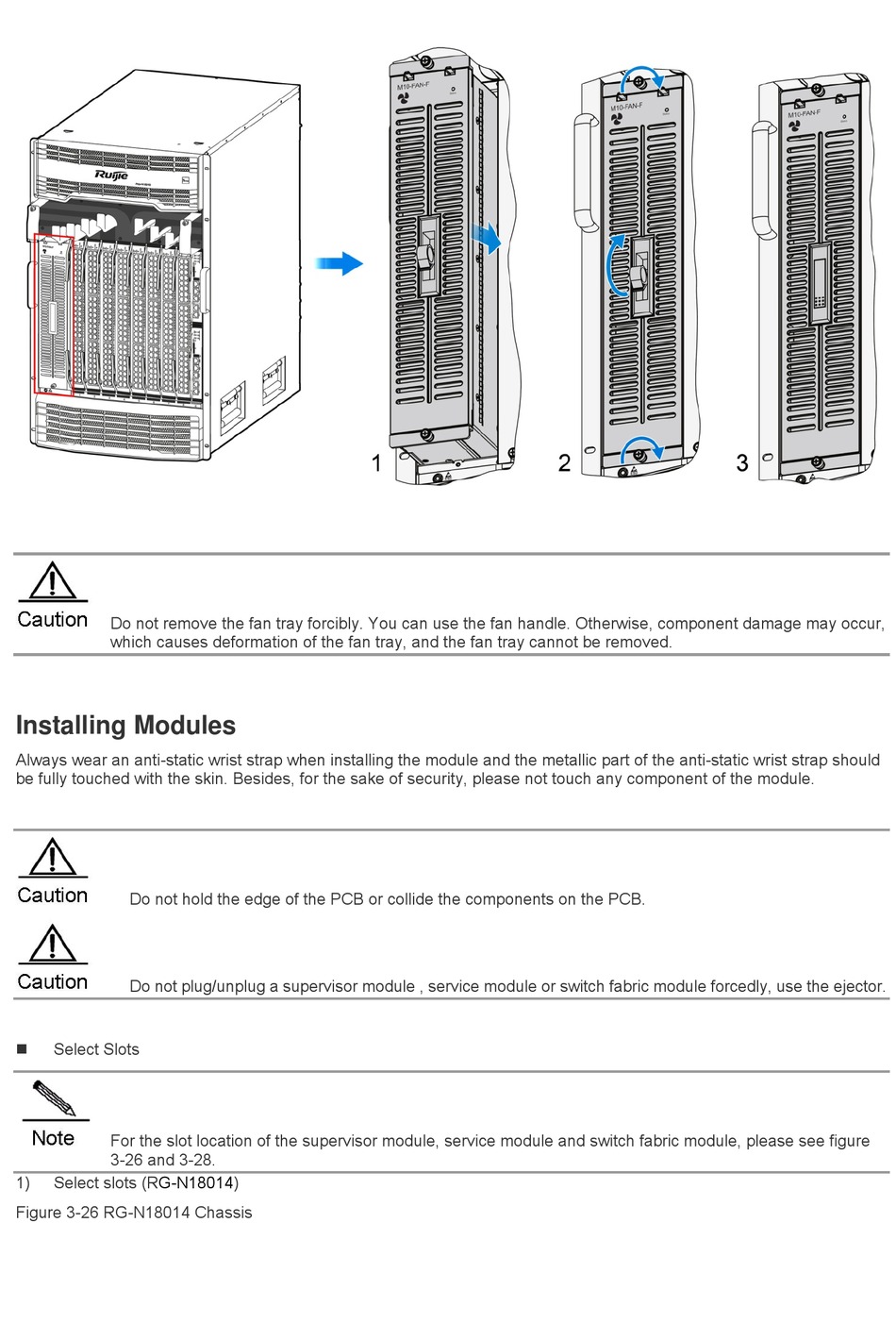

Do not remove the fan tray forcibly. You can use the fan handle. Otherwise, component damage may occur,
which causes deformation of the fan tray, and the fan tray cannot be removed.

Installing Modules

Always wear an anti-static wrist strap when installing the module and the metallic part of the anti-static wrist strap should
be fully touched with the skin. Besides, for the sake of security, please not touch any component of the module.
Do not hold the edge of the PCB or collide the components on the PCB.
Do not plug/unplug a supervisor module , service module or switch fabric module forcedly, use the ejector.
 Select Slots
For the slot location of the supervisor module, service module and switch fabric module, please see figure
3-26 and 3-28.
1) Select slots (RG-N18014)
Figure 3-26 RG-N18014 Chassis
