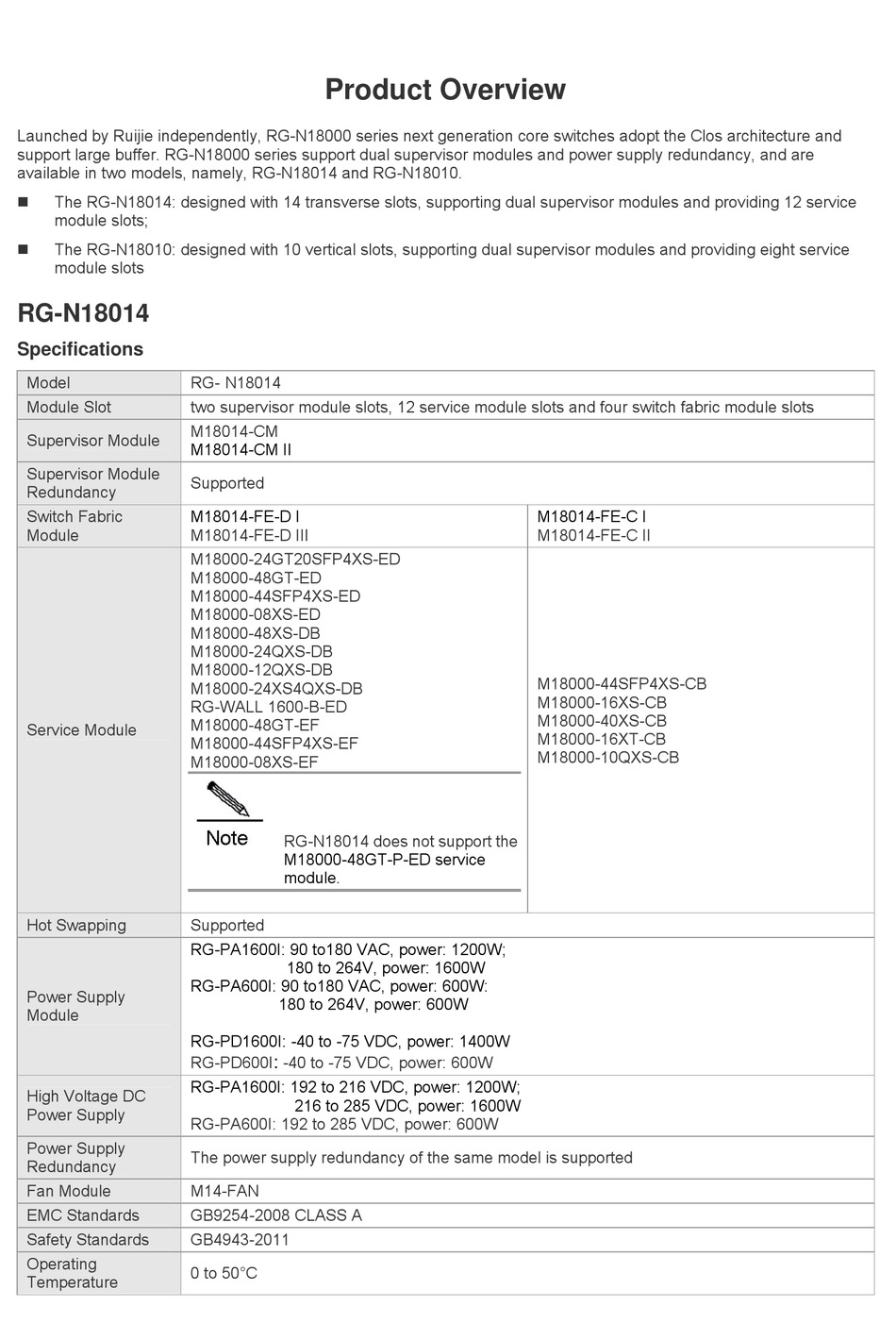

Product Overview; Specifications - Ruijie Networks RG-N18014 Hardware Installation And Reference Manual

Launched by Ruijie independently, RG-N18000 series next generation core switches adopt the Clos architecture and
support large buffer. RG-N18000 series support dual supervisor modules and power supply redundancy, and are
available in two models, namely, RG-N18014 and RG-N18010.
 The RG-N18014: designed with 14 transverse slots, supporting dual supervisor modules and providing 12 service
module slots;
 The RG-N18010: designed with 10 vertical slots, supporting dual supervisor modules and providing eight service
module slots
RG-N18014

Specifications

Model
Module Slot
Supervisor Module
Supervisor Module
Redundancy
Switch Fabric
Module
Service Module
Hot Swapping
Power Supply
Module
High Voltage DC
Power Supply
Power Supply
Redundancy
Fan Module
EMC Standards
Safety Standards
Operating
Temperature

Product Overview

RG- N18014
two supervisor module slots, 12 service module slots and four switch fabric module slots
M18014-CM
M18014-CM II
Supported
M18014-FE-D I
M18014-FE-D III
M18000-24GT20SFP4XS-ED
M18000-48GT-ED
M18000-44SFP4XS-ED
M18000-08XS-ED
M18000-48XS-DB
M18000-24QXS-DB
M18000-12QXS-DB
M18000-24XS4QXS-DB
RG-WALL 1600-B-ED
M18000-48GT-EF
M18000-44SFP4XS-EF
M18000-08XS-EF
RG-N18014 does not support the
M18000-48GT-P-ED service
module.
Supported
RG-PA1600I: 90 to180 VAC, power: 1200W;
180 to 264V, power: 1600W
RG-PA600I: 90 to180 VAC, power: 600W:
180 to 264V, power: 600W
RG-PD1600I: -40 to -75 VDC, power: 1400W
:
RG-PD600I -40 to -75 VDC, power: 600W
RG-PA1600I: 192 to 216 VDC, power: 1200W;
216 to 285 VDC, power: 1600W
RG-PA600I: 192 to 285 VDC, power: 600W
The power supply redundancy of the same model is supported
M14-FAN
GB9254-2008 CLASS A
GB4943-2011
0 to 50°C
M18014-FE-C I
M18014-FE-C II
M18000-44SFP4XS-CB
M18000-16XS-CB
M18000-40XS-CB
M18000-16XT-CB
M18000-10QXS-CB
