System status LED
Expansion module 1 status LED
Expansion module 2 status LED
Power module 1 status LED
Power module 2 status LED
PoE status LED
Copper port status LED
To ensure successful mode switch, press the PoE Mode Switch-Over button for 2 seconds or longer.
Back Panel

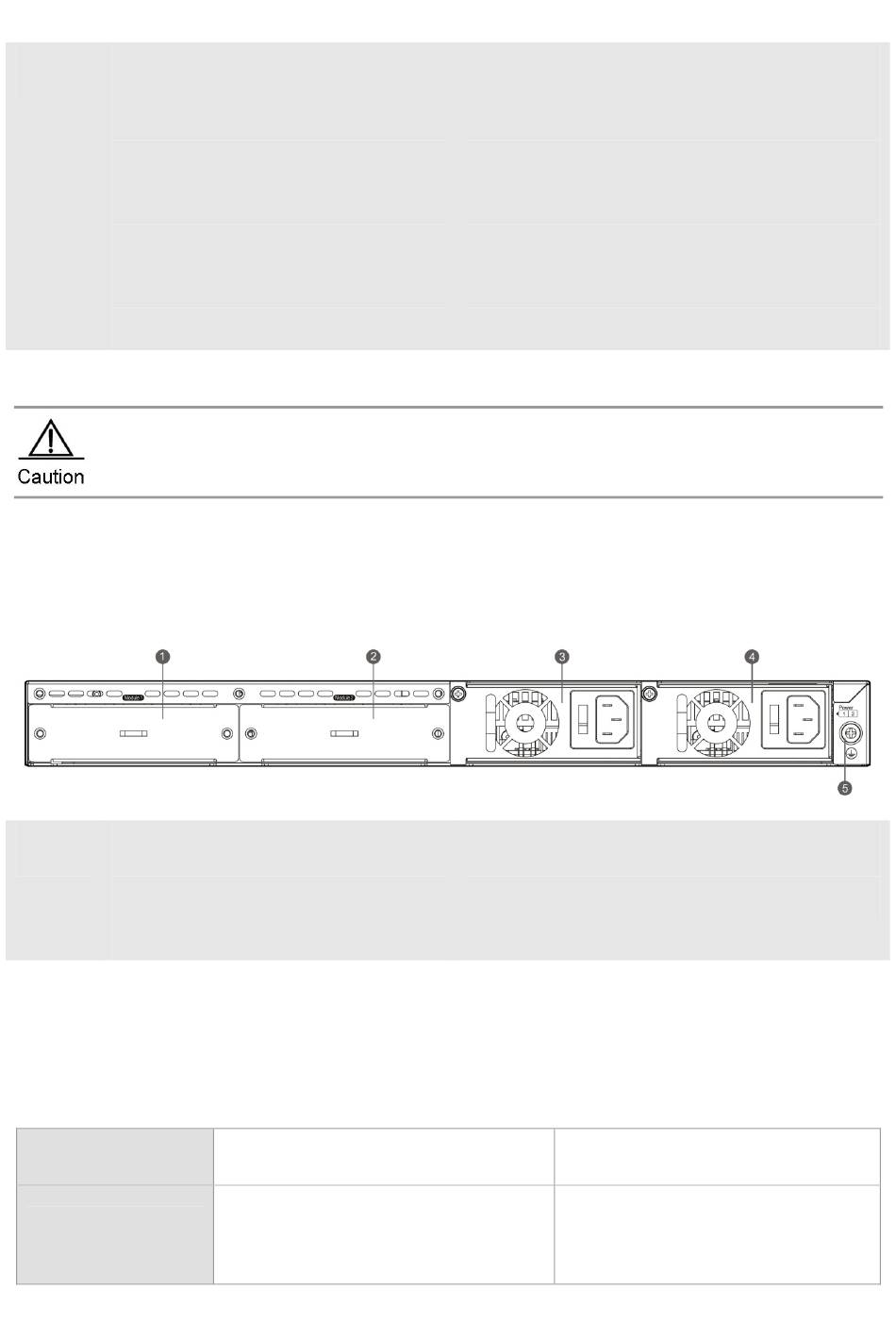

Figure 1-3 Back Panel of RG-S2910C-24GT2XS-HP-E
Note:
Expansion module 1 slot
Expansion module 2 slot
Power module 1 slot
Power Supply
The RG-S2910C-24GT2XS-HP-E supports two power modules with AC or DC input. For the detailed power specification,
see the following tables.
Model
Platform
RG-M5000E-AC500P
RG-S2910C-24GT2XS-HP-E
RG-S2910C-48GT2XS-HP-E
Fiber port status LED
PoE mode switch-over button
Console port
USB port
10/100/1000Base-T auto-sensing Ethernet port
100/1000Base-X SFP port
SFP+ port
Power module 2 slot
Grounding pole
RG-M5000E-AC500P (HVDC)
RG-S2910C-24GT2XS-HP-E
RG-S2910C-48GT2XS-HP-E
