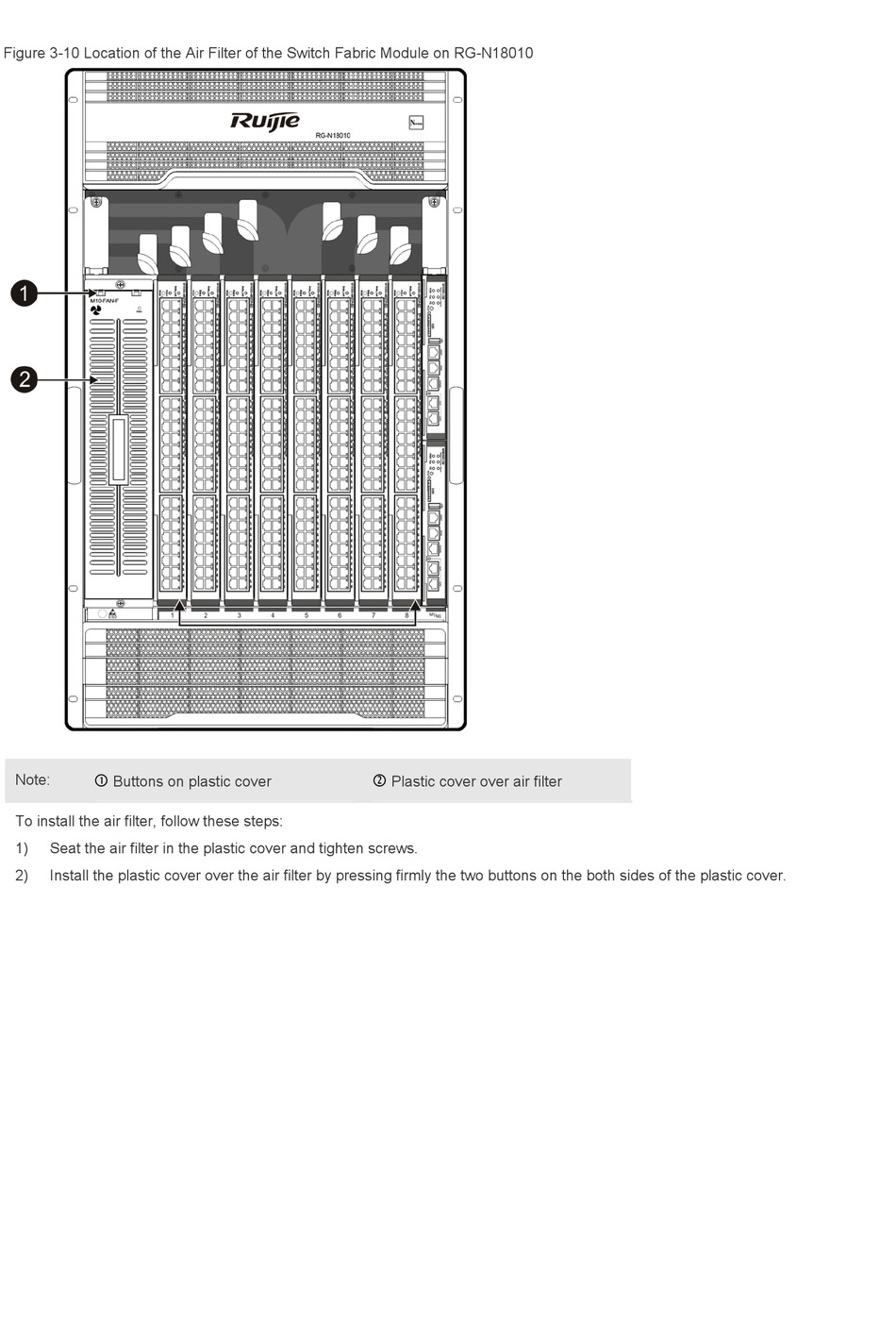

Figure 3-10 Location of the Air Filter of the Switch Fabric Module on RG-N18010
Note:
Buttons on plastic cover
To install the air filter, follow these steps:
1)
Seat the air filter in the plastic cover and tighten screws.
2)
Install the plastic cover over the air filter by pressing firmly the two buttons on the both sides of the plastic cover.
Plastic cover over air filter
